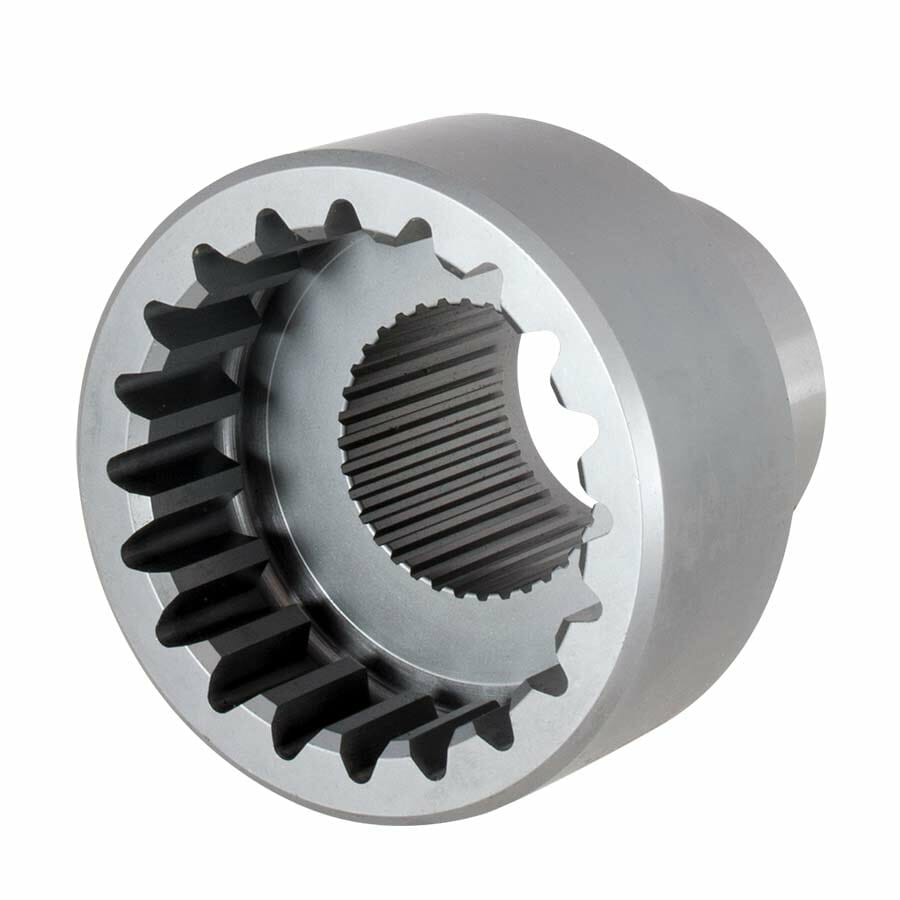

9″ Ford Female Rear End Coupler                                                                       Fits Ford 9″ 35 Spline Pinion Gear and Solid 35 Spline Driveshafts

/, 9" Center Sections & Parts, Pinion Couplers, Driveshafts / Components, Couplers / Sleeves, Ford, Ford, 9" Center Sections & Parts, 9" Center Sections & Parts, Pinion Couplers/

9″ Ford Female Rear End Coupler                                                                       Fits Ford 9″ 35 Spline Pinion Gear and Solid 35 Spline Driveshafts

9″ Ford Female Rear End Coupler                                                                       Fits Ford 9″ 35 Spline Pinion Gear and Solid 35 Spline Driveshafts

$159.00

Part Number: U3629

Application
Ford 9″ using 35 spline pinion gear
Can be used with solid driveshafts

Inner Spline
35 spline – 30 degree pressure angle

Outer Spline
20 spline – Mates with most aftermarket male couplers

Overall Length – 3.120″

Description

9″ Ford female rear end coupler / 35 spl.

Additional information

Weight 2.30 lbs
