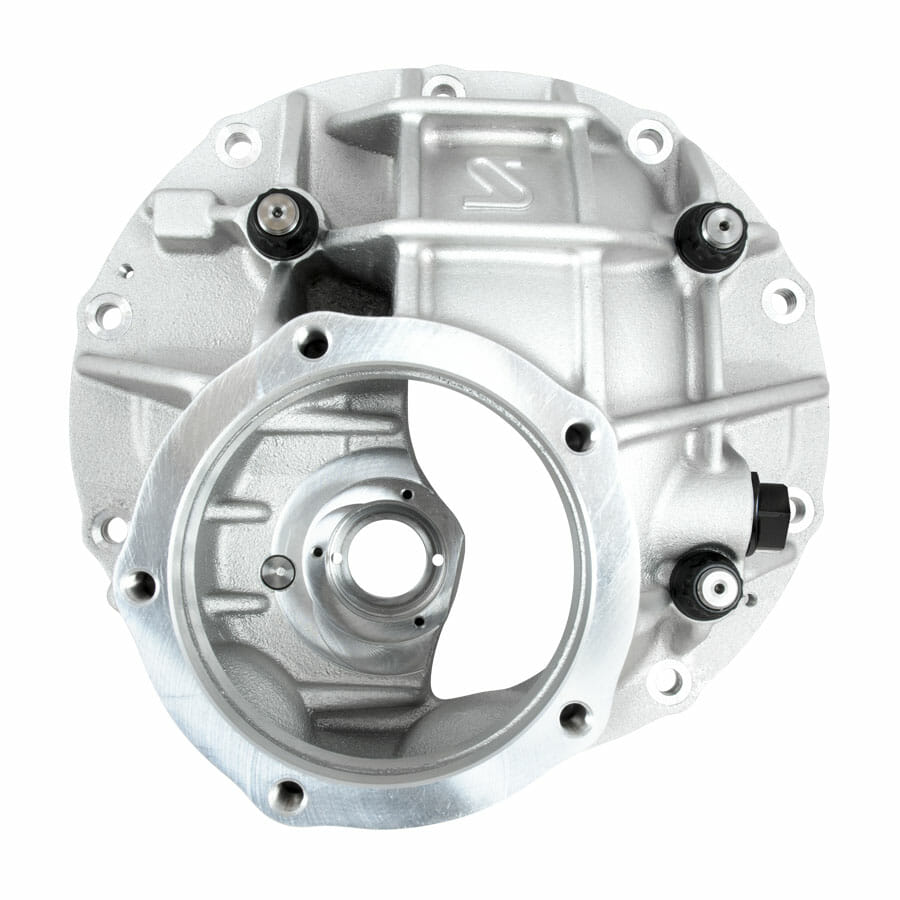

Strange HD Pro Aluminum Case - 3.062" Bore Size

Call for Price

Part Number: N2300


Application
For heavy, high horsepower, or Street & Strip vehicle

Differentials
28 & 31 spline

Spools
28, 31, & 33 spline

This Case Uses A Special Strange Pinion Support
It is made specifically for this case
Also requires a larger tail bearing

Any Other Support Will Not Fit

Features
• Manufactured from 206-T4 heat treated aluminum
• 12% higher yield and 32% higher tensile strength compared to 356-T6
• Large oil channel provides optimal lubrication to pinion bearings
• Heavily reinforced tail bearing area
• Chrome moly studs encapsulated by billet aluminum main caps
• Solid adjuster nuts
• Accepts over-sized tail bearing for heavy loads and high RPM
• Designed for 9″ or 9 1/2″ gear sets

Related Components
Pinion support…………… N2322 / N2323
Tail bearing…………….. N1943
3.250″ case……………… N2303

Description

Strange 9″ HD Pro Aluminum Case- 3.062″ bore

Guidelines and Torque spec
