Strange Ultra Case and Support Package 3.812" Bore Case & Tapered Bearing Support With Installation Kit For 10" Pro Gears

$1,395.00

Part Number: P3812LT-10

Applications
Pro Mod
Alcohol Funny Car
Top Dragster
Drag Radial
Outlaw 632
Radial vs The World

Additional Parts Required
Strange HD 40 spline spool
10″ Pro gear set
35 spline yoke or coupler
Gasket

This Case & 10″ Gear Set May Not Fit Your Housing
Please refer to clearance diagrams

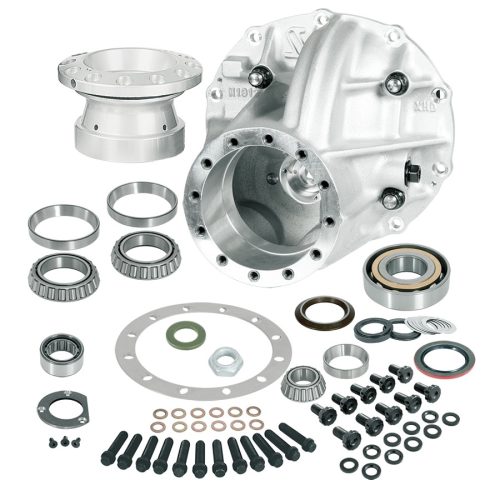

Package Includes
N1912
• Ultra Case 3.812″ bore
• 206-T4 aluminum
• Extra large oil channel
• Critical areas heavily reinforced
• Billet aluminum main caps
• Solid steel adjuster nuts
• Designed & machined by Strange
• Cast in the USA

N1950AD
• 6061-T6511 billet aluminum tapered bearing support
• Tapped for 5/16″-24 sensor in two locations
• Eliminates need for 10″ gear spacer
• Clear anodized finish

Remaining Components
• Timken® front and rear pinion bearings & races
• One piece solid preload spacer – Machine to fit
• Rear bearing shim
• Pinion depth shim kit
• Support bolts, washers, and o-ring
• Pinion seal & flanged locking nut
• Oversize tail bearing with retainer plate and screws
• Timken® side bearings and races
• ARP 7/16″ & 1/2″ ring gear bolts

Related Components
HD 40 spline spool…………………….. D2002
Load bolt…………………………………… N1910H
Yoke / Coupler…………………….. U1604 / U3629
Gasket………………………………… H1111 / H1111S

This product is only available from an Authorized Strange Dealer or Factory Direct Call - 800-646-6718 or Email Us

Description

3.812″ Bore Ultra Case Package With Tapered Bearing Support Using 10″ Gear Set

Guidelines and Torque spec
