Strange Ultra Case and Support Package Lightened 3.812" Bore Case & Taper / Ball Bearing Support Includes Installation Kit For 9" or 9 1/2" 28 Spline Pro Gears

$1,764.00

Part Number: P3812SB

Applications
Pro Stock
Lightweight high horsepower vehicles

Additional Parts Required
Strange HD 40 spline spool
9″ or 9 1/2″ Pro gear set
28 spline yoke or coupler
Gasket

This Case May Not Fit Your Housing
Please refer to housing clearance diagram

Using 9 1/2″ Gear Set ?
Also check gear diagram

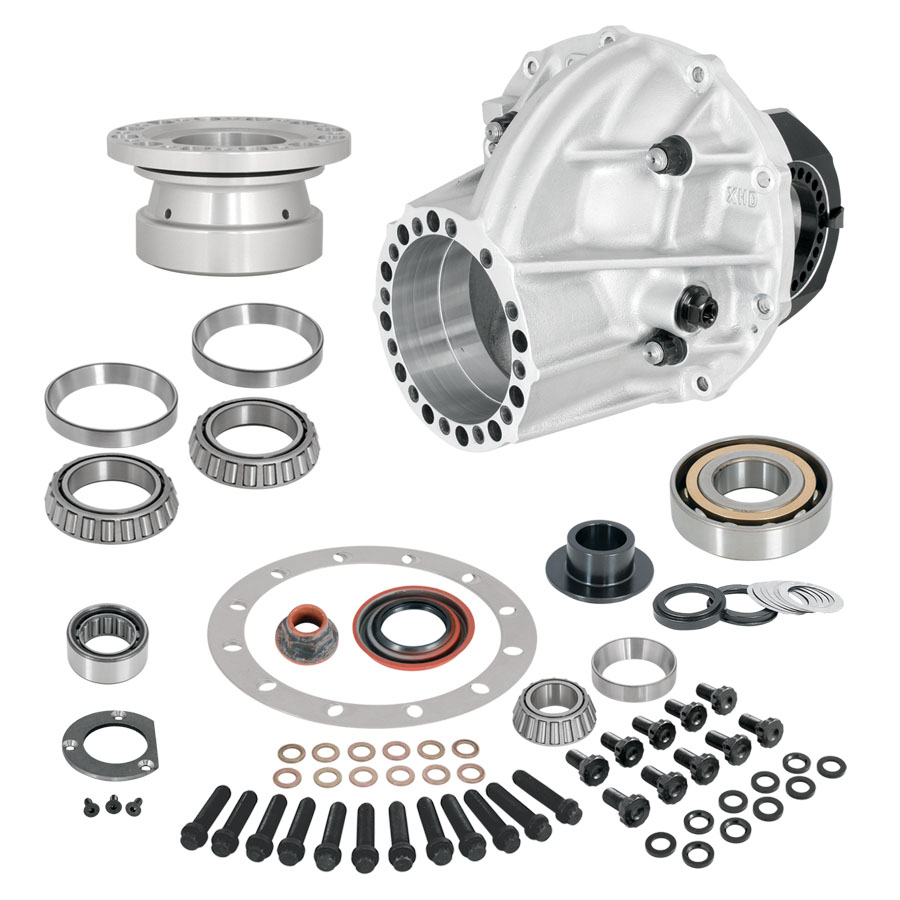

Package Includes
N1912PS
• Lightened Ultra Case 3.812″ bore
• 206-T4 aluminum
• Extra large oil channel
• Critical areas heavily reinforced
• Lightened billet aluminum main caps
• Solid steel adjuster nuts
• Designed & machined by Strange
• Cast in the USA

N1952A
• 6061-T6511 billet aluminum taper / ball support
• Lightened
• Clear anodized finish

Remaining Components
• Timken® front pinion bearing & race
• Angular contact low friction rear pinion bearing
• Two piece adjustable preload spacer
• Rear bearing adapter collar / spacer
• Pinion depth shim kit
• Support bolts, washers, and o-ring
• Low friction pinion seal & flanged locking nut
• Oversize tail bearing with retainer plate and screws
• Timken® side bearings and races
• ARP 7/16″ ring gear bolts

Related Components
HD 40 spline spool……………… D2002 / D2004
Load bolt……………………… N1910H
Yoke / Coupler…………………. U1603 / U3627
Gasket………………………… H1111 / H1111S
Computer sensor bracket…………. N1952S

Additional Packages
With tapered bearing support…….. P3812ST
For 35 spline pinion……………. P3812LB / P3812LBHD

Description

L/W Ultra Case package with 3.812″ case ball bearing support for 28 spline pinion

Guidelines and Torque spec
