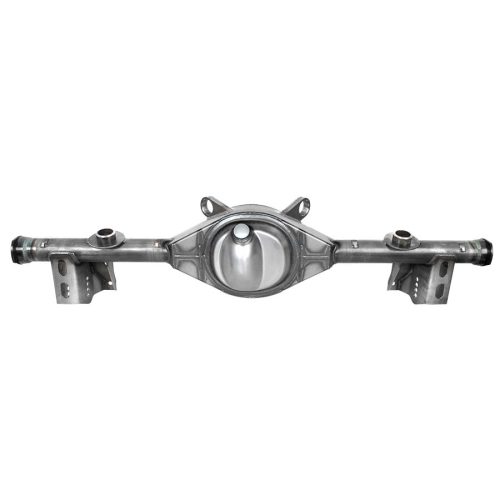

Strange Ultra Fab 9" Housing Bolt-in For 2005-2014 Mustang Includes Mounts, Ends, Fill, Drain, & Vent

$1,795.00

Part Number: HF9M05MEUF

Application – 2005-2014 Mustang

DOMEX 100XF Material
• Extra high strength cold formed steel
• Utilized in top tier NASCAR housings
• Equivalent strength of chromoly
• Less prone to fatigue cracking than chromoly
• Highly ductile in the weld zone affected by heat
• Low carbon easily MIG or TIG welded

Features

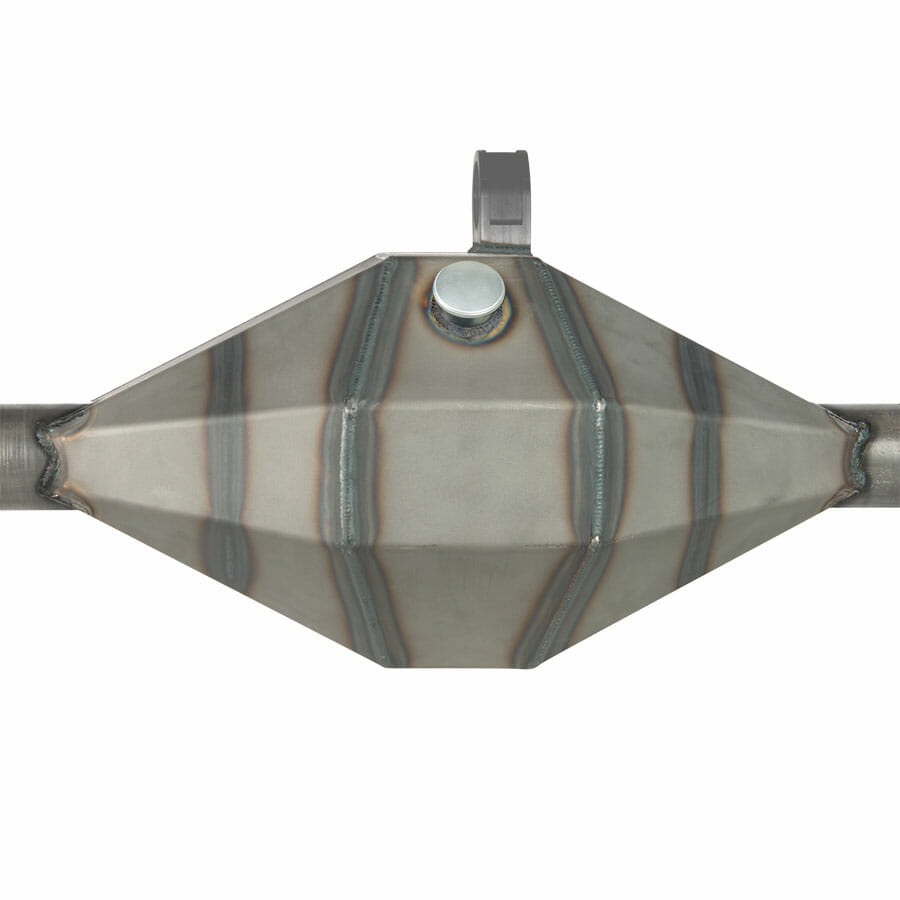

• Triangulated Ridge Design
• Constructed From .125″ material
• Heavy Duty .375″ Face Plate
• Internal Radial Gusset Plates
• Tube locations Slotted & Welded For 5″
• Clearance Provided For Cases With HD Main Caps
• Housing Will Accept 9″, 9 1/2″, or 10″ Development Gear Sets

Fill & Drain plugs – H1116 / H1117D
• Facilitate fluid changes
• Allows for inspection of ring gear

Housing Tubing – H1141
• DOM 1026 steel
• 3.250″ OD x .250″ wall thickness

Vent – H1112B
• Prevents build-up of internal pressure
• Ensures sealing integrity

2005-2014 Mustang Mounts
• Strange HD upper control arm mounts
• Lower control arm mounts with multiple hole locations

Choice of Housing Ends – H1138 / H1137
• Forged chrome moly
• Accept 3.150″ bearings
• Other Strange ends are available

Professionally Welded
• Jig welded to ensure proper alignment
• Tubes internally & externally welded to housing
• Provides maximum support & rigidity

Custom Widths Available At No Additional Charge

Note
Upper mount is moved forward .400″ and upward .400″
Aftermarket adjustable upper control arm must be used

Pinion offset is .125″ to passenger side

Information Required
Type of housing ends
Housing width

Options
Powder coat housing… H1199P-BLK
Install back brace…………. H1128N

Related Components
Gasket
Lube Locker……………….. H1111S

Axle Packages
Alloy 35…………………. P3502 / P350258
Pro Race 35…………… P1007 / P100758
Pro Race 40…………… P1016 / P1014

See Our Full Line of Center Sections
Available for Drag Race Only, Street / Track, and Performance Street Vehicles

This product is only available from an Authorized Strange Dealer or Factory Direct Call - 800-646-6718 or Email Us

Description

Strange Ultra Fab 9″ Housing W/Mounts, Ends, Fill & Drain / 05-14 Mustang
