Strange Ultra Fab 9" Housing Bolt-in For 1979-2004 Mustang Includes Mounts, Ends, Fill, Drain, & Vent

$1,985.00

Part Number: HF9M86MEUF

Application
1979-2004 Mustang
Custom widths available at no additional charge

Pinion Offset – .625″ To The Passenger Side
Same as OEM 8.8 housing

Information Required
Type of housing ends
Housing width

100XF Material
• Extra high strength cold formed steel
• Utilized in top tier NASCAR housings
• Equivalent strength of chromoly
• Less prone to fatigue cracking than chromoly
• Highly ductile in the weld zone affected by heat
• Low carbon easily MIG or TIG welded

Features
• Triangulated Rigid Design
• Constructed From .125″ material
• Heavy Duty .375″ Face Plate
• Internal Radial Gusset Plates
• Tube locations Slotted & Welded For 5″
• Clearance Provided For Cases With HD Main Caps
• Housing Will Accept 9″, 9 1/2″, or 10″ Development Gear Sets

Fill & Drain plugs – H1116 / H1117D

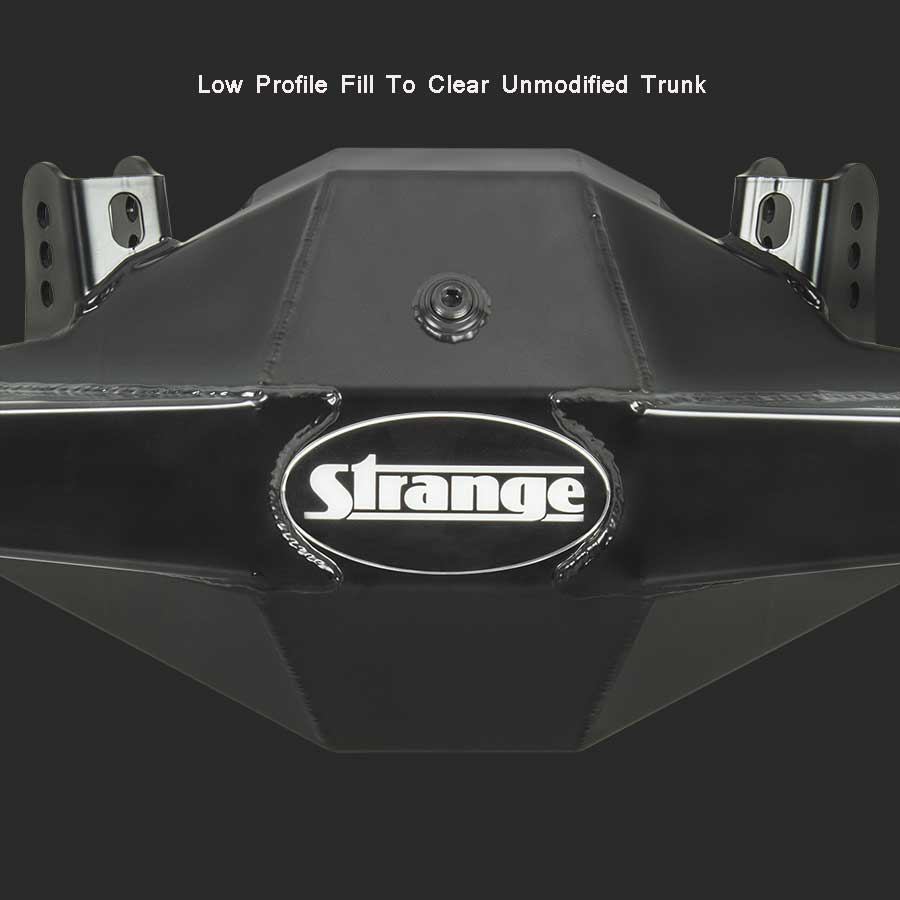

• Choice of Low Profile or Standard fill plug  *
• Facilitate fluid changes
• Allows for inspection of ring gear

* Standard fill plug requires modification of trunk for clearance

Housing Tubing – H1141
• DOM 1026 steel
• 3.250″ OD x .250″ wall thickness

Vent – H1112B
• Prevents build-up of internal pressure
• Ensures sealing integrity

Multiple Upper Control Arm Mounting Holes/  *
• .750″ between holes
• Center hole is in factory location
• 1.665″ inner ear width

* Requires Aftermarket Arms Using Rod Ends
Racecraft® #327430 or equivalent

Multiple Lower Control Arm Mounting Holes
• Provides additional chassis tuning abilities

Adjustable Shock Mounts
• 6 positions with .375″ increments
• 1.875″ of adjustment
• Allows ride height adjustments without affecting stroke

Choice of Housing Ends – H1138 / H1137
• Forged chrome moly
• Accept 3.150″ bearings
• Other Strange ends are available

Professionally Welded
• Jig welded to ensure proper alignment
• Tubes internally & externally welded to housing
• Provides maximum support & rigidity

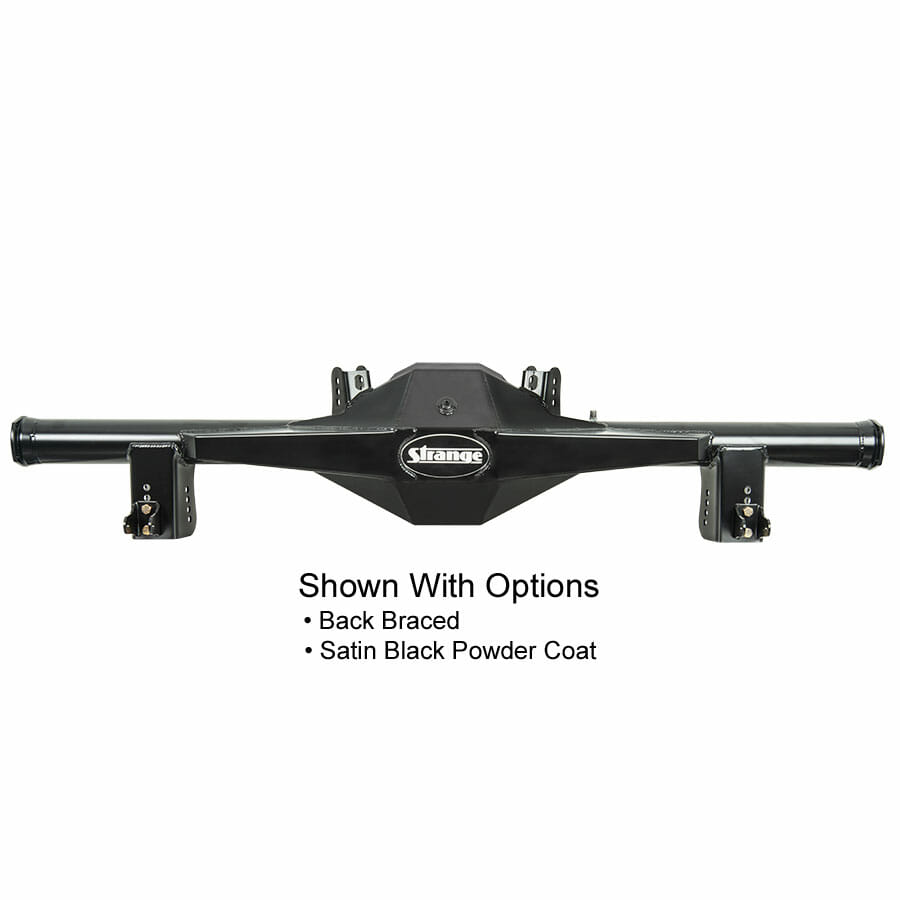

Options
Powder coat housing… H1199P-BLK
Install back brace…………. H1128N

Related Components
Gasket
Lube Locker……………….. H1111S

Axle Packages
Alloy 35…………………. P3502 / P350258
Pro Race 35…………… P1007 / P100758
Pro Race 40…………… P1016 / P1014

See Our Full Line of Center Sections
Available for Drag Race Only, Street / Track, and Performance Street Vehicles

This product is only available from an Authorized Strange Dealer or Factory Direct Call - 800-646-6718 or Email Us

Description

Ultra Fab Ford 9 in Rear End for 79-04 Mustang with Mounts, Ends, Fill, Drain, & Vent.

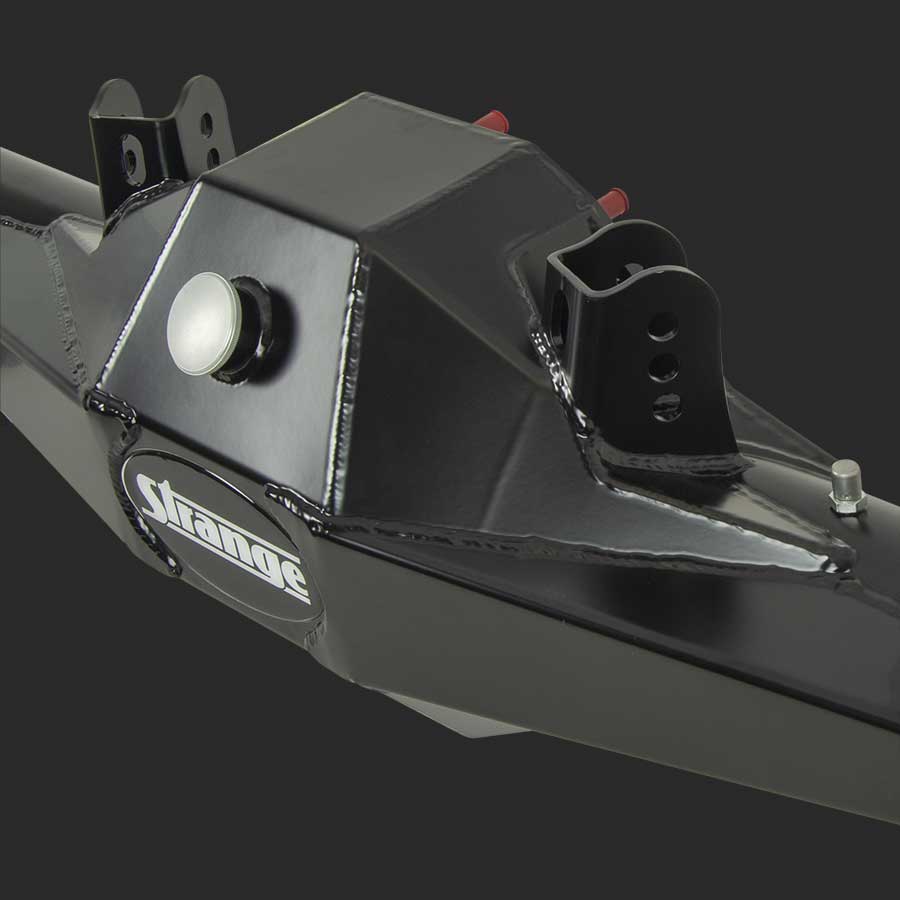

Ultra Fabricated housing centers are constructed from .125” alloy steel with a heavy duty .375” face plate. Triangulated design provides rigid housing tube support for more consistent and straighter launches. Internal radial gusset plates brace end of housing tube and increase overall housing stiffness. Tube insertion locations are slotted for 5” to allow complete and secure welding of the tubes to the housing. The housing is designed to provide the clearance necessary for cases with heavy duty main caps and also allowing the use of 9”, 9 1/2”, or 10” gear sets. Both housing centers come equipped with center section studs installed.

The housing is fitted with fill and drain plugs, tubed with .250” wall, 3 1/4” mild steel tubing, and choice of mounts and housing ends. This configuration is the safest way to maintain the proper alignment of the housing ends. The fixturing and welding of the housing ends is always our last operation. For vehicles that will see very hard launches, there is an option to weld a back brace along the rear of the housing. It is designed to eliminate housing and tube flex that can occur under harsh conditions. An optional satin black powder coat finish is also available.
