Strange HD 9″ Ford Housing                                                                                   Bolt-in For 2005-2014 Mustang                                                                             Complete With  Mounts & Ends

/, Drag Race, Housings / Components, Ford 9" Housings, Street / Track, Street / Track, Housings / Components, Ford 9" Housings, Ford, Ford, Housings & Components, Ford 9in Housings/

Strange HD 9″ Ford Housing                                                                                   Bolt-in For 2005-2014 Mustang                                                                             Complete With  Mounts & Ends

Strange HD 9″ Ford Housing                                                                                   Bolt-in For 2005-2014 Mustang                                                                             Complete With  Mounts & Ends

$825.00

Part Number: HF9M05ME

Out of stock

Application
Bolt-in housing for 2005-2014 Mustang

Description
Strange HD Ford 9″ housing
With upper & lower control arm mounts and housing ends

Custom widths available at no additional charge

Note
Upper mount is moved forward .400″ and upward .400″
Aftermarket adjustable upper control arm must be used

Pinion offset is .125″ to passenger side

Information Required
Housing width
Type of housing ends

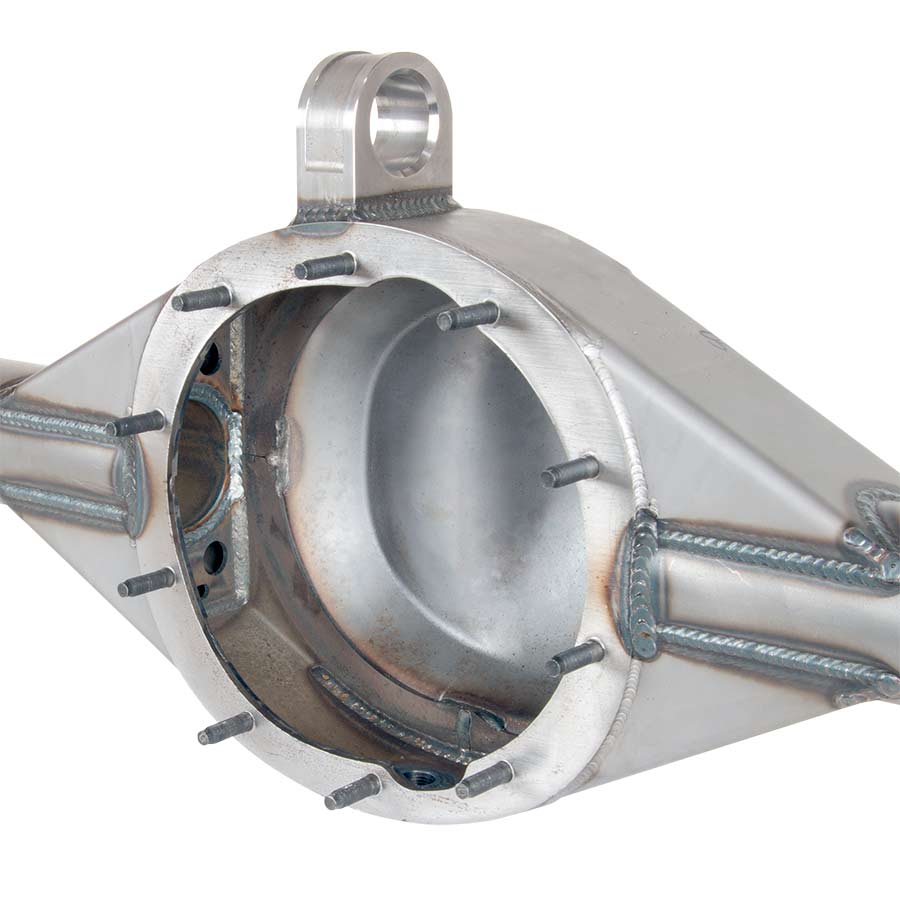

Center Housing – H1112 *

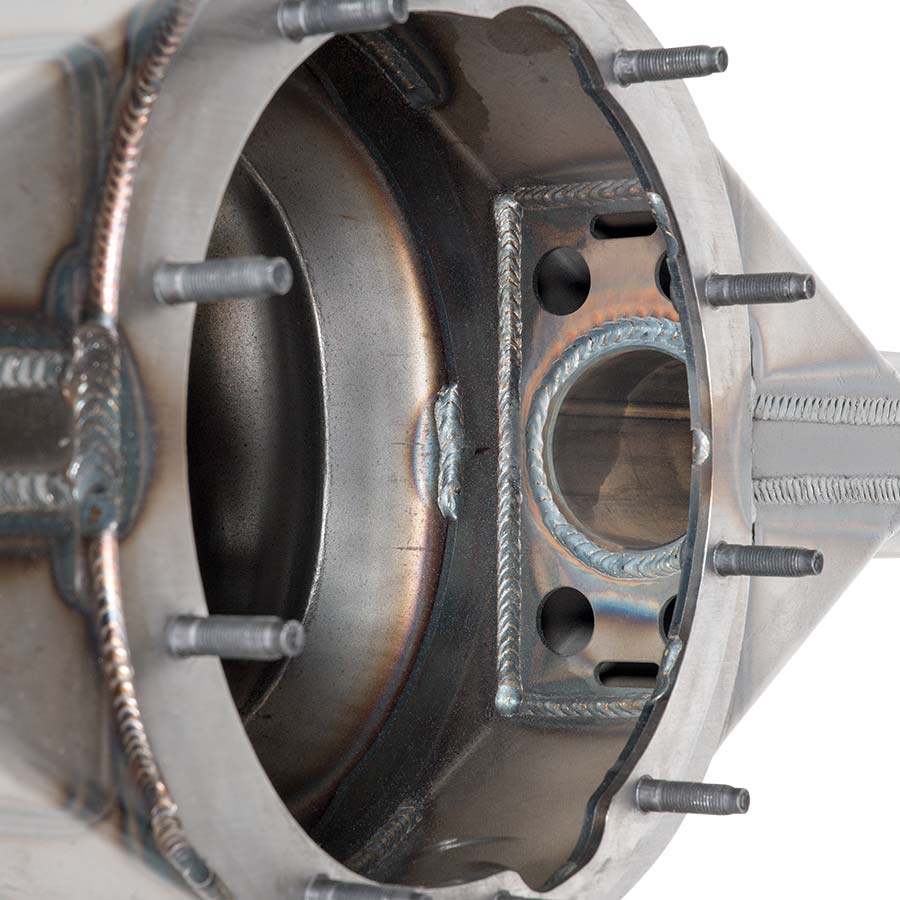

• Constructed from .141″ mild steel
• Heavy duty .282″ thick face plate
• Internal gussets provide rigidity and support axle tubes
• Slots allow exceptional weld contact of housing to tubes

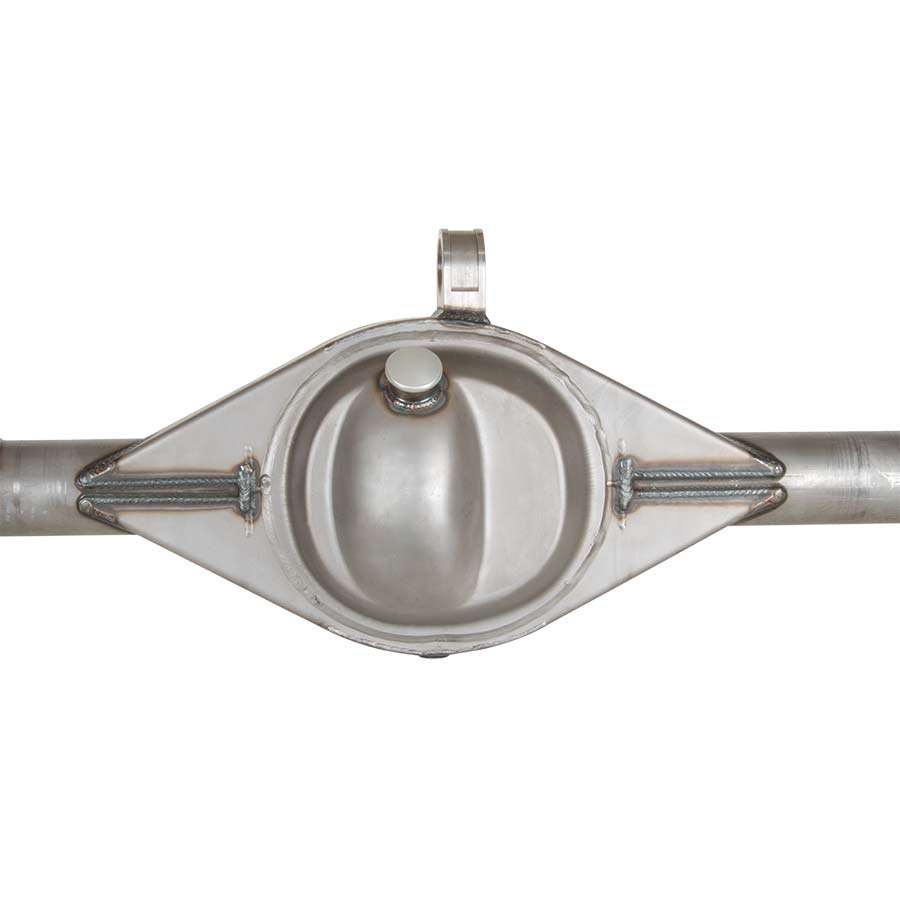

• Extended cover provides clearance for 9″ & 9 1/2″ gear sets

* Modified for this application

Fill & Drain plugs – H1116 / H1117D
• Facilitate fluid changes
• Allows for inspection of ring gear

Housing Tubing – H1141
• DOM 1026 steel
• 3.250″ OD x .250″ wall thickness

Vent – H1112B
• Prevents build-up of internal pressure
• Ensures sealing integrity

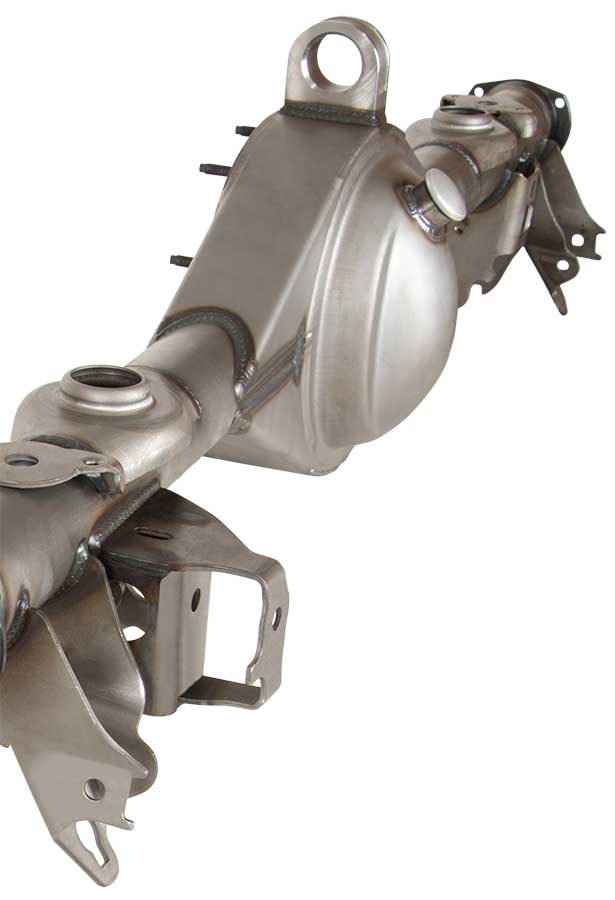

2005-2014 Mustang Mounts
• Strange HD upper control arm mount
• Lower control arm mounts
• Spring mounts
• Shock mounts
• Panhard bar mount
• Bump stop mounts

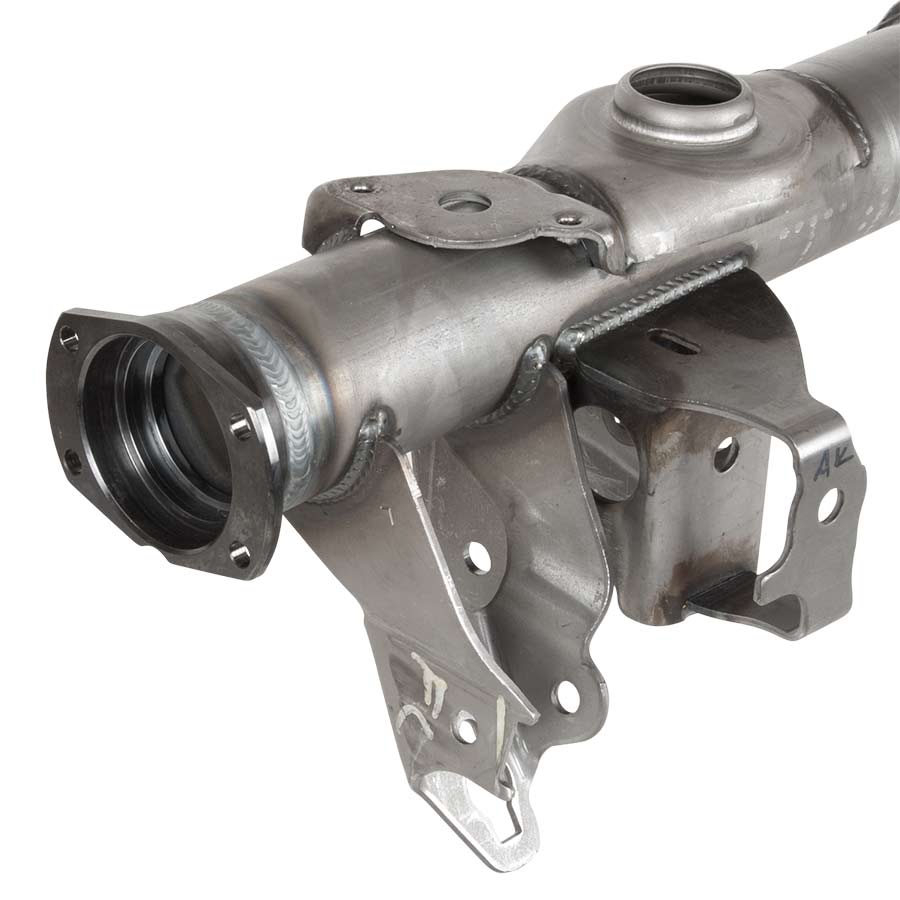

Choice of Housing Ends – H1148 / H1137
• Forged chrome moly
• Accept 3.150″ bearings
• Other Strange housing ends are also available

Professionally Welded
• Jig welded to ensure proper alignment
• Tubes internally & externally welded to housing
• Provides maximum support & rigidity



Related Components

Lube Locker® gasket….. H1111S

Axle Packages
Alloy……………………… P3102 / P3104
Pro Race……………….. P1007 / P1008

Brake Adapter Kit
For tapered bearings… B1706NC
For ball bearings………. B1706NCB

See Our Full Line of Center Sections
Available for Drag Race Only, Street / Track, and Performance Street Vehicles

This product is only available from an Authorized Strange Dealer or Factory Direct Call - 847.663.1701 or Email Us

Description

Ford 9″ housing / 2005 to present Mustang / with ends and mounts

Additional information

Weight 0.01 lbs
