Application

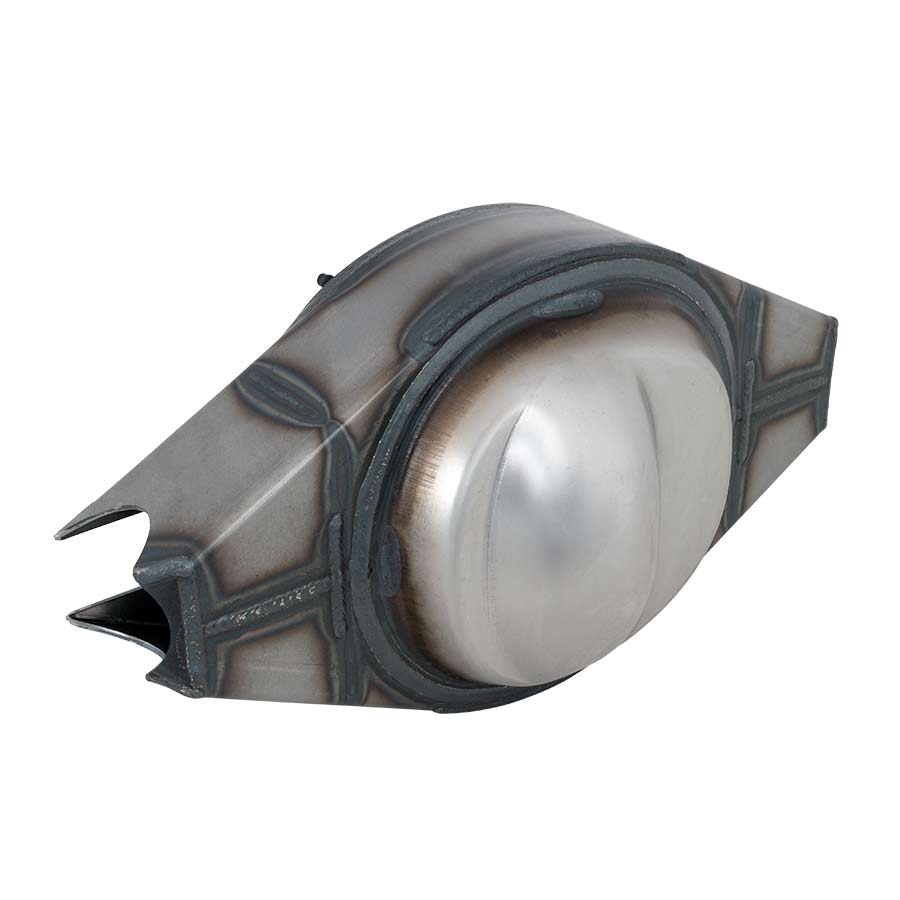

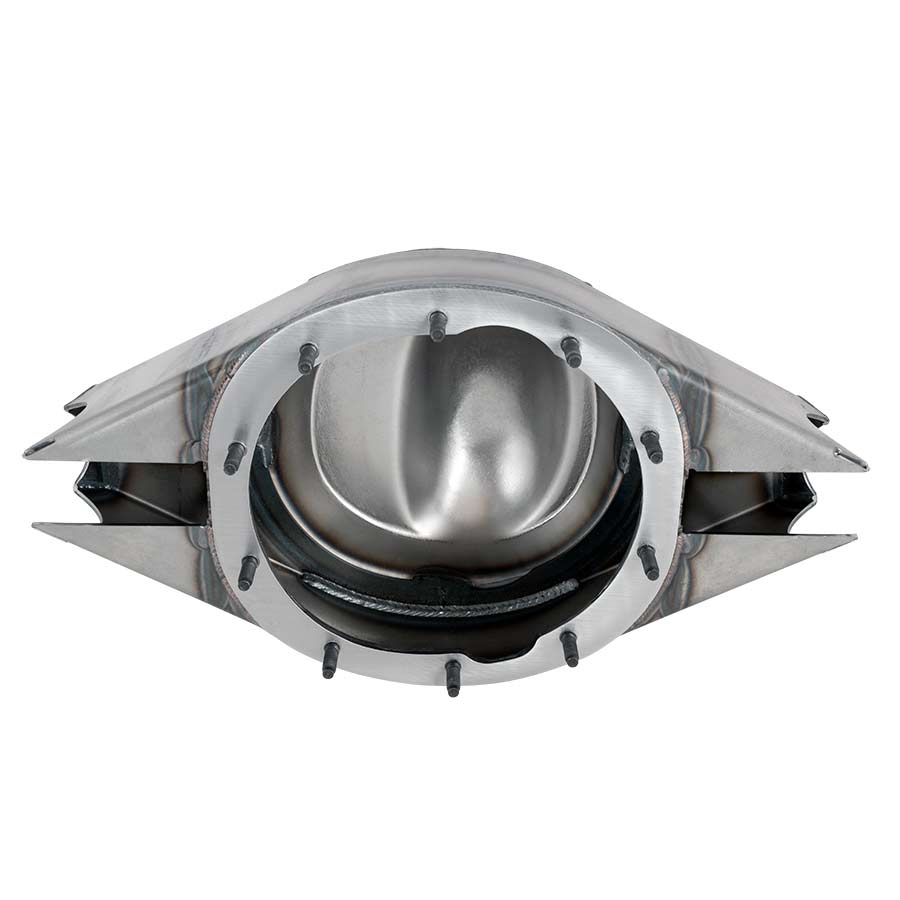

Foundation for Ford 9″ housing fabrication
Designed to accept 3 1/4″ OD axle tubing
For 3″ tubing – See H1110
Constructed from .141″ mild steel
Heavy duty .282″ thick face plate

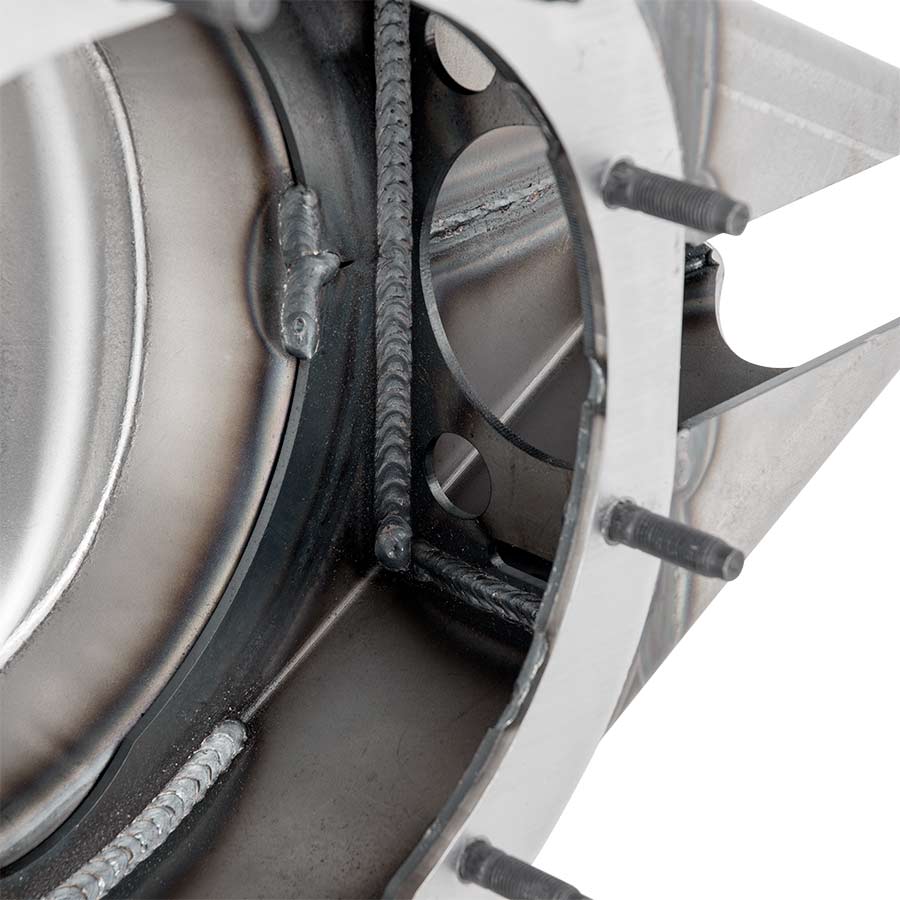

Internal gussets provide rigidity and support axle tubes
Slots allow exceptional weld contact of housing to tubes
Extended cover allows clearance for 9″ and 9 1/2″ gear sets
Related Components
3 1/4″ OD tubing… H1141
Housing Ends
Late Big Ford……… H1137
Big Ford……………… H1135
Small Ford………….. H1134
Mustang…………….. H1138
