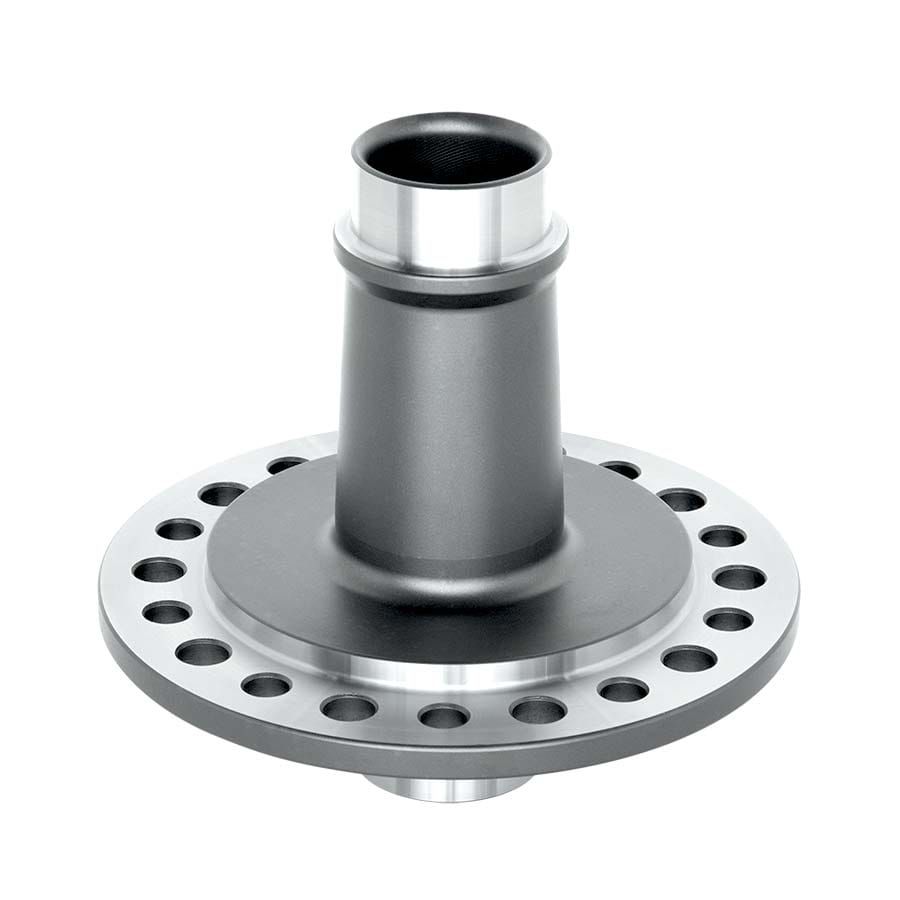

Ford 9″ 35 Spline S-Series Spool
Requires 3.250″ bore aftermarket case
Features
• Manufactured from 8620 forged steel
• Broached for 35 spline axles with 30° pressure angle
• Same spline locations as OEM differential
• Final turn operation after heat treat to ensure accuracy
• Accepts 7/16″ & 1/2″ ring gear bolts
• Designed & machined by Strange Engineering
• Forged in the USA
Weighs 9.12 lbs
Related
Spool bearings – D1590
3.250″ Bore Case
S-Series – N2206
Pro Iron – N1906
HD Pro Aluminum – P3203
Alloy Axle & Spool Package
With 1/2″ studs – P3502S
With 5/8″ studs – P350258S
With retainer plates & 1/2″ studs – P3504S
With retainer plates & 5/8″ studs – P350458S
Complete Installation Kits
For OEM standard pinion support – R5235 / R5235WR
For Daytona & N1917 pinion support – R5236 / R5236WR
For N1922 support & 28 spline pinion – R5237 / R5237WR
For N1922 support & 35 spline pinion – R5238 / R5238WR
