Ford 9″ Installation Kit                                                                                           For OEM Ford Standard Pinion Support

/, Installation Parts / Kits, Installation Parts & Kits/

Ford 9″ Installation Kit                                                                                           For OEM Ford Standard Pinion Support

Ford 9″ Installation Kit                                                                                           For OEM Ford Standard Pinion Support

$135.00

Part Number: R5235WR

For OEM Ford Standard Supports
Use same size pinion bearings front & rear

Features Timken® Bearings & Races

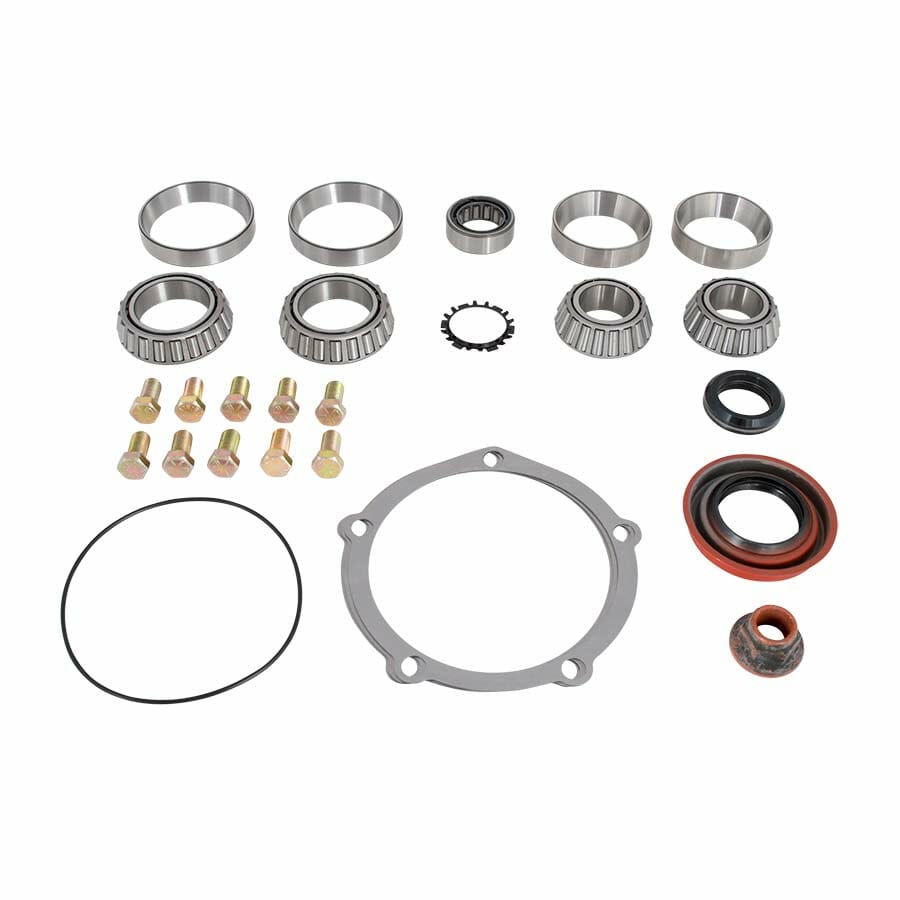

Kit Includes

Front and rear pinion bearings and races
Side bearings and races- D1586, D1588, or D1590
Tail bearing and retainer – N1940 / N1941
Pinion seal – N1960
Pinion support o-ring – N1958A

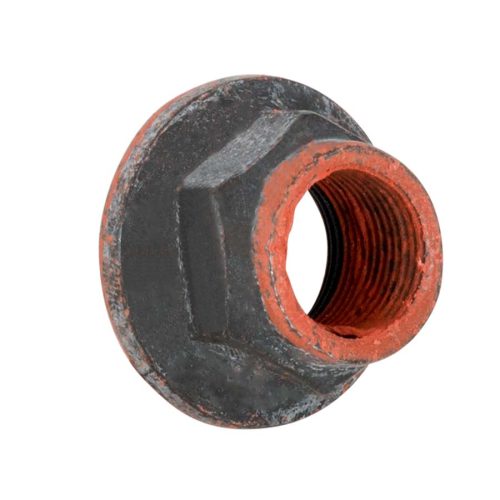

Flanged locking pinion nut – N1922A
Adjustable pinion preload spacer – N1925
Pinion depth shim kit – N1962

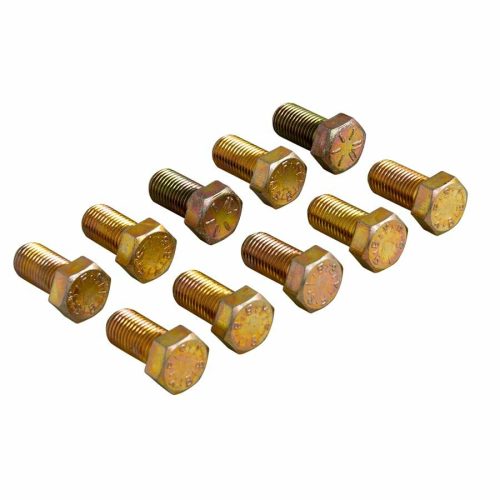

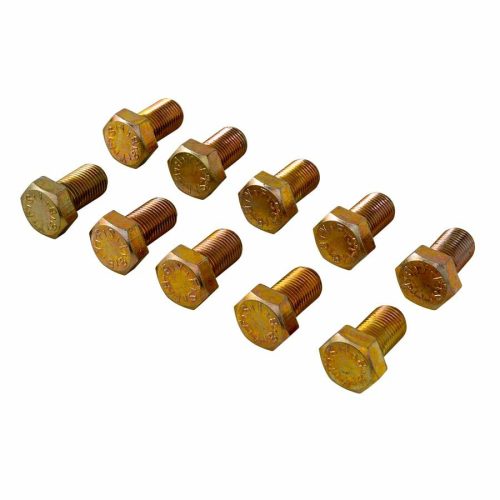

7/16″-20 ring gear bolts – N1965, N1967, N1968, or D1565RK

Information Required

Case Bore Size
2.891″ / 3.062″ / 3.250″

Spool or Differential

For Differential
Clutch Type or All Others

For Strange Spool
Steel or Aluminum

For Other Spools
Choose part number of ring gear bolts


Related Components
Kit without pinion races…… R5235
Fel Pro gasket………………….. H1112G

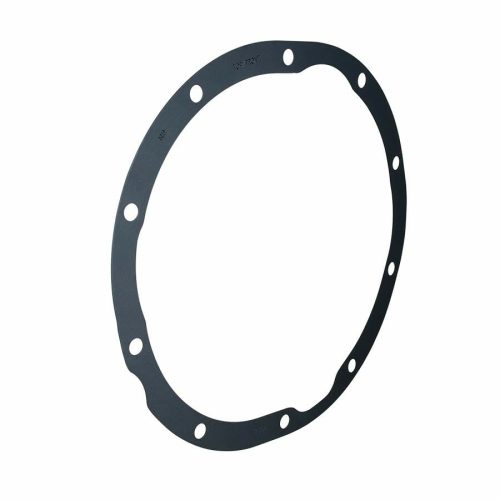

Fel Pro Teflon® gasket…….. H1111
Lube Locker gasket………….. H1111S

Note
For Daytona style pinion supports – See R5236WR

Description

Ford 9″ complete installation kit for OEM standard pinion support

Additional information

Weight 6.00 lbs
