Strange HD Pro Completion Kit For Ball Bearing Pinion Support Installing 35 Spline Pinion Gear

$295.00

Part Number: R3200LB

Application
For Strange HD Pro case kits – P3200BB / P3203BB / P3207BB
Installing 35 spline Pro gear

For 28 Spline Pinion – See R3200SB

Description
Supplies remainder of installation components
Less carrier, gear set, and yoke or coupler

Notes
Support race, o-ring, & tail bearing are not included
These parts are supplied in case kits

If Performing a Gear Change – See R5238B / R5238BR

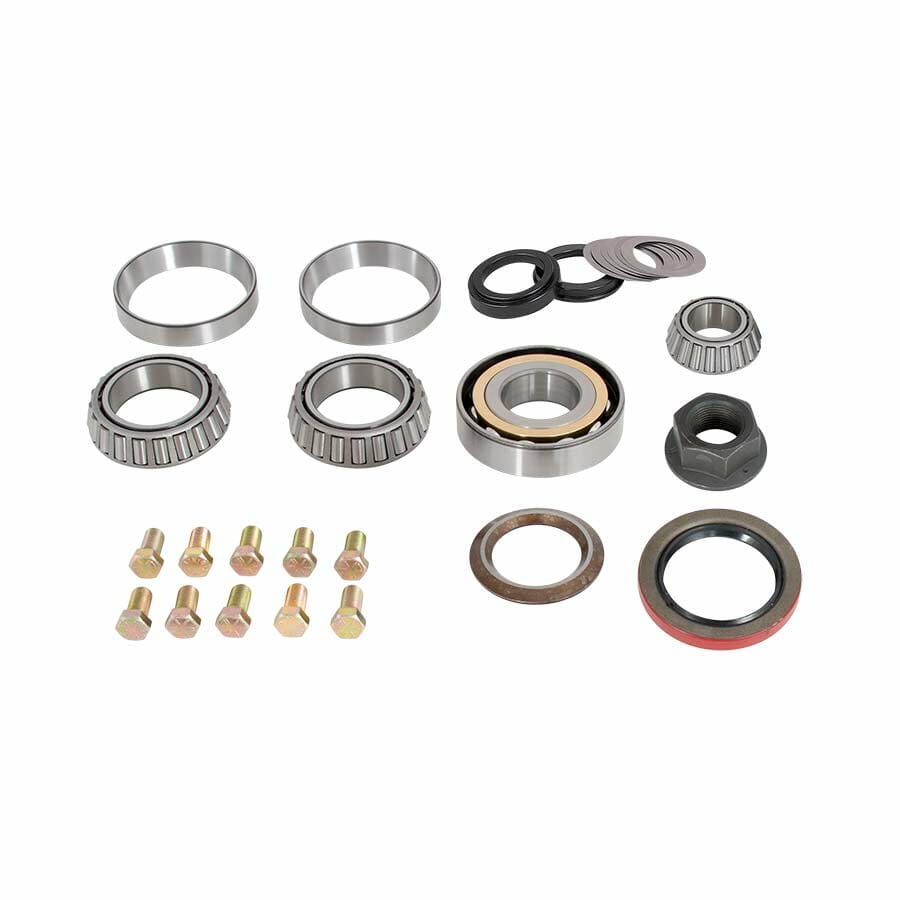

Kit Includes

Tapered front pinion bearing – N1936
Rear angular contact ball bearing assembly – N1920BM
Rear bearing spacer washer – N1920D
Adjustable pinion preload spacer – N1919
Side bearings and races – D1588, D1590, or D1592
Pinion seal – N1961L
Flanged pinion nut – N1922B
1/2″-20 and/or 7/16″-20 ring gear bolts – N1964 / N1965 / D1565RK

Information Required

Case Bore Size
3.062″ / 3.250″ / 3.812″

For Strange Spool
Steel or Aluminum

For Other Spools
The ring gear bolts supplied are designed for a flange thickness of .375″
If your spool exceeds this dimension the ring gear bolts will be too short
Specify if using an aluminum spool

Related Components

Pinion support race……….. N1931
Support o-ring………………. N1958A
Tail bearing……………………. N1943
Fel Pro gasket……………….. H1112G
Fel Pro Teflon® gasket…… H1111
Lube Locker gasket……….. H1111S

  • Total

Description

HD Pro completion kit for use with 35 spline ball brg pinion support

Guidelines and Torque spec
