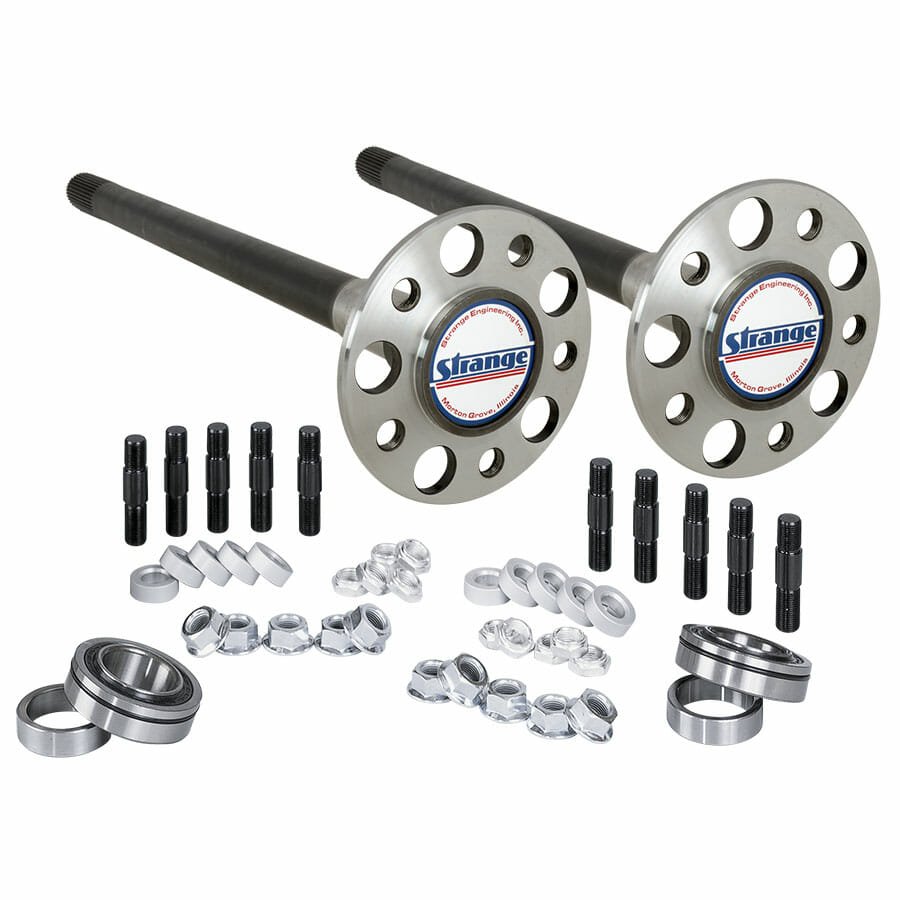

Pro Race Axle Package 35 Spline Gun Drilled Axles 3.150" Axle Bearings, & 5/8" Stud Kit


Part Number: P1013

Hy-Tuf axles are optimized for Drag Race use only
See our Alloy axle packages for street / track applications

Applications For 35 Spline Axles
Chevy 12 bolt car *
Dana 60
Ford 8.8 *
Ford 9″
Mopar 8 3/4″

* Require replacement 3.150″ housing ends

Designed for lightweight lower horsepower vehicles
Gun drilled 40 spline axles might be required to meet your needs
Contact a Strange sales associate to discuss your application

Gun drilling removes approximately one pound per foot
35 spline axles will lose 20% of their torsional strength *
Five 1″ lightening holes removes additional .4 lbs per axle

* Carefully consider your application

This Pro Race Axle Package Includes:
Hy-Tuf Ultra Strength Axles- A1000 with A1005 Option
– Forged from low carbon, high manganese, high nickel, and high molybdenum steel
– Majority of machining performed before heat treat to provide consistent hardness
– .875″ ID hole bored entire length of axle
– Five 1″ ID lightening holes in axle flange
– Thru hardened to Rc 45-48 to maximize the material’s torsional strength
– Finish machined after heat treat to ensure accuracy
– 35 spline with 30° pressure angle
– Lengths up to 20″ (over 20″- See A1005AC)
– Choice of bolt circle
– Forged in the USA
– Designed and machined by Strange Engineering

Sealed Ball Bearings- A1019
– Low friction bearings designed specifically for Drag Racing
– O.D. grooved for o-ring to eliminate inner axle seal
– Includes o-rings and locking collars

Choice of 5/8″-18 Stud Kit

Bolt Style – See A1027
– 5/8″-18 x 3″ Grade 8 fully threaded bolts
– Thin .200″ hex head provides additional clearance
– Width choice of anti-marring/spacer washers
– Includes threaded sleeves, installation tool & flanged lug nuts

Shank Style – See A1036 / A1037 / A1037MD / A1038 / A1039 / A1041
– 5/8″-18 chrome moly stud available in six different shank lengths
– Width choice of anti-marring/spacer washers
– Includes thin head self locking inner nuts & flanged lug nuts

Install axle bearings ………………………… See A1008
Ultra Light Flange *………………………….. See A1006
Additional charge for axles over 20″… See A1005AC

* Removes additional 1.1 lbs per axle

Pro Race 40 Spline Axle Packages
Gundrilled………………… See P1014
With spool………………… See P2015

Alloy Street / Track Axle Packages
With 1/2″ studs… See P3102 / P3502
With 5/8″ studs… See P310258 / P350258
With spool……….. See P3102S / P310258S / P3502S / P350258S

This product is only available from an Authorized Strange Dealer or Factory Direct Call - 800-646-6718 or Email Us


Strange Race 35 spline gun-drilled axles, bearings, & 5/8″ stud kit
