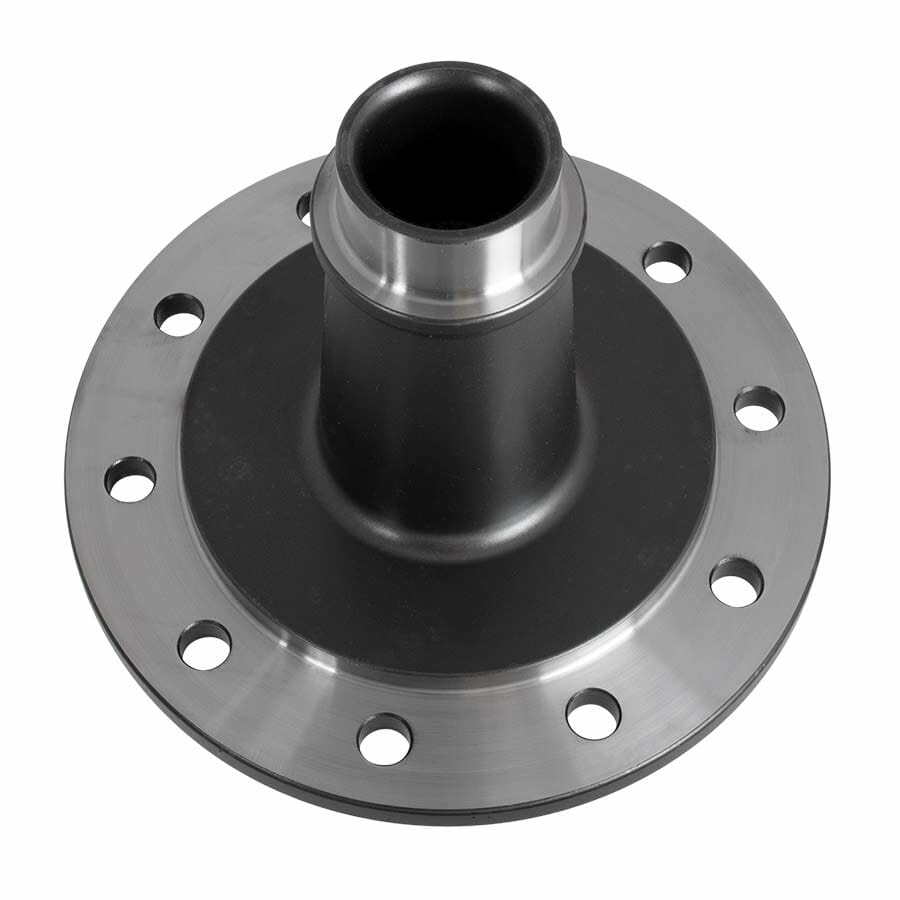

Strange S-Series Steel Spool                                                                               For Ford 9″ with 35 Spline Axles

/, Drag Race, 9" Center Sections & Parts, 9" Center Sections & Parts, Spools, Spools / Spool Bearings, Ford 9", Ford, Ford, 9" Center Sections & Parts, 9" Center Sections & Parts, Spools/

Strange S-Series Steel Spool                                                                               For Ford 9″ with 35 Spline Axles

Strange S-Series Steel Spool                                                                               For Ford 9″ with 35 Spline Axles

$150.00

Part Number: D1518

Application

Ford 9″


Description

S-Series Spool
For 35 spline axles
Fits 3.250″ bore aftermarket case


Features

• Manufactured from 8620 forged steel
• Broached for 35 spline axles with 30° pressure angle
• Same spline locations as OEM differential
• Final turn operation after heat treat to ensure accuracy
• Designed & machined by Strange Engineering
• Forged in the USA

Weighs 9.12 lbs


Related Components


Spool Bearings

For 3.250″ bore case…………………………….. D1590


Cases

S-Series………………………………………………… N2206
Pro Iron………………………………………………… N1906

L/W Aluminum……………………………………… N1904
HD Pro Aluminum…………………………………. P3203

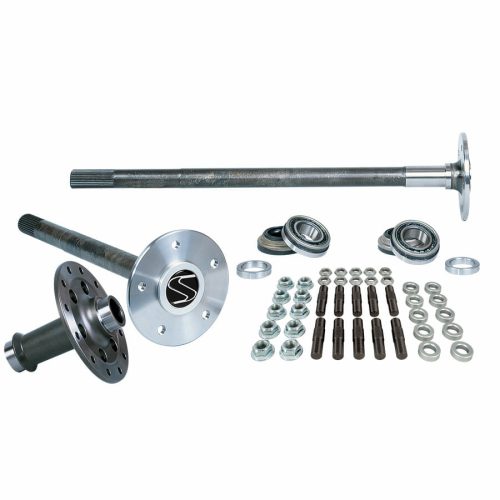

Alloy Axle & Spool Package

With 1/2″ studs……………………………………… P3502S
With 5/8″ studs……………………………………… P350258S

With retainer plates & 1/2″ studs………….. P3504S
With retainer plates & 5/8″ studs………….. P350458S


Complete Installation Kits

For OEM standard pinion support………… R5235 / R5235WR
For Daytona & N1917 pinion support…… R5236 / R5236WR
For N1922 support & 28 spline pinion….. R5237 / R5237WR
For N1922 support & 35 spline pinion….. R5238 / R5238WR



Description

S-Series Ford 9″ steel spool for 35 spline axles

Additional information

Weight 9.90 lbs
