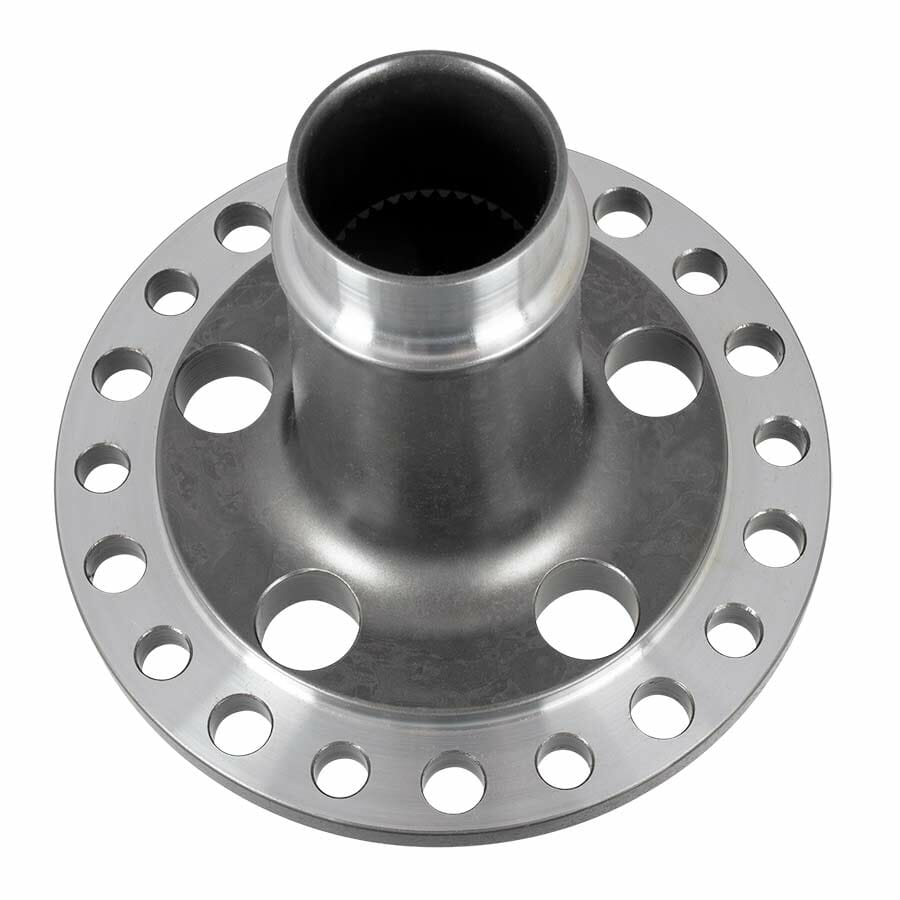

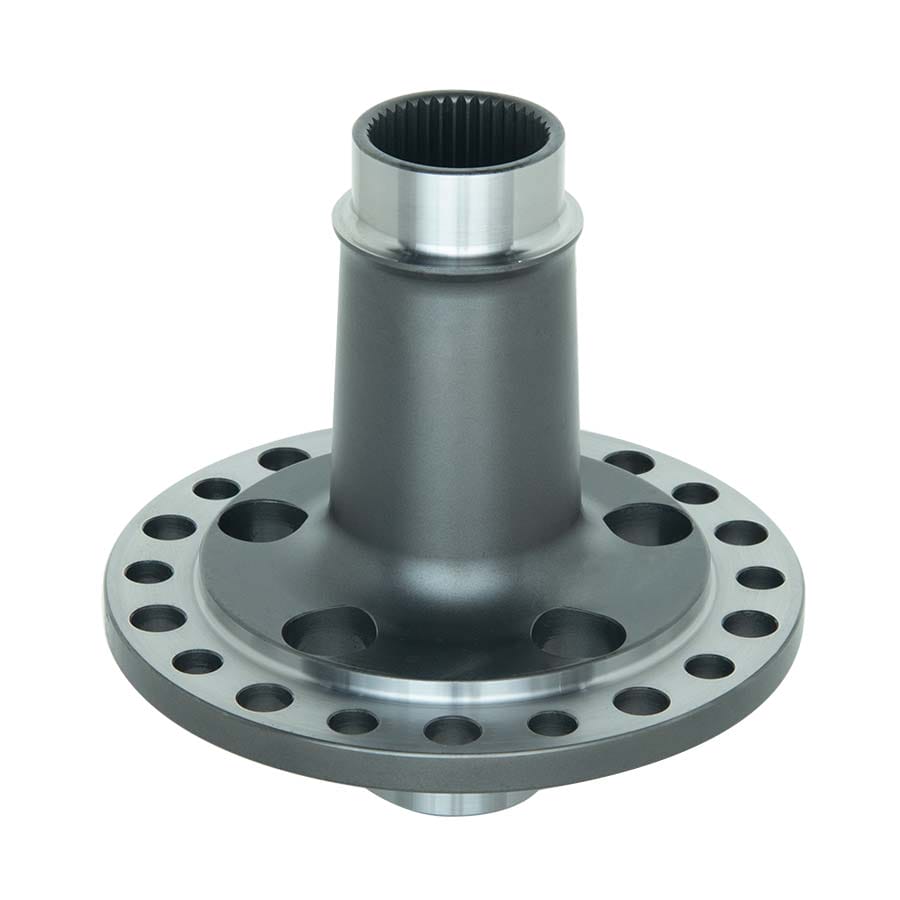

Ford 9″ 40 Spline Pro Series Spool
Requires 3.250″ bore aftermarket case
Spline Locations Were Changed 06/14
Splines start at the outer edges
Left hand side are 1.875″ deep
Right hand side are 3.125″ deep
Features
• Machined from 4140 forged steel
• Lightened to reduce rotating weight
• Broached 40 spline with 45° pressure angle
• Critical dimensions left oversize prior to heat treatment
• Heat treated for further gains in strength
• Finish machining after heat treat to bring surfaces within specifications
• Accepts 7/16″ & 1/2″ ring gear bolts
• Designed and machined by Strange Engineering
• Forged in the USA
Weighs 7.95 lbs
Lightweight Pro Series Steel Spools Carry A Limited Lifetime Warranty
