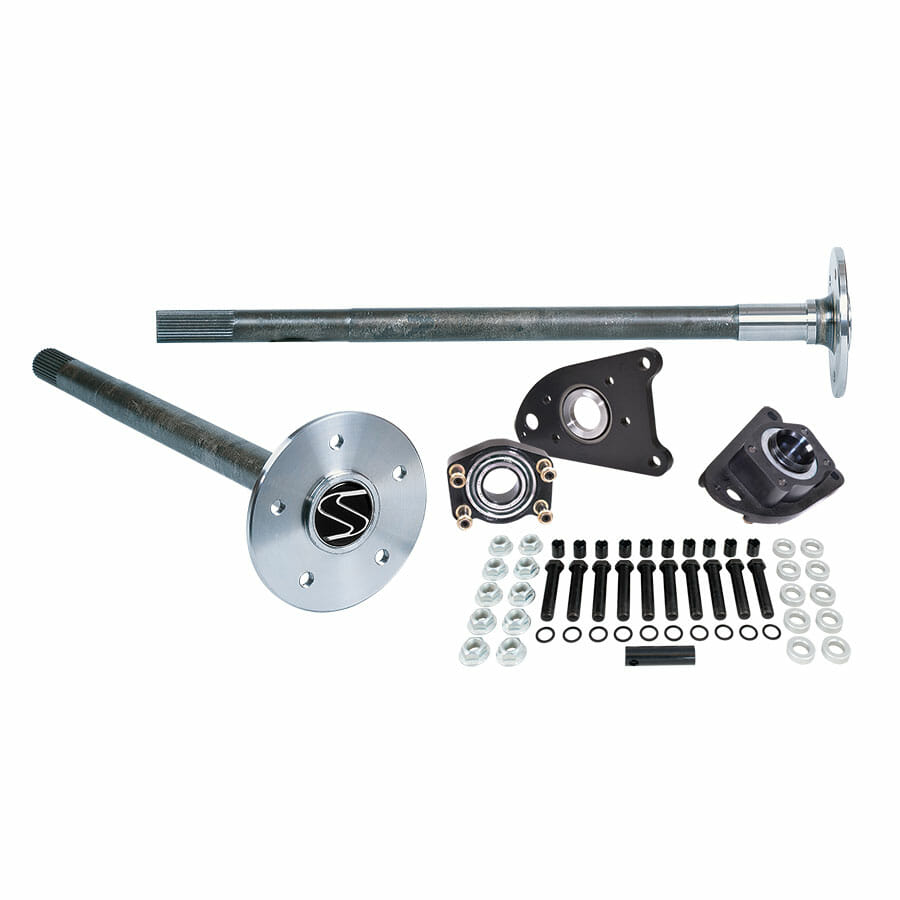

Strange Alloy Axle Package For 1994-2004 Mustang 8.8 Rear End 35 Spline Alloy Axles, C-Clip Eliminator Kit, & 5/8" Stud Kit

$735.00

Part Number: P3509F9458

Alloy axle packages are optimized for street & track use
See our Hy-Tuf axles for maximum torsional strength for all out Drag Racing

Package Includes

Alloy Axles – A3500
• Forged from modified 1550 premium steel
• Majority of machining performed before heat treat to provide consistent hardness
• Induction hardened to Rc 58-62 to increase torsional strength while remaining ductile
• Finish machined after heat treat to ensure accuracy
• 35 spline with 30° pressure angle
• Custom lengths available at no additional charge
• Choice of bolt circle
• Designed and machined by Strange Engineering
• Forged in the USA

C-Clip Eliminator Kit – A1094 GT 500 brakes / A1095 Cobra brakes
• Billet aluminum caliper mounts to accept OEM brakes
• Aluminum inner halves
• Timken® Tapered Unit bearings for long bearing life
• Bearing spacer/reluctor ring adapters
• Locking rings
• Outer seals
• O-rings
• Housing end bolts
• Hardened washers for use with OEM caliper mounting bolts

Choice of 5/8″ Bolt Style Stud Kit – A1027S / A1027 / A1027L
• 5/8″-18 x 3″ Grade 8 fully threaded bolts *
• Thin .200″ hex head provides additional clearance
• Width choice of anti-marring/spacer washers
• Includes threaded sleeves, installation tool & flanged lug nuts

* Measured from underneath the hex of the stud

Double Ended 5/8″ Studs Will Not Clear This Eliminator Kit

Notes For ABS
This kit will not work with factory reluctor rings – See custom rings below
Read instructions carefully beforehand as assembly order is crucial

Options
Custom 94-04 reluctor ring – each…………… A1094E

Labor Only
Install eliminator kit…………………………………. A1008C
Install eliminator kit & studs…………………… A1008SC
Install studs, reluctors & eliminator kit….. A1008SRC

Other Packages

Alloy
1986-1993……………………………………………… P3509F86S
2005-2014……………………………………………… P3509F05S

Pro Race
1986-1993………………………………………………. P1011F86
1994-2004………………………………………………. P1011F94
2005-2014………………………………………………. P1011F05

  • Total

Description

1994-2004 Ford Mustang 8.8 35 spline Alloy axles, eliminator kit & 5/8″ stud kit
