Strange HD 9" Ford Housing 1963-1972 Chevy C10 2WD

$925.00

Part Number: HF9LEG67C10ME

Application
1963-1972 Chevy C10 2WD
Equipped with rear coil spring suspension

Description

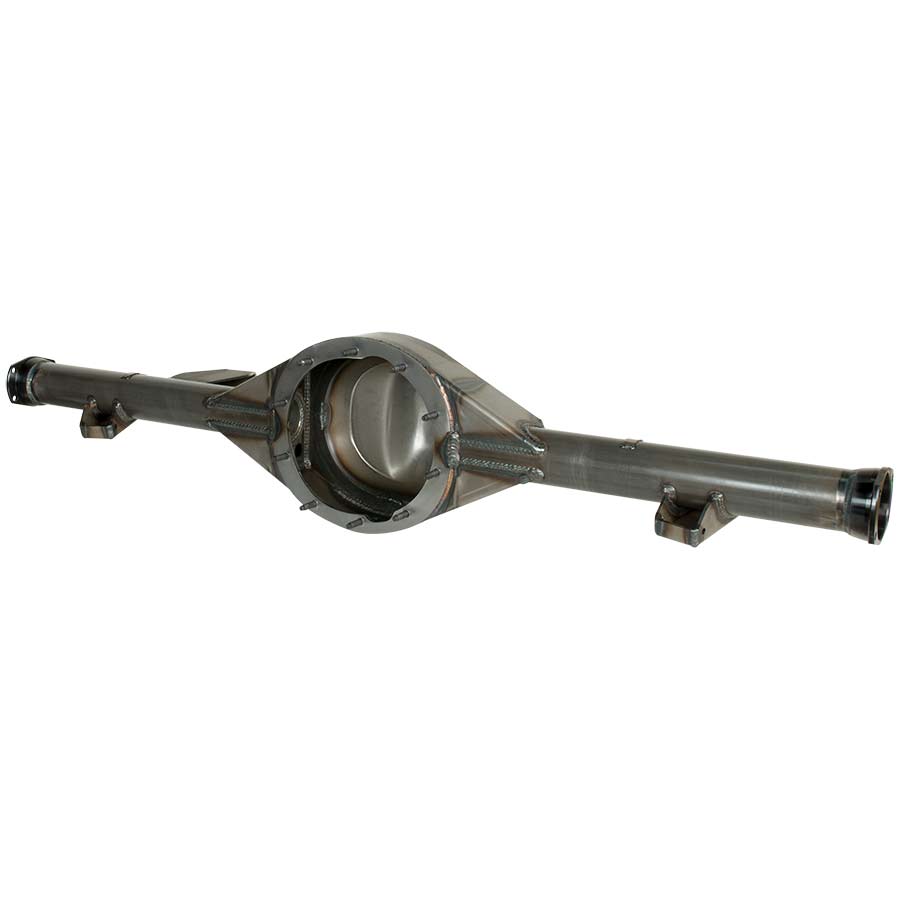

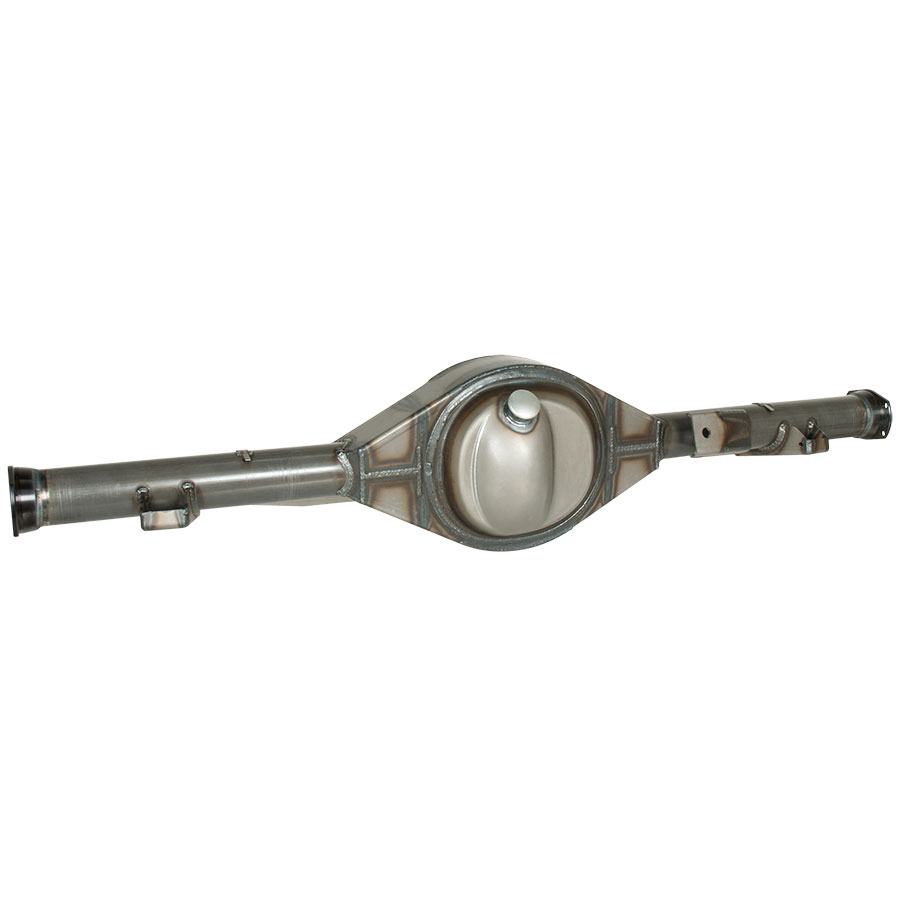

Strange HD Ford 9″ Bolt-in Housing

No Additional Charge For Custom Width

Features
Center Housing – H1110
• Constructed from .141″ mild steel
• Heavy duty .282″ thick face plate
• Internal gussets provide rigidity and support axle tubes
• Slots allow exceptional weld contact of housing to tubes

Fill & Drain plugs – H1116 / H1117D
• Facilitate fluid changes
• Allows ring gear inspection

Tubing – H1139
• Mild steel
• 3″ OD x .250″ wall
• Brake line tabs

Vent – H1112B
• Prevents build-up of internal pressure
• Ensures sealing integrity

Mounts
• Trailing arm mounts
• Panhard bar mount *

* Requires Longer Panhard Bar

Housing Ends
• Forged steel
• Choice of Strange end

Professionally Welded
• Jig welded to ensure proper alignment
• Exceptional weld quality

Related Components
Panhard bar…………. H1053

Gasket
LubeLocker®………. H1111S

Floater Kit
Pro Touring…………… F5010

Axle Packages
Alloy……………….. P3102 / P3104
Pro Race…………. P1007 / P1008

See Our Full Line of Center Sections
Available for Drag Race Only, Street / Track, and Performance Street Vehicles

This product is only available from an Authorized Strange Dealer or Factory Direct Call - 800-646-6718 or Email Us

Description

1963-1972 Chevy C10 2WD Truck Bare Housing

Strange 9 inch rear end housing for 1963 through 1972 Chevy C10 2WD trucks.

Strange has designed a bare rear axle housing for those wanting to upgrade the C10 rear-rend on their classic Chevy truck. The Strange 9 inch rear end for C10 is designed to match the OE axle width, location of the pinion, suspension mounting points, and bolt patterns.

Strange Engineering has designed improvements to the Ford 9 inch rear ends for the automotive industry. Strange has increased the strength of the Ford 9 inch in several different ways. The Strange 9 inch housing is a semi-floating, drop-out axle. Because of its strength you will see these 9 inch rear ends in just about every make of car, not just Fords.

The Ford 9 inch housing has a vast amount of ford 9 inch gear ratios available. This combined with easy assembly makes it popular for fine tuning your rear gear for any particular need. Strange Engineering is the most recognized name in the aftermarket industry when it comes to Ford 9 inch rears. From high performance street cars to Pro Mod, Strange Ford 9 inch housings are relied on by more racers than all other manufacturers combined.
