1964-1977 A-Body Housing - Less Ends
Strange HD Ford 9" Housing With Mounts, Fill & Drain

$895.00

Part Number: HF9GAM


Strange HD Ford 9″ GM A-Body Housing – No Ends
Perfect Base For Creating Pro Touring Floater Housing
• Upper mounts raised to provide additional traction
• Factory .500″ pinion offset to passenger side
• Custom widths available at no additional charge

1964-1967
• Chevelle / El Camino
• Cutlass
• GTO / Lemans / Tempest
• Skylark

1968-1972
• Chevelle / Malibu / El Camino
• Cutlass / 442
• GS / GSX / Skylark
• GTO / Lemans

1970-1972
• Monte Carlo
• Grand Prix

1973-1977
• Chevelle / El Camino / Laguna / Malibu / Monte Carlo
• Cutlass / 442
• Grand Prix / Lemans
• Regal

Using Aftermarket Upper Control Arms
Upper arm mounts are positioned close to the housing to minimize instant center changes
The vertical distance from axle center line to upper control arm mount center is 6.00″
Some upper control arms and spherical bearings may require modification to clear housing
Contact the manufacturer of the upper arms for compatibility before ordering this housing

Center HousingH1110
• Constructed from .141″ mild steel
• Heavy duty .282″ thick face plate
• Internal gussets provide rigidity and support axle tubes
• Slots allow exceptional weld contact of housing to tubes
• Extended cover provides clearance for 9″ & 9 1/2″ gear sets

Fill & Drain plugs
• Facilitate fluid changes
• Allows ring gear inspection

Tubing
• DOM 1026 steel
• 3.00″ OD x .250″ wall thickness
• Brake line tabs

Vent – H1112B
• Prevents build-up of internal pressure
• Ensures sealing integrity

Upper Control Arm Mounts
• Billet one piece heavy duty steel construction
• Will not flex like two piece plates
• Upper mounts raised for additional traction
• 1964-1972 +1.125″ / 1973-1977 +0.750″

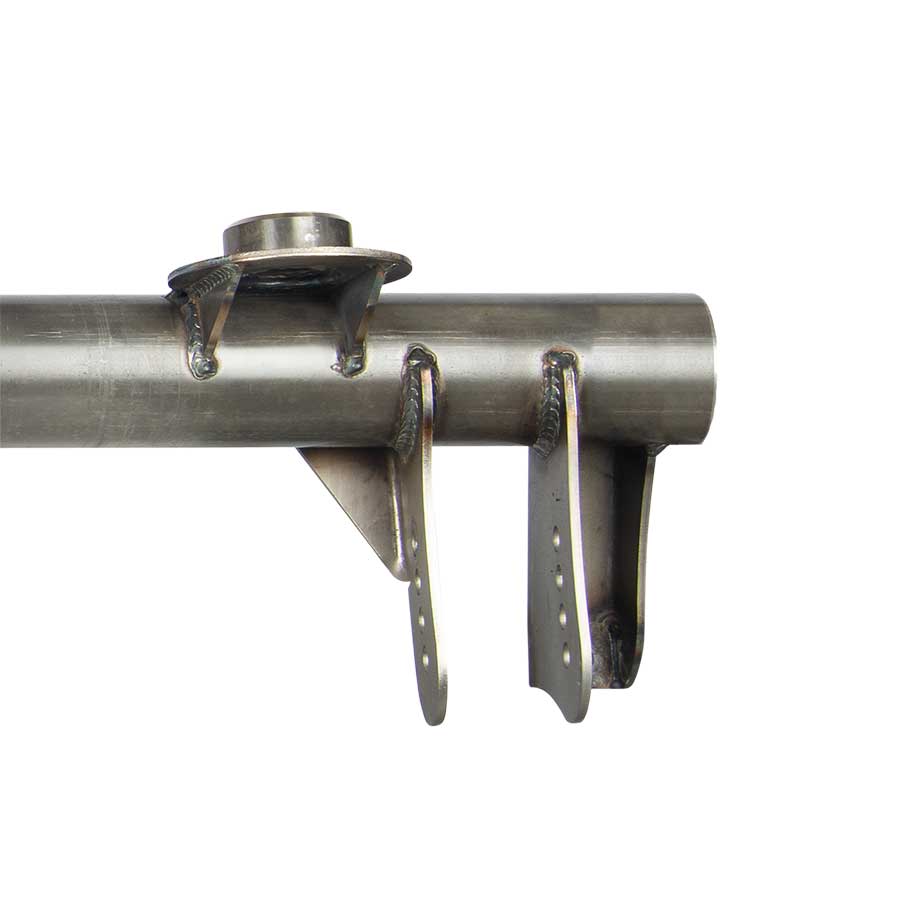

Lower Control Arm Mounts & Spring Cups
• Lower control arm mounts with multiple bolt hole locations
• Provides greater chassis tuning capabilities

Multiple LCA Bolt Holes Not Offered For 1973-1977 Vehicles

Professionally Welded
• Jig welded to ensure proper alignment
• Tubes internally & externally welded to housing
• Provides maximum support & rigidity
• Exceptional weld quality

Related
Pro Touring floater kit – F5010
Labor to install spindles – H1130SF

Cambered Pro Touring floater kit – F5012
Labor to install cambered spindles – H1130CSF

Small GM 3.150″ housing ends – H1143
Late Big Ford housing ends – H1137

Gasket – H1111S

See Our Full Line of Center Sections
Available for Drag Race Only, Street / Track, and Performance Street Vehicles


This product is only available from an Authorized Strange Dealer or Factory Direct Call - 800-646-6718 or Email Us

Description

Ford 9″ housing / GM A-Body / with mounts (no ends)
