Strange HD Ford 9" Housing
GM G-Body With Mounts
(No Housing Ends)

$750.00

Part Number: HF9GGM

Application

GM G-Body Vehicles
Used as a base for housing construction

Description

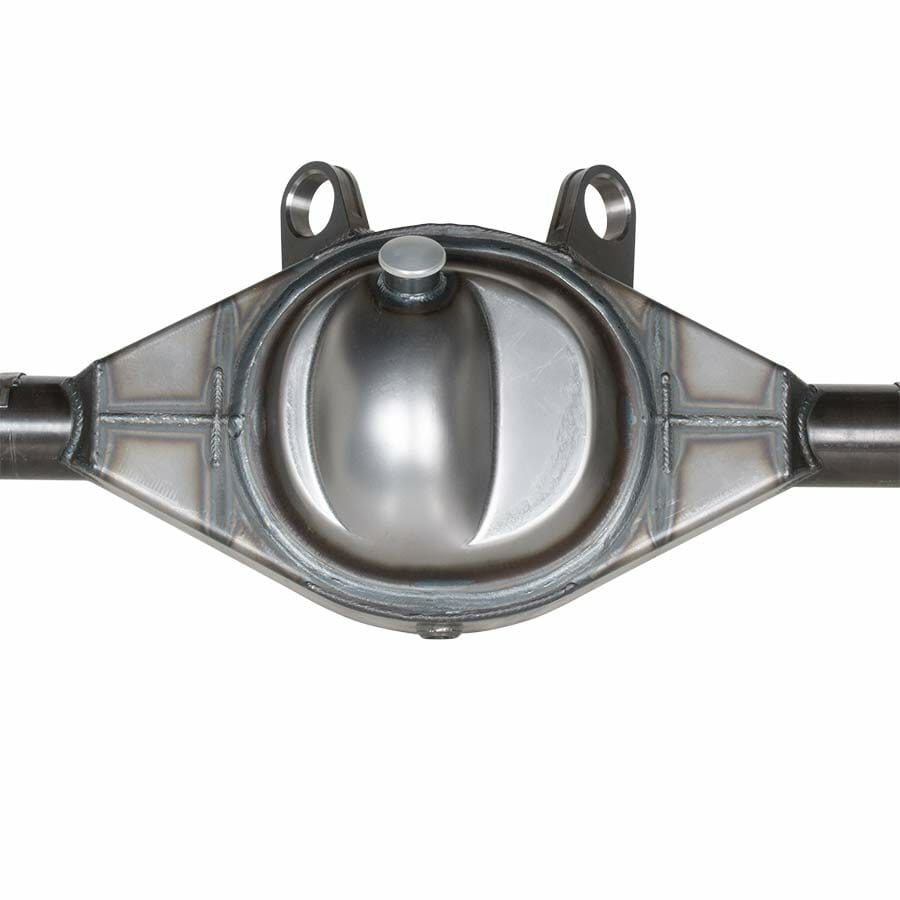

Strange HD Ford 9″ Housing
-Tubed with fill & drain plugs
-Upper & lower control arm mounts for GM G-Body

Features

Center Housing – H1110
• Constructed from .141″ mild steel
• Heavy duty .282″ thick face plate
• Internal gussets provide rigidity and support axle tubes
• Slots allow exceptional weld contact of housing to tubes

Fill & Drain plugs – H1116 / H1117D
• Facilitate fluid changes
• Allows ring gear inspection

Tubing – H1139
• Mild steel
• 3″ OD x .250″ wall

Upper Control Arm Mounts
• Billet one piece heavy duty steel construction
• Will not flex like two piece plate type

Lower Control Arm Mounts & Spring Cups
• Multiple mounting hole locations provide adjustability

Professionally Welded
• Jig welded to ensure proper alignment
• Exceptional weld quality


Related Components

Gasket………………… H1111S


See Our Full Line of Housing Ends, Axle Packages & Center Sections
Available for Drag Race Only, Street / Track, and Performance Street Vehicles

This product is only available from an Authorized Strange Dealer or Factory Direct Call - 800-646-7618 or Email Us

Description

Ford 9″ housing / GM G-Body / with mounts (no ends)

Additional information

Weight 0.01 lbs
