Strange HD 9″ Ford Housing                                                                                 For 1979-2004 Mustang                                                                             Includes Upper & Lower Mounts – No Ends

/, Drag Race, Housings / Components, Ford 9" Housings, Street / Track, Street / Track, Housings / Components, Ford 9" Housings, Ford, Ford, Housings & Components, Ford 9in Housings/

Strange HD 9″ Ford Housing                                                                                 For 1979-2004 Mustang                                                                             Includes Upper & Lower Mounts – No Ends

Strange HD 9″ Ford Housing                                                                                 For 1979-2004 Mustang                                                                             Includes Upper & Lower Mounts – No Ends

$736.00

Part Number: HF9M86M

Out of stock

Application
1979-2004 Mustang housing fabrication
Perfect base for Pro Touring rear end

Description
Strange HD Ford 9″ housing
With upper & lower control arm mounts – No housing ends

Custom widths available at no additional charge

Information Required
Tube to tube width

Note
OEM Ford 8.8 pinion offset is .625″ to passenger side
This housing is .970″ to passenger side due to Ford 9″ limitations

Center Housing – H1112 *
• Constructed from .141″ mild steel
• Heavy duty .282″ thick face plate
• Internal gussets provide rigidity and support axle tubes
• Slots allow exceptional weld contact of housing to tubes
• Extended cover provides clearance for 9″ & 9 1/2″ gear sets

* Modified for this application

Fill & Drain plugs – H1116 / H1117D
• Facilitate fluid changes
• Allows for inspection of ring gear

Housing Tubing – H1141
• DOM 1026 steel
• 3.250″ OD x .250″ wall thickness

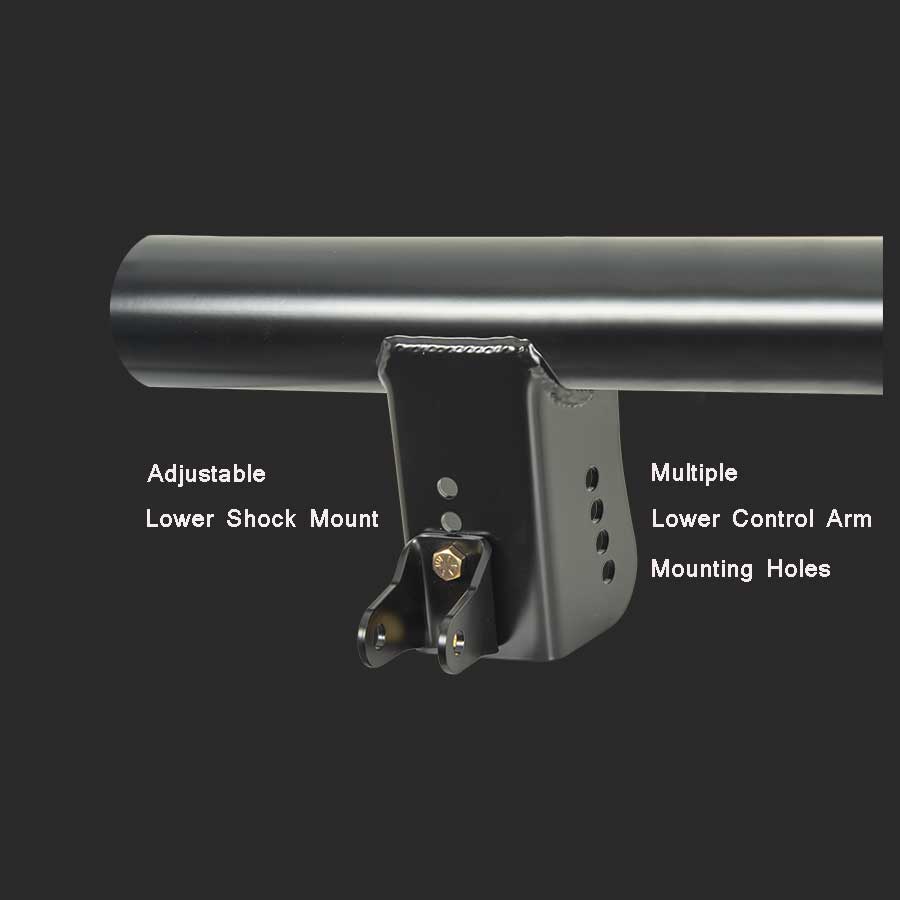

1979-2004 Mustang Mounts
• Strange HD upper control arm mounts
• Lower control arm mounts

Professionally Welded
• Jig welded to ensure proper alignment
• Tubes internally & externally welded to housing
• Provides maximum support & rigidity



Related Components

Floater Kit
Pro Touring………… F5010

Housing Ends
Late Big Ford……… H1137
Big Ford……………… H1135
Mustang 8.8……….. H1138

Gasket
Lube Locker………. H1111S

See Our Full Line of Center Sections
Available for Drag Race Only, Street / Track, and Performance Street Vehicles

This product is only available from an Authorized Strange Dealer or Factory Direct Call - 847.663.1701 or Email Us

Description

Ford 9″ housing / 79-04 Mustang / with mounts (no ends)

Additional information

Weight 0.01 lbs
