Strange HD 9" Ford Housing
'65-'72 Ford F100 Pick-Up Truck
Includes Mounts, Ends, Fill, Drain, & Vent

$675.00

Part Number: HF9FT65F100ME

Application

1965-1972 Ford F100 Pick-Up

NOTES:
Shock mounts moved down 1.250″ and forward 2.75″ from factory locations
• Improves geometry for lowered vehicles
• Due to less ground clearance, may create issues in 4×4 applications


Description

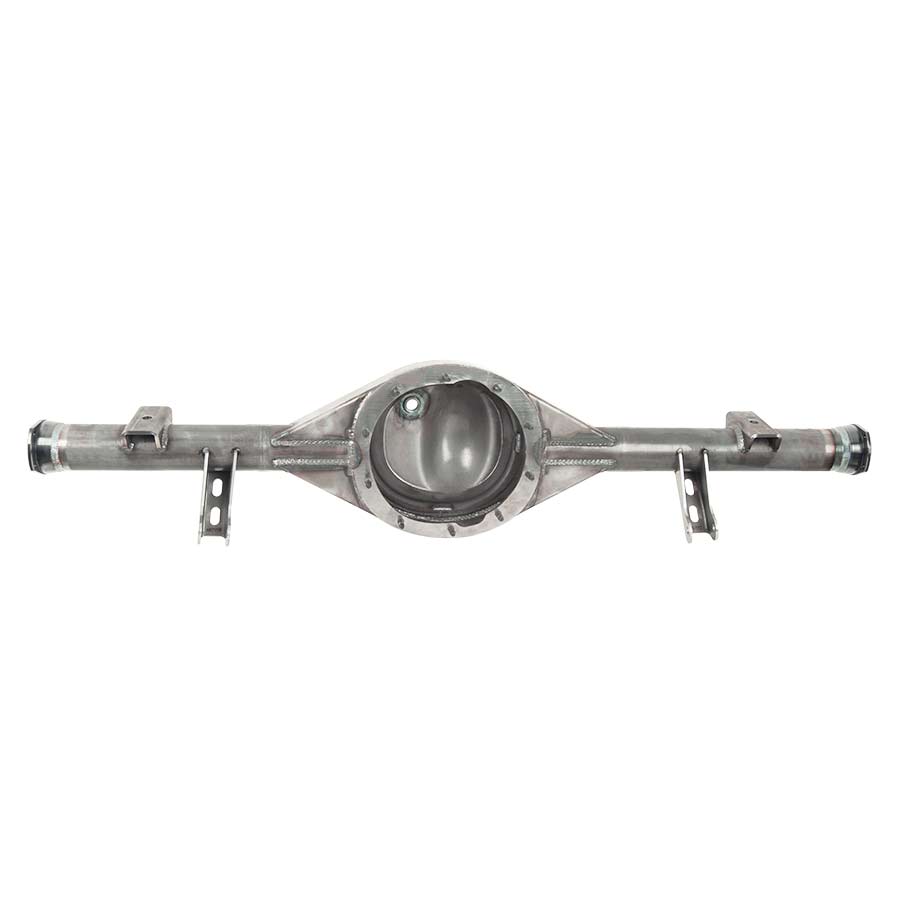

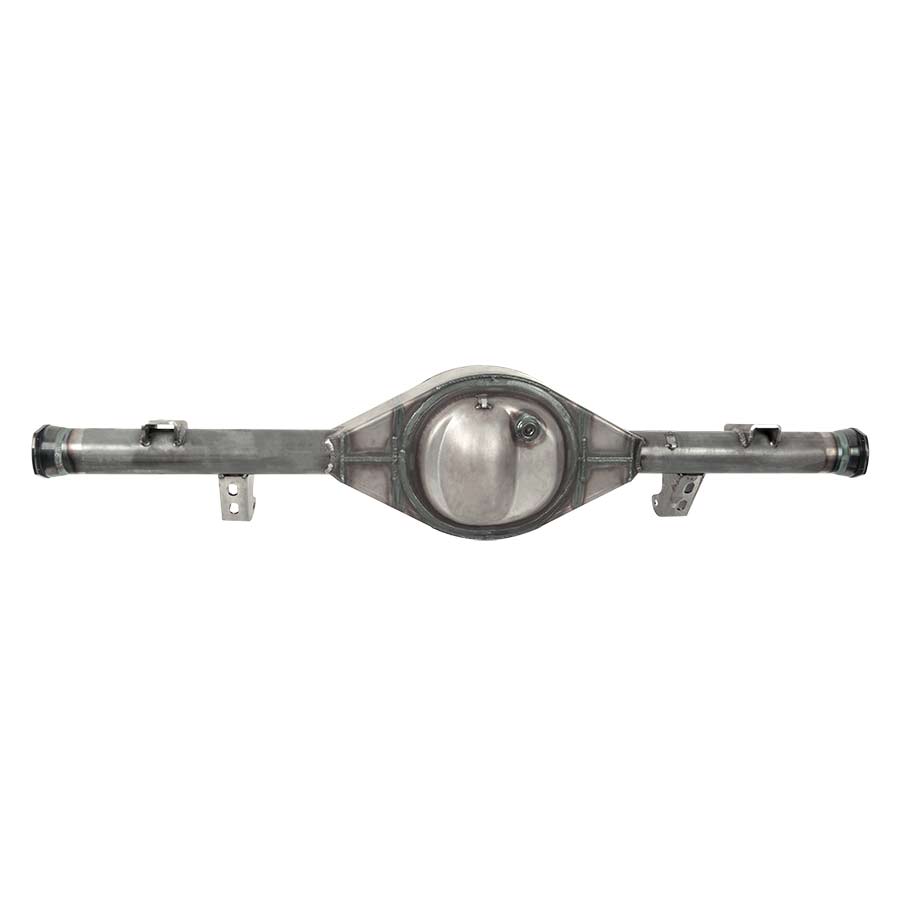

Strange HD Ford 9″ Bolt-in Housing
No additional charge for custom width

Note
Will Not Accept OEM Brakes

Information Required
Housing ends
Housing width

Features

Center Housing – H1110
• Constructed from .141″ mild steel
• Heavy duty .282″ thick face plate
• Internal gussets provide rigidity and support axle tubes
• Slots allow exceptional weld contact of housing to tubes

Fill & Drain plugs (2) H1117D
• Facilitate fluid changes

Tubing – H1139
• Mild steel
• 3″ OD x .250″ wall
• Brake line tabs

Vent – H1112B
• Prevents build-up of internal pressure
• Ensures sealing integrity

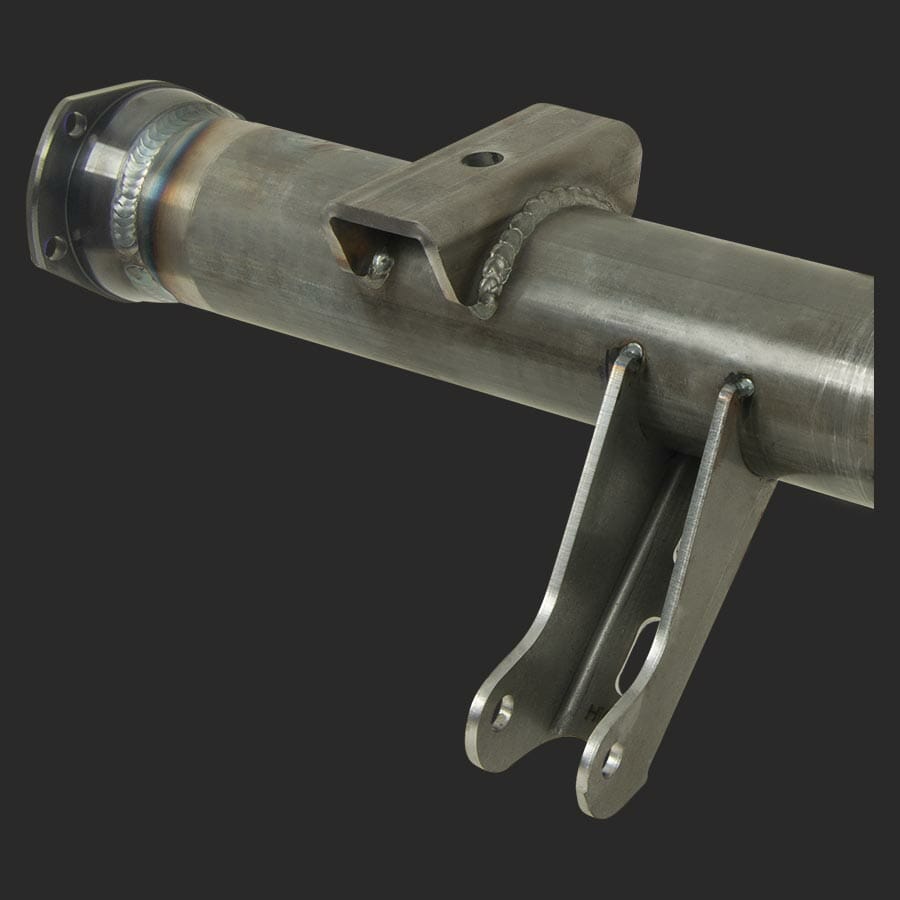

Ford F100 Mounts
• Heavy duty leaf & shock mounts

Housing Ends
• Forged steel
• Choice of Strange end

Professionally Welded
• Jig welded to ensure proper alignment
• Exceptional weld quality

Related Components

Gasket………………… H1111S

Axle Packages
Alloy………………. P3102 / P3104
Pro Race………….. P1007 / P1008


See Our Full Line of Center Sections
Available for Drag Race Only, Street / Track, and Performance Street Vehicles

This product is only available from an Authorized Strange Dealer or Factory Direct Call - 800-646-7618 or Email Us

Description

Ford 9″ housing / ’65-’72 Ford F100 Truck / with ends and mounts

Additional information

Weight 0.01 lbs
