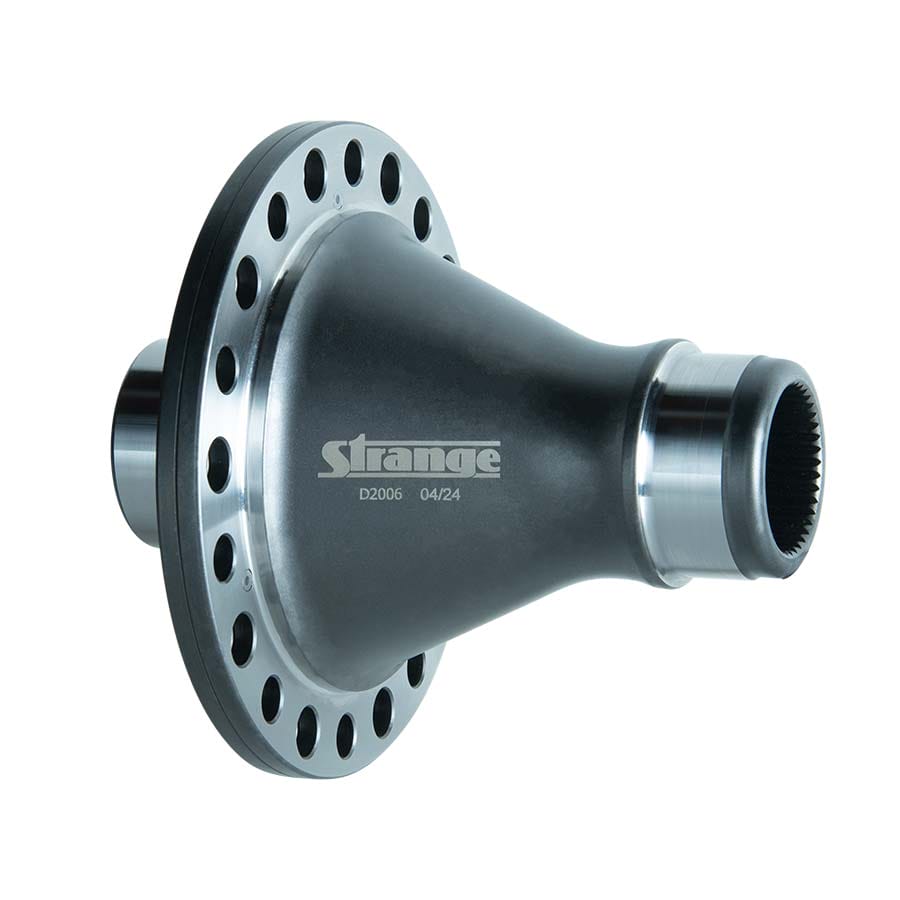

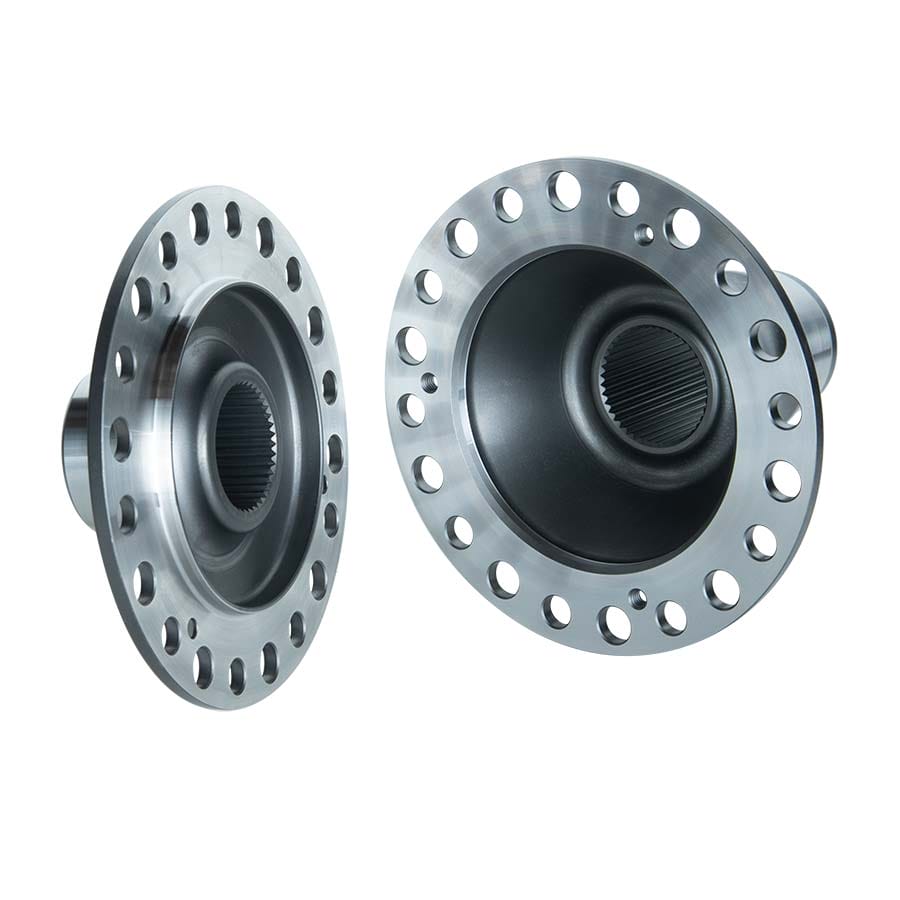

Strange 2-Piece 40 Spline Steel Spool
Fits Ford 9" With Strange 3.812" Bore Case

$650.00

Part Number: D2006


Two Piece Steel Spool
• For 40 spline axles
• Fits Strange 3.812″ bore cases
• HD Pro Case / Ultra Case / Billet Ultra Case
• Billet case requires special ring gear bolts

Features
• 2-piece rigid geometry without a large weight increase
• 51% increase in bending stiffness over D2002 spool
• Increased ring and pinion life
• Machined from 8620 forged steel
• 2.250″ bearing journal for additional strength
• Broached 40 spline with 45° pressure angle
• Assembled & machined after heat treat to ensure concentricity
• Designed and machined by Strange Engineering
• Forged in the USA

Weighs – 9.09 lbs

Related
Spool Bearings – D1592
Billet case 7/16″ ring gear bolts – N1975BC
Billet case 1/2″ ring gear bolts – N1976BC
Axle packages – P1014 / P1020


Description

2-piece 40 spline steel spool for Strange 3.812″ bore case
