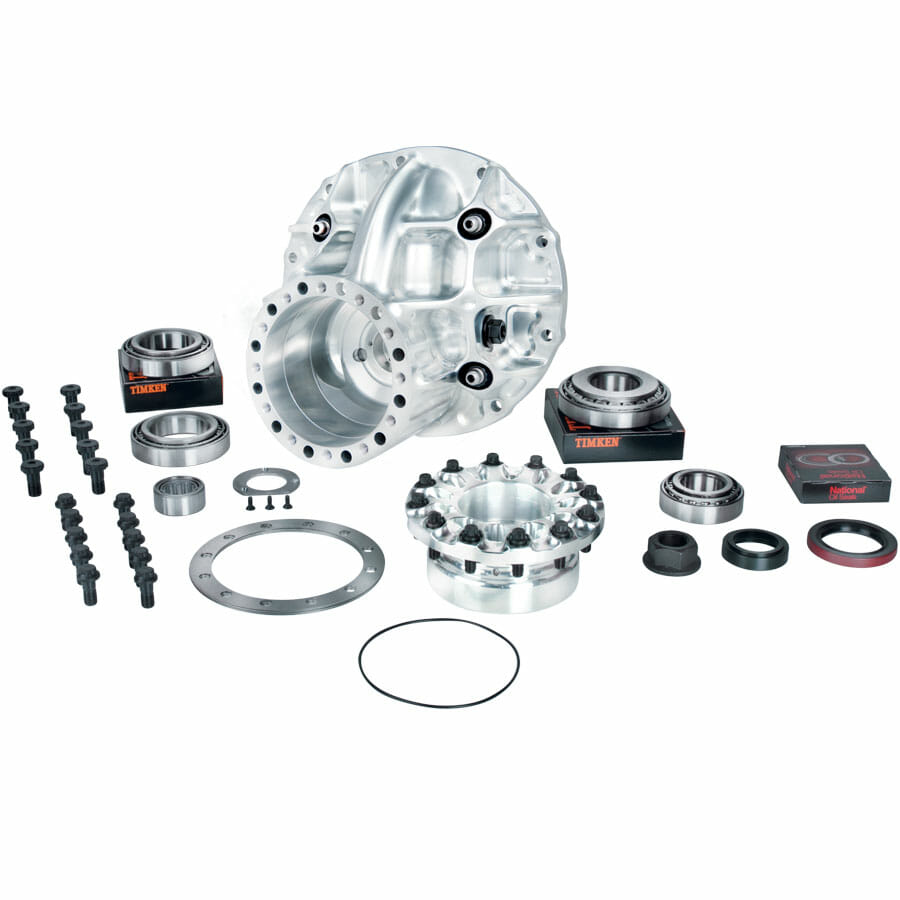

Strange Billet Case and Support Package
3.812" Bore Case & Tapered Bearing Support
With Installation Kit For 9" or 9 1/2" 35 Spline Pro Gears

$3,750.00

Part Number: P5381LT


Designed Specifically For Drag Racing
This Case May Not Fit Your Housing
Refer to the clearance diagrams shown on this page

Application
Pro Mod
Alcohol Funny Car
Top Dragster
Drag Radial
Outlaw 632
Radial vs The World
Radical high horsepower vehicles

Additional Parts Required
Strange HD 40 spline spool
9″ or 9 1/2″ Pro gear set
35 spline yoke or coupler
Gasket

9 1/2″ Gear Set
Check gear clearance diagram

Includes

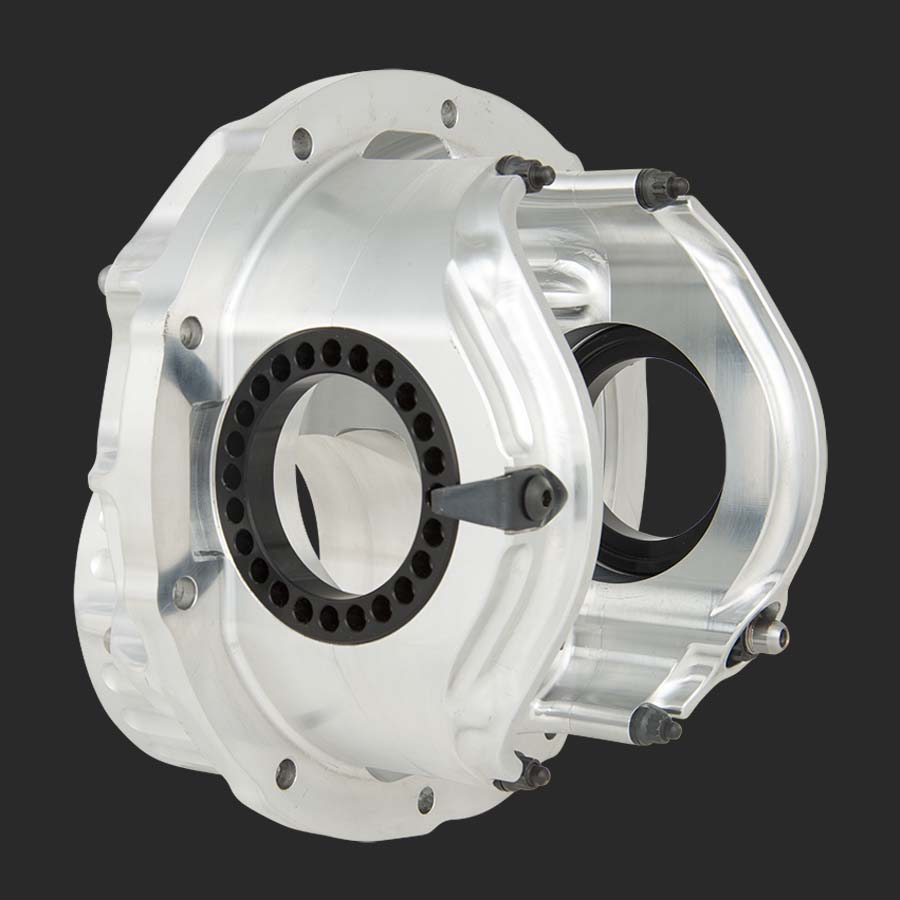

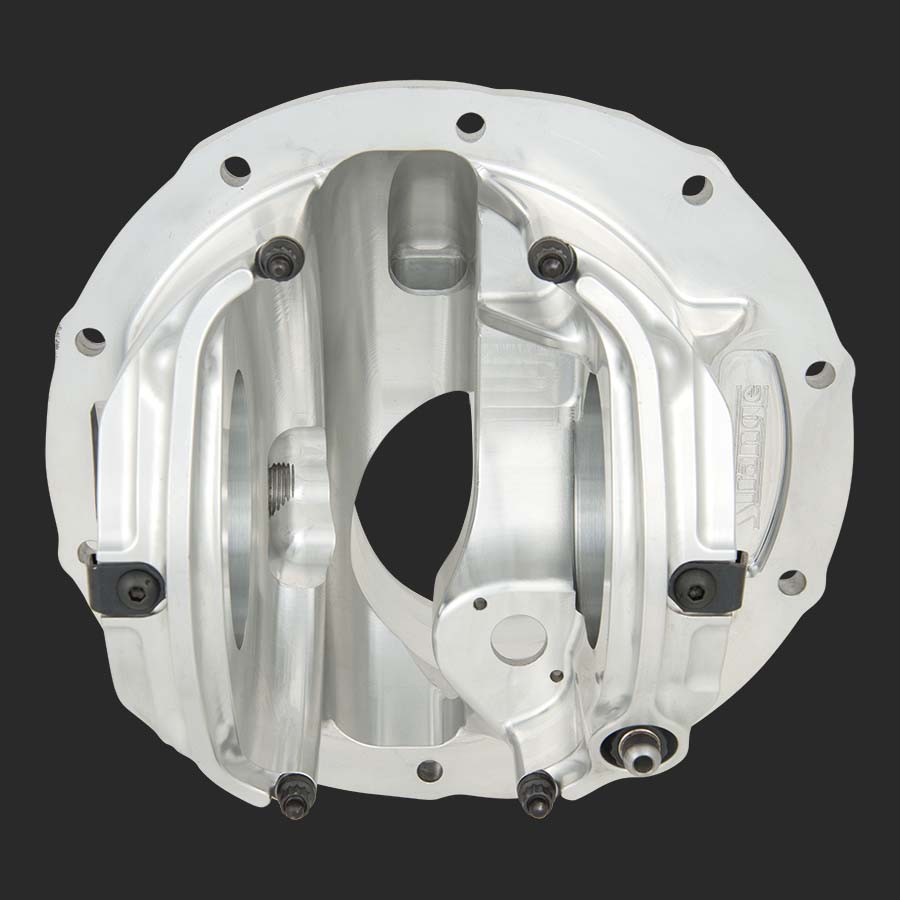

Billet CaseN1912PM
• 7075-T73 Aerospace aluminum case
• Vibratory stressed relieved
• Solution heat treated
• Type II anodizing
• .650″ thick mounting flange
• Large oil scavenging channel
• Raised cross rib design
• Wrap around designed main caps
• AISI 8740 steel bullet end main studs
• Massive wall sections in tail bearing area
• Extensive lightening
• Designed & machined by Strange
• Material made in the USA

Tapered Bearing SupportN1950AB
• 2024-T351 billet aluminum support
• For tapered pinion bearings
• Designed for 9″ & 9 1/2″ gear sets
• Milled for maximum weight reduction
• Clear anodized

Installation Parts
• Front and rear pinion bearings
• Rear bearing spacer
• One piece solid preload spacer – Machine to fit
• Pinion depth shim kit
• ARP support bolts and o-ring
• Pinion seal and flanged nut
• Oversize tail bearing with retainer plate and screws
• Side bearings and races
• ARP 7/16″ & 1/2″ ring gear bolts

Related
HD 40 spline spool – D2002
Load bolt (Not for lightened gears) – N1910T
Yoke / Coupler – U1604 / U3629
Gasket – H1111 / H1111S


Description

Billet Case & Support Pkg with Tapered Brg Support- For 9 / 9.5″ 35 Spline Pro Gears

Parts List and Overview pdf
