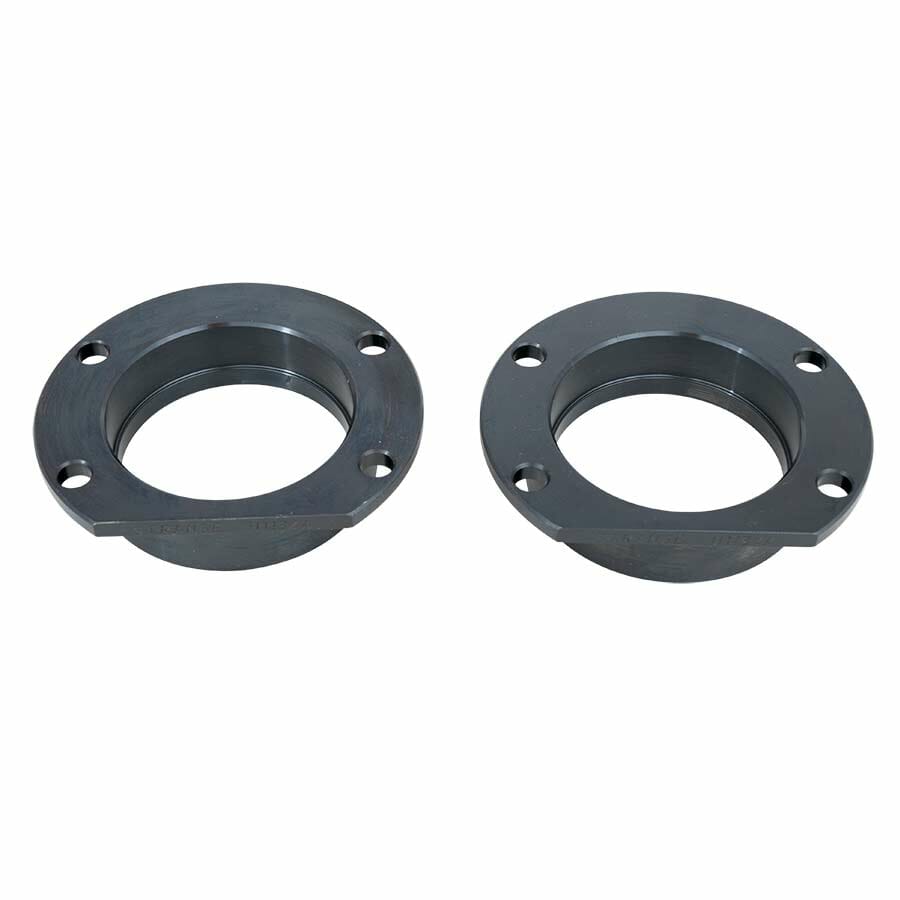

Housing Ends 1965-1973 Small Ford

$180.00

Part Number: H1134

Description
Strange Housing Ends
Sold as pair

Requires
O-Ring Style Axle Bearings
Special Retaining Plates

Features
• 1026 billet steel
• Butt weld design
• For 3″ or 3 1/4″ OD tubing
• Black oxide finish
• Designed & machined by Strange
• Material made in the USA

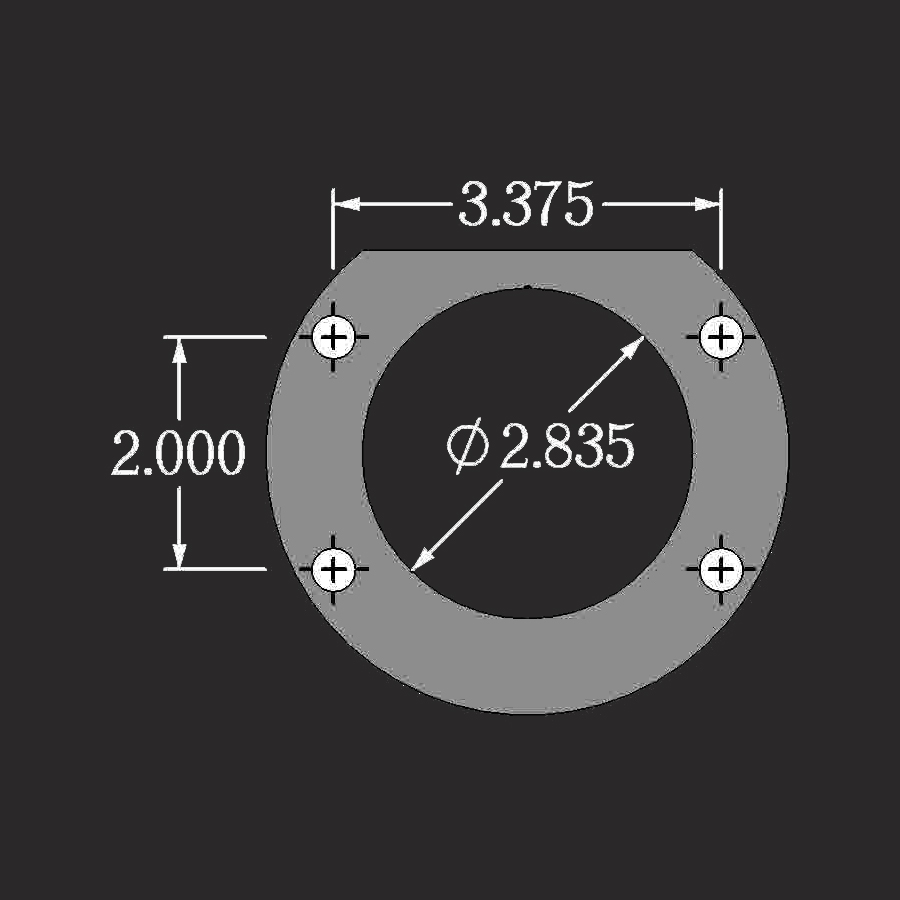

Dimensions
– 1.00″ total width
– .250″ wide flange
– 2.842″ ID x .688″ deep bearing bore
– 3.350″ OD / 2.600″ ID at tube end

Typical Axle Offset
2.500″ – Drum
2.625″ – Strange Disc

Related Components
Axle bearing…………….. A1023A
Retainer plate………….. A1023B
Bearing & plate…………. A1023

Axle Packages
Alloy………………………….. P3104
With spool………………… P3104S

Pro Race……………………. P1008
With spool…………………. P2005

Description

Small Ford housing ends- pr.
