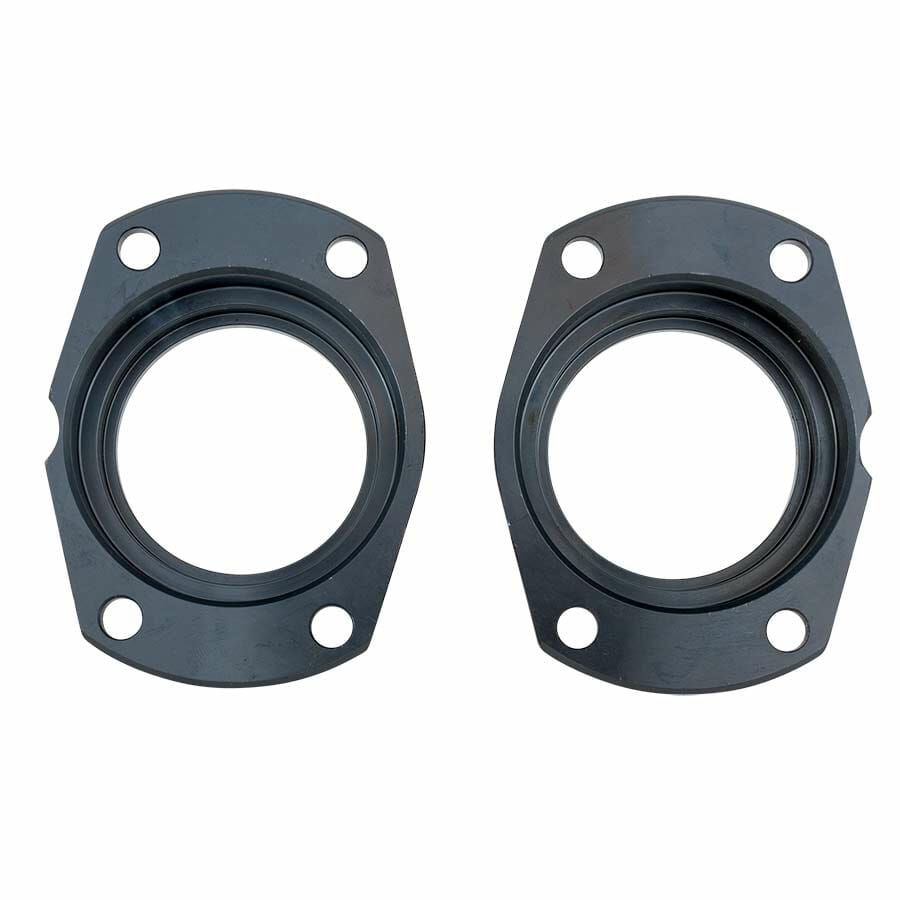

Housing Ends Late Big Ford - Clearance For ABS Sensor

$160.00

Part Number: H1148

Description
Strange Housing Ends
Sold as pair

Clearance For 05-12 Mustang ABS Sensor

Requires
O-ring style ball bearings
or
Outer seal unit bearings

Features
• 8620 forged chrome moly steel
• Butt weld design
• For 3″ or 3 1/4″ OD tubing
• Black oxide finish
• Designed & machined by Strange
• Material forged in the USA

Dimensions
– 1.300″ total width
– 0.281″ wide flange
– 3.152″ ID x .680″ deep bearing bore
– 3.250″ OD / 2.515″ ID at tube end

Typical Axle Offset
3.250″ – Factory
2.585″ – With offset caliper mounts

Related Components
Hsg end stud kit………. B1300HSTKIT

Offset Caliper Mounts
For tapered bearings….. B1706NC
Using ball bearings……. B1706NCB

Axle Bearings
1.531″ ID………………………. A1020
1.562″ ID ball………………… A1021
1.562″ ID tapered…………. A1013
1.772″ ID………………………. A1019

Axle Packages
Alloy…………………………….. P3102
With spool…………………… P3102S

Pro Race………………………. P1007
With spool……………………. P2007

Description

Late Big Ford hsg end mod for 05-12 Must ABS sensor- pr

Parts List and Installation Guide pdf File
