Application
GM Leaf Spring Vehicles
Description
12 bolt housing
Includes tubes, choice of leaf spring mounts & housing ends
Features

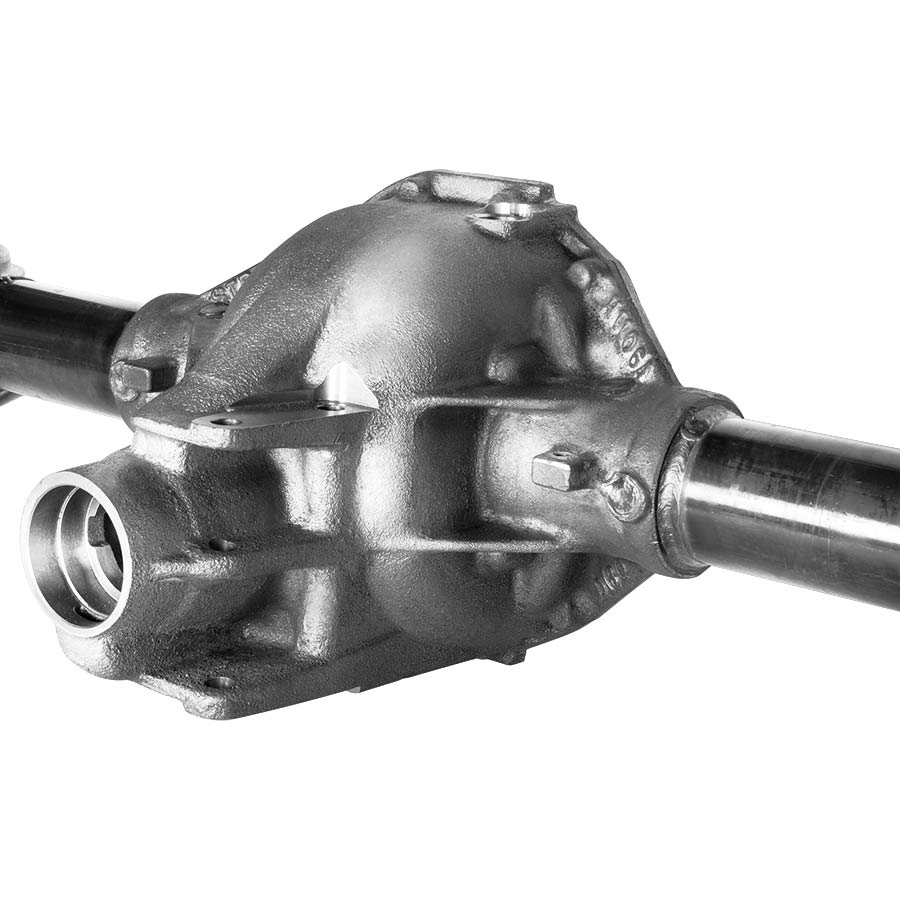

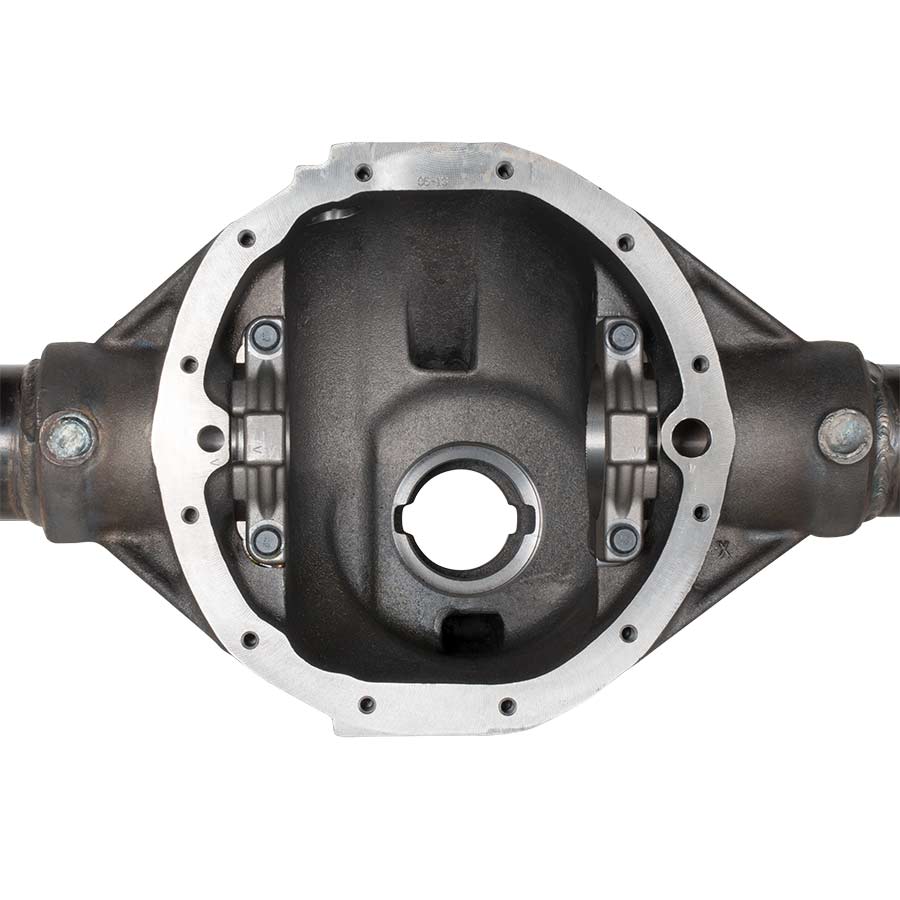

Nodular iron center – H1106A
– Chrome moly main caps
– Plug provided to seal sensor hole
– Accepts 12 bolt internal components
3″ x .250″ Wall Tubes – H1139
– Seamless DOM mild steel

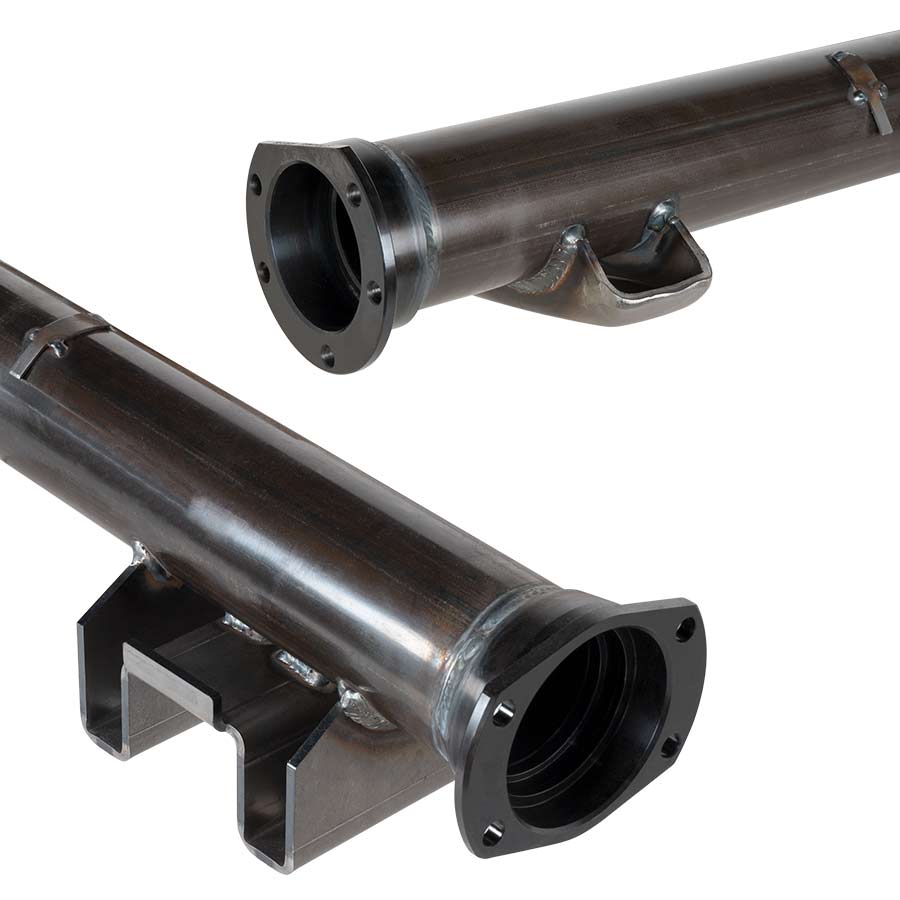

Choice Of Leaf Spring Mounts
– Single leaf, Multi-leaf, Early Chevy, & Universal
– Same price for OEM or custom locations
Note
Universal mounts can be “boxed” for an additional charge
Choice Of Housing Ends – H1143 / H1132 / H1137
– Forged chrome moly
– Accepts 3.150″ tapered or ball style bearings
– Other Strange housing ends are also available
Choice Of Housing Width
– Factory or made-to-order width
– OEM or custom pinion offset
– No additional charges
Professionally Welded
– Jig welded to ensure proper alignment
– Tubes plug & 360° welded to casting
– Eliminates tube rotation issues
Related Components
Powder coat housing…………. H1199P-BLK
Chrome cover…………………………. R5199
LPW cover………………………… R5206 / R5207
Cover gasket………………………….. H1106G
Gear install kit…………………………. R5211
Alloy Axle Packages
30 spline………………………….. P3104 / P310458
33 spline with spool……….. P3304S / P330458S
35 spline with spool……….. P3504S / P350458S
Pro Race Packages
33 or 35 spline with spool… P2005 / P200558
