1982-2002 Camaro / Firebird Bolt-In Rear End
Strange 12 Bolt With Drag Race Axles,
5/8" Stud Kit, Spool & Pro Gear

$2,975.00

Part Number: PRG23058


Strange 12 Bolt Complete Rear End – Less Brakes
33 or 35 spline axles, L/W spool, 5/8″ studs & Pro gear set
No additional charge for custom width

1982-2002 Camaro / Firebird / Trans Am
• Aftermarket torque arm may need to be modified

Features
• OEM lower control locations with multiple height mounting holes
• Additional holes enhances chassis tuning abilities
• Factory .520″ pinion offset to passenger side

Information Needed
Year of vehicle
Stock or custom width
Type of brakes
Housing ends
Gear ratio
Axle spline
Stud choice

Includes
• 12 bolt housing – H12FME
• Drag Race 33 or 35 spline axle package – P100758 / P100858
• Choice of bolt circle
• Choice of 5/8″ stud kit – A1027 / A1037 / A1038 / A1039 / A1041
• 33 or 35 spline spool – D1540 / D1549 / D1542 / D1541
• Choice of gear ratio
• S-Series pinion yoke with U-bolts – U1602 / U1610
• Chrome steel cover – R5199
• Professionally welded and assembled
• Crated to protect your investment

Options
Ultra Lite axle flange – A1006
Chrome moly yoke – OPRG17
HD yoke cap kit – OPRF37

LPW aluminum cover – OPRG10
Powder coat housing satin black – H1199P-BLK
Supply 3 quarts of Lucas gear oil – OPGL3Q

Related
Disc Brake Kit
B1718WC / B1718WC2 / B1718WCD / B1718WCD2

There’s a nominal charge to install brake kit


This product is only available from an Authorized Strange Dealer or Factory Direct Call - 800-646-6718 or Email Us

Description

F-Body 12 Bolt Rear End

Whether you prefer street or strip, building horsepower for your GM F-Body platform can only get you so far in drag racing. Eventually, you’re going to have to get all those ponies to the pavement. That’s where the Strange Engineering’s F-Body 12 Bolt Rear End comes into play.

The Strange 12 bolt casting is much stronger than an OEM 12 bolt housing, while still accepting the same components. The Strange casting is created from proprietary nodular iron formula which is much stronger than cast iron. Then by integrating expertly welded F-Body mounts for the chassis, the Strange F-Body 12 Bolt rear end provides a vast improvement to the weaker 10 bolt rears found in most F-Body cars.

Strange has designed the torque arm mount as part of the case which also allows for a 3 channel ABS sensor. It is a replacement for the extremely weak 7.625”, but can also be used in any leaf spring application. Our F-Body 12 Bolt Rear End may also be purchased with no mounts or with leaf spring mounts to fit other high-performance applications.

Which one is right for you.

The Strange F-Body 12 Bolt Rear End is available in any state of completion from a bare housing to a fully built differential. Race Axles (33 or 35-spline) and axle tubes may be ordered in factory length or custom made to accommodate your wheel and tire setup. Wheel studs are offered in your choice of 12mm, .500-inch or .625-inch diameter and numerous bolt circle configurations.

Gear sets and axles may be selected in standard or Pro Race and complete Strange 12 bolt rear ends come with a steel cover (aluminum cover available), S-Series pinion yoke, and pinion yoke u-bolt set. Strange Engineering rear disc brake packages are sold separately.

You may also like…

  • A1006-Ultra Lite Axle Flange Option  For New Pro Race Axles - Pair

    Ultra Lite Axle Flange Option – Pair For New Pro Race Axle Orders

    PN : A1006
    $100.00
    Read more

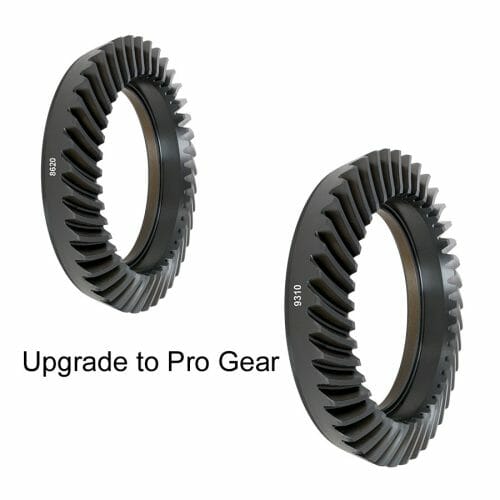

  • Upgrade To Pro Gear For Strange 12 Bolt Drag Race Rear End
