Strange Ford 31 spline axle 8.8 C-Clip 1999-2004 Mustang.

Strange Ford 8.8 31 Spline C-Clip Axles For 1999-2004 Mustang – Pair

$250.00

Part Number: P3111

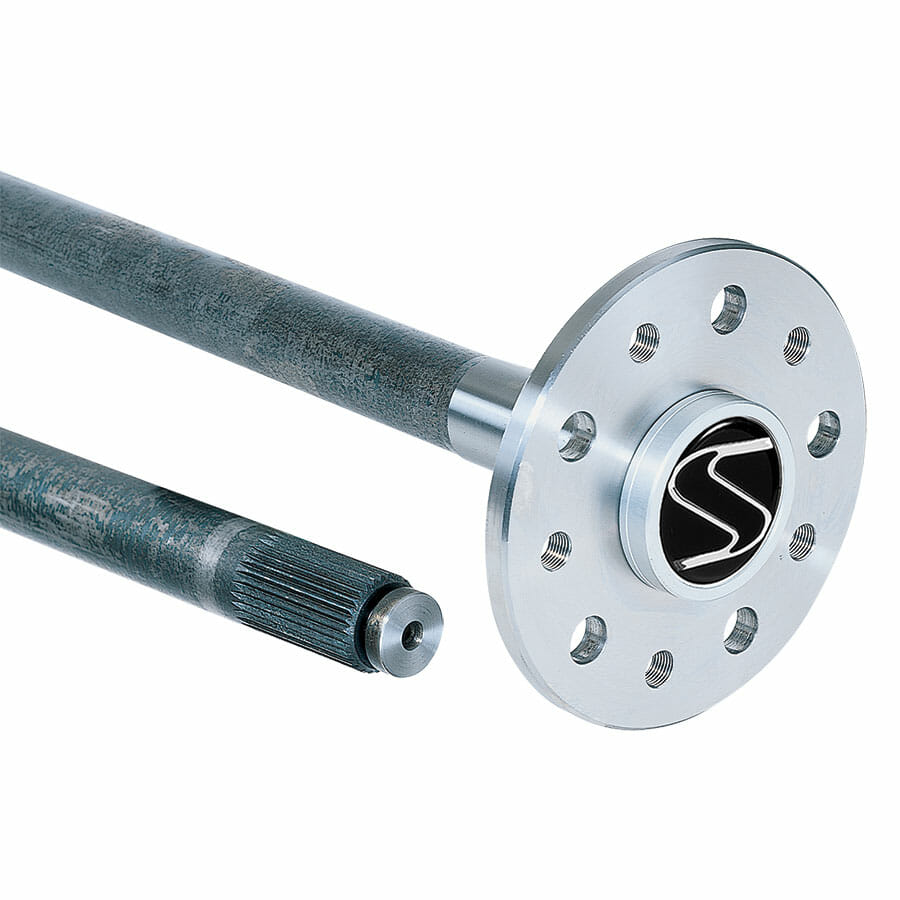

Ford 31 spline axle 8.8 C-Clip for 1999-2004 Mustang
Sold as pair

Alloy axle packages are optimized for street & track use
See our Hy-Tuf axles for maximum torsional strength for all out Drag Racing

Fits factory width 1999-2004 Mustang with 8.8 rear and OEM housing ends

Strange C-Clip Axles
– Updated material and machining technology to replace old and fatigued OEM axles
– Replaces axles damaged by bearing failure
– Reduces end play caused by worn clip grooves
– Perfect addition to a rebuilt rear end

Alloy Axles
– Forged from modified 1550 premium steel
– Majority of machining performed before heat treat to provide consistent hardness
– Induction hardened to Rc 62 to increase torsional strength while remaining ductile
– Finish machined after heat treat to ensure accuracy
– 31 spline
– 30.62″ in length (Measured from outside face of flange to axle tip)
– Dual 4 1/2″ bolt circles for either OEM 1/2″ press-in studs or 1/2″-20 screw-in studs
– Designed to accept OEM reluctor rings, replacement bearings, seals, and clips
– Forged in the USA
– Designed and machined by Strange Engineering

Optional Components
OEM reluctor ring……………… See A1094S
Bearing and seal kit…………… See A3120K
1/2″-20 press-in studs……….. See A3121
1/2″-20 x 2″ screw-in studs… See A1025
1/2″-20 x 3″ screw-in studs… See A1026

Press-in studs are OEM length
Screw-in studs are measured from underneath the hex of the stud to the tip

Other Mustang C-Clip Axles
1994-1998…….. See P3110
2005-2014…….. See P3112

Alloy Axle Package With Eliminator Kit
1994-2004………………. See P3109F94

Pro Race Package With Eliminator Kit
1994-2004………………. See P1011F94

Description

Ford 31 spline axle 8.8 C-Clip for 1999-2004 Mustang

Strange Engineering Alloy axles are the gold standard when selecting a pair of custom axles for your Ford 8.8 31 spline axles. Strange C-Clip Style axles are significantly stronger than the typical OEM axles.

The Alloy axles are made from a high-forged alloy steel, are CNC-machined, and there is just a two-day turn around time on custom axles ordering. They are designed to fit Ford 31 spline axle 8.8 applications for the ’94-present Ford Mustangs. The affordable Strange S-Series Alloy C-clip axles do not require any modification to the factory housings and will work with factory bearings, seals and studs.

It should be noted that with all the heat treatment, Strange Engineering does all of its machine work on the splines prior to heat treatment. Including the 31 spline 8.8 axles. That allows for consistent heat treat depth, leading to a stronger axle. Through this process the axle can withstand tremendous power while still being able to handle lateral and bending loads.

Some companies heat-treat the materials before the splines are machined into the axle, which causes it to be weaker despite the shiny look.

Of course when your reputation is on the line only Strange custom axles are the product to get the job done. Choose your components wisely!
