Custom made to your specifications
Factory or custom widths available at no additional charge
Choice of housing ends
Professionally welded and assembled
Crated to protect your investment
Note
Ordering a rear end in this state is not recommended
Great care must be taken when performing any further welding
Housing end alignment should be re-checked once completed
Standard Gear Choices
3.08 / 3.42 / 3.55 / 3.73 / 3.90 / 3.91
4.11 / 4.30 / 4.56 / 4.88 / 5.14 / 5.38 / 5.57
Optional Pro Gears
4.11 / 4.30 / 4.33 / 4.56 / 4.88
5.14 / 5.38 / 5.57 / 5.86 / 6.00 / 6.14
Assembly Includes
12 bolt housing with ends installed – H12FE

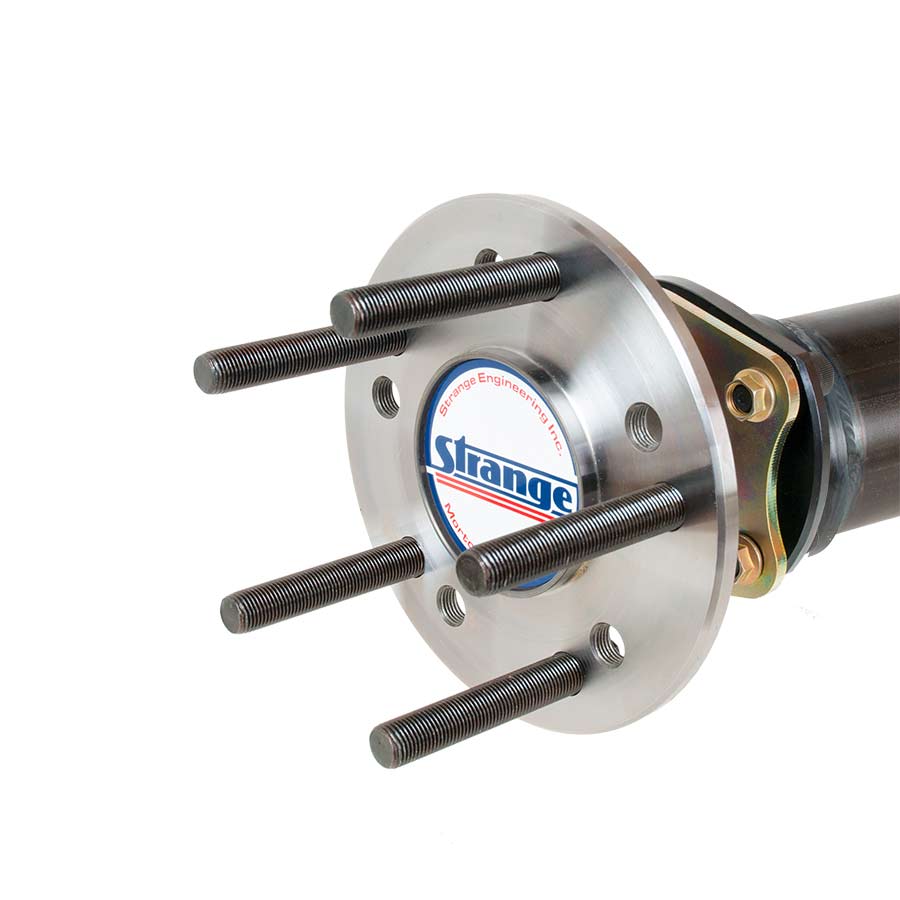

33 or 35 spline Pro Race Axle & Spool Package – P2007 / P2005
4 1/2″, 4 3/4″, or 5″ bolt circle
Choice of 1/2″ stud kit – A1025 / A1026
Standard gear set
Choice of gear ratio
S-Series pinion yoke – U1602
Pinion yoke u-bolt kit – U1610
Chrome steel cover – R5199
Fully crated – No extra charge
Upgrades
Ultra Lite axle flange………………. A1006
5/8″ stud kit…………………………… OPRS14
Pro gear………………………………… OPRG01
Chrome moly yoke……………….. OPRG17
LPW aluminum cover……………. OPRG10
Option
Supply 3 qts Lucas gear oil…… OPGL3Q
Drag Race Brake Kits
Pro Series……………………………. B1718WC *
Pro Dual……………………………… B1718WCD *
* There is a $25 labor charge to install brake kit
Examples only – Many more brake kits available
