Strange Ultra Case Installation Kit                                                                   Using Tapered Bearing Support & 28 Spline Pinion Gear

/, Drag Race, 9" Center Sections & Parts, 9" Center Sections & Parts, Installation Kits, Ford, Ford, 9" Center Sections & Parts, 9" Center Sections & Parts, Installation Parts & Kits/

Strange Ultra Case Installation Kit                                                                   Using Tapered Bearing Support & 28 Spline Pinion Gear

Strange Ultra Case Installation Kit                                                                   Using Tapered Bearing Support & 28 Spline Pinion Gear

$220.00

Part Number: R5237UCR

Application
For Ultra Case tapered bearing support – N1950A / N1951A
Installing 28 spline pinion gear

Features Timken Bearings & Races

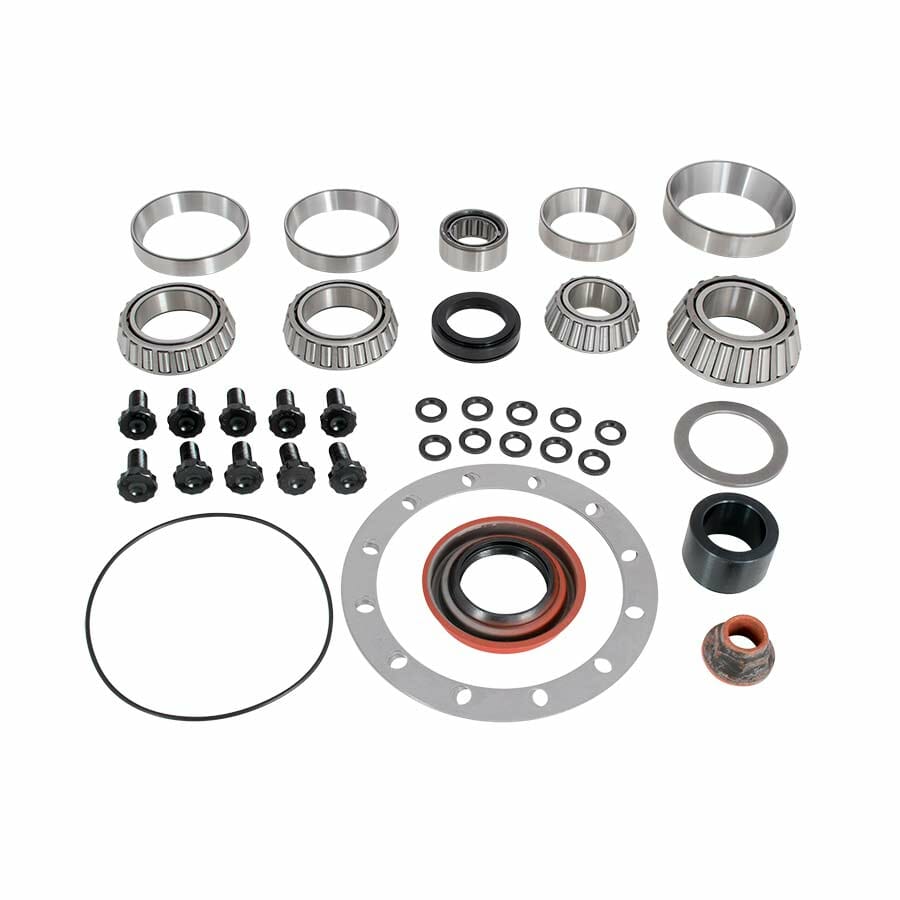

Kit Includes

Front and rear pinion bearings and races
Side bearings and races – D1590 or D1592
Tail bearing – N1943
Pinion seal – N1960
Pinion support o-ring – N1950B
Flanged pinion nut – N1922A
Solid machinable pinion preload spacer – N1924A
Adapter collar and spacer washer – N1926A / N1926D
Pinion depth shim kit – N1962UC

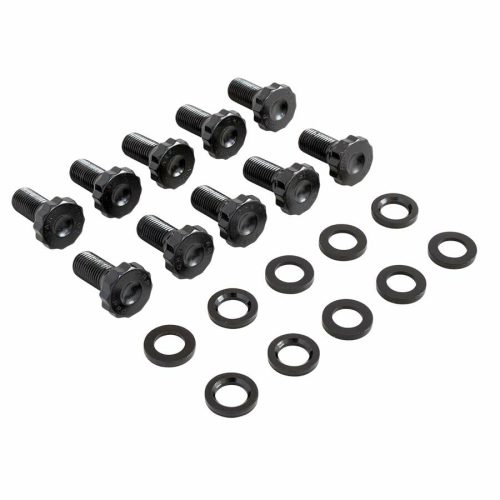

Ring gear bolts & washers – N1975 or N1973

Information Required

Case Bore Size
3.250″ / 3.812″

Note
For 4.00″ bore – Please call

For Strange Spool
Steel or Aluminum

For Other Spools
The ring gear bolts supplied are designed for a flange thickness of .375″ to .447″
If your spool exceeds .447″, the ring gear bolts may be be too short
Specify if using an aluminum spool


Related Components

Kit without pinion races………… R5237UC
Kit for 35 spline pinion…. R5238UC / R5238UCR
Fel Pro gasket……………………….. H1112G
Fel Pro Teflon® gasket………….. H1111
Lube Locker gasket……………….. H1111S

Description

Ultra Case installation kit for tapered pinion support & 28 spline pinion

Additional information

Weight 6.15 lbs
