Custom made to your specifications
Factory or custom widths available at no additional charge
Choice of housing ends
Professionally welded and assembled
Crated to protect your investment
Gear Ratio Selection
3.54 / 3.73 / 4.10 / 4.30 / 4.56 / 4.88 / 5.13 / 5.38
Assembly Includes

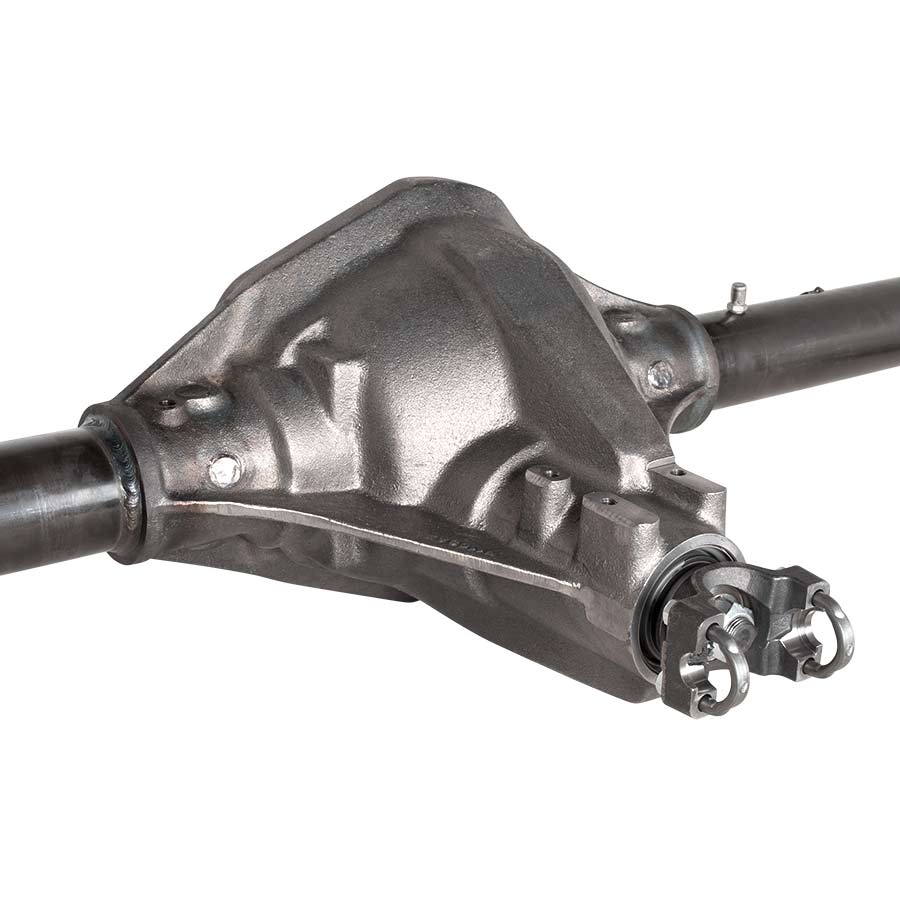

S60 housing with ends / No mounts – H60E
35 spline Alloy Axle Package – P3502 / P3504
4 1/2″, 4 3/4″, or 5″ bolt circle
Choice of wheel stud kit – A3130 / A3151 / A3162 / A1025 / A1026
35 spline Trac-lock differential – D3537 / D3538
Selection of gear ratio
S-Series pinion yoke – U1600
Pinion yoke u-bolt kit – U1610
Dana / Spicer steel cover – D3505
Bottle friction modifier (Clutch posi units only)
Fully crated – No extra charge
Upgrades
Helical gear differential…………. OPRS02
Detroit Locker……………………….. OPRS01
5/8″ stud kit…………………………… OPRS12
Chrome moly yoke………………… OPRS18

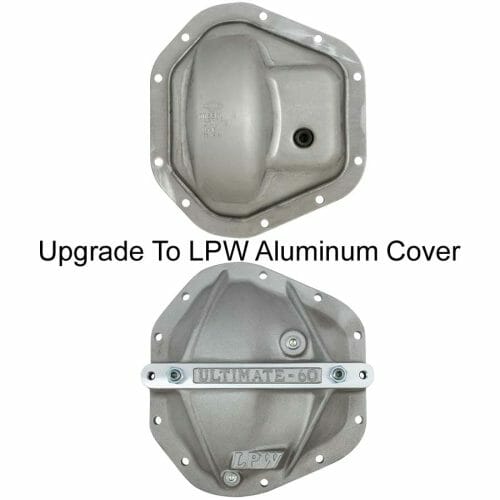

LPW aluminum cover…………….. OPRS06
Strange aluminum cover……….. OPRS08
Black powder coat housing… H1199P-BLK
Option
Supply 2 qts Lucas gear oil…… OPGL2Q
Related Components
Fixed pinion snubber……………. D3520
Adjustable pinion snubber……. D3521
