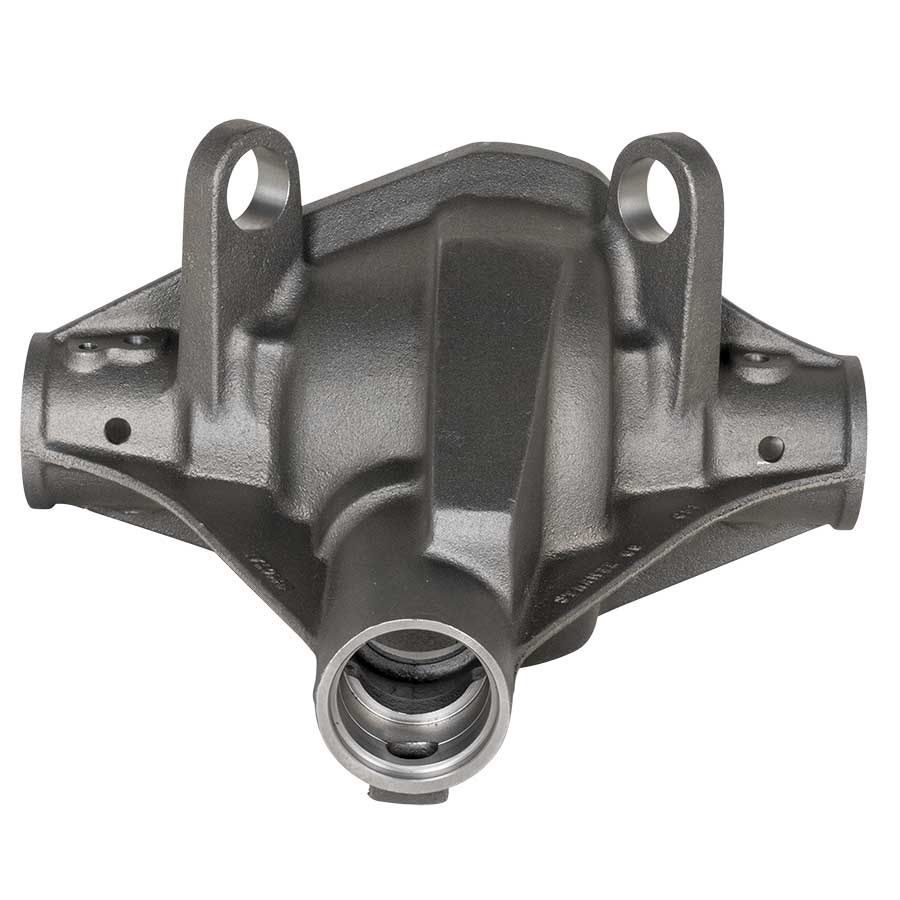

S60 Bare Casting
With G-Body Upper Control Arm Mounts

$535.00

Part Number: H1108A

Application
S60 GM G-Body housing fabrication

Description
S60 G-Body bare casting

Features

Nodular Iron Casting
– G-Body upper control arm mounts
– Raised 3/8″ to improve traction

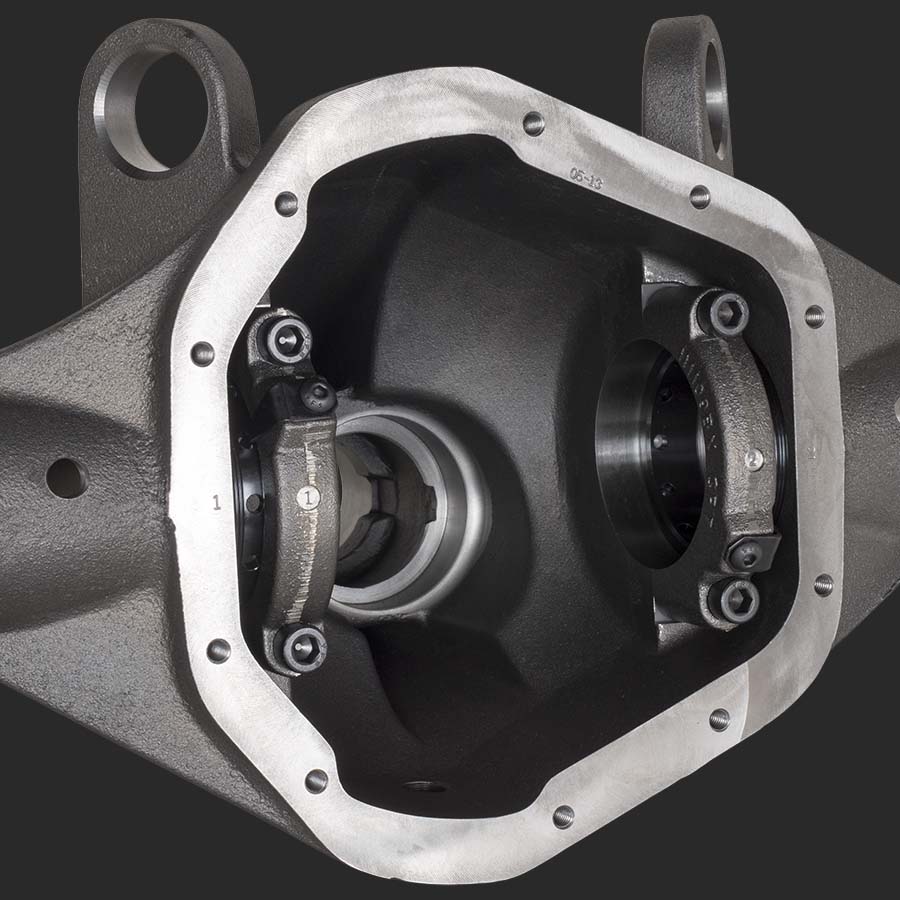

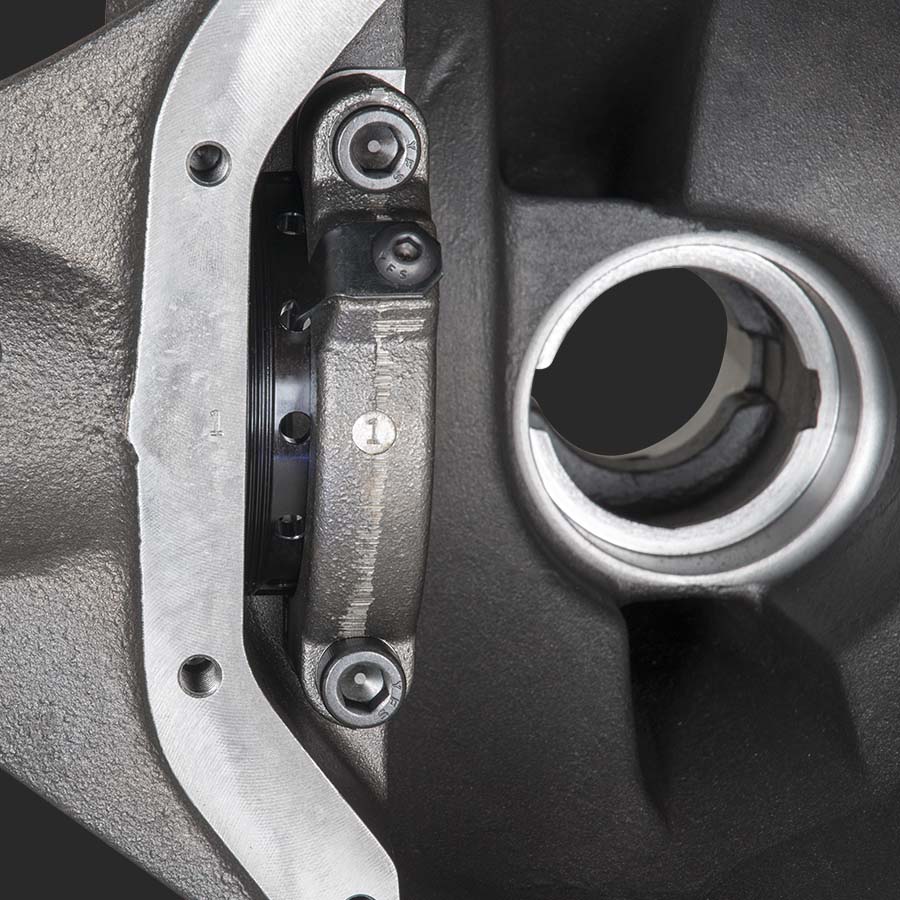

– Nodular iron main caps
– Adjuster nuts eliminate side bearing shims
– Greatly simplifies gear changes
– Accepts Dana 60 internal components *
– Uses 3″ OD tubing
– Designed & machined by Strange
– Casting made in USA

* Uses different side bearing races


Related Components

Adjuster nut wrench…………….. H1109D
3″ x .250″ wall tubing……………… H1139
Steel cover…………………………….. D3505
Strange aluminum cover……….. D3517
LPW HD aluminum cover………. D3509
Cover gasket…………………… D3508 / D3508F
Gear install kit……………………….. D3512

This product is only available from an Authorized Strange Dealer or Factory Direct Call - 800-646-7618 or Email Us

Description

S60 G-Body bare casting with ears / no tubes / no ends

Additional information

Weight 0.01 lbs
