Strange S60 Rear End
With Leaf Spring Mounts
35 Spline Pro Race Axles and Spool

$2,176.00

Part Number: PRSL10

Custom made to your specifications
Factory or custom widths available at no additional charge
Choice of housing ends and leaf spring mounts
Professionally welded and assembled
Crated to protect your investment

Standard Gears
3.54 / 3.73 / 4.10 / 4.30 / 4.56 / 4.88 / 5.13 / 5.38

Optional Pro Gears
4.10 / 4.56 / 4.88 / 5.38 / 6.17

Assembly Includes

S60 housing with leaf spring mounts installed – H60LE

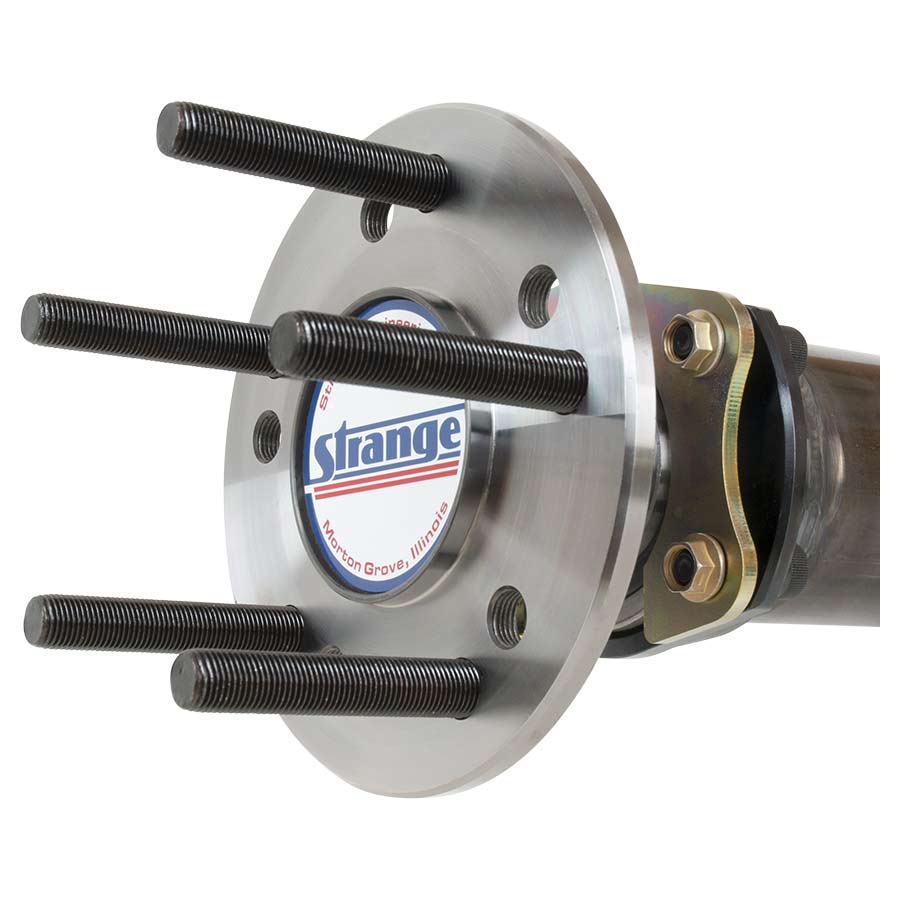

35 spline Pro Race Axle & Spool Package – P2007 / P2005
4 1/2″, 4 3/4″, or 5″ bolt circle
Choice of 1/2″ stud kit – A1025 / A1026
Standard gear set
Choice of ratio
S-Series pinion yoke – U1600
Pinion yoke u-bolt kit – U1610
Steel cover – D3505
Fully crated – No extra charge

Upgrades
Pro gear……………………………….. OPRS22
Ultra Lite axle flange………………. A1006
5/8″ stud kit………………………….. OPRS14
Chrome moly yoke……………….. OPRS18
LPW aluminum cover……………. OPRS06
Strange aluminum cover………. OPRS08
Black powder coat housing… H1199P-BLK

Option

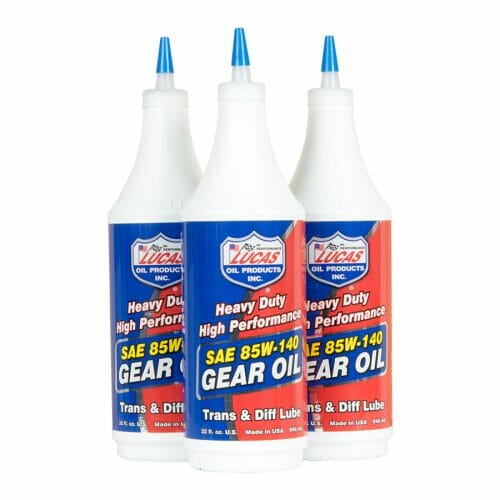

Supply 3 qts Lucas gear oil…… OPGL3Q

Related Components
Fixed pinion snubber……………. D3520
Adjustable pinion snubber……. D3521



This product is only available from an Authorized Strange Dealer or Factory Direct Call - 800-646-7618 or Email Us

Parts List and Installation Guide pdf File

Description

The Strange Dana 60 Rear End with leaf Spring Mounts (S60) is a huge improvement over the OEM Dana 60 rear axle while still accepting the same components.

Strange has designed a casting that is not only stronger but also thinner and lighter than the factory rear axle. The main caps and casting is made from a proprietary nodular iron. This formula is considerably stronger than cast iron. We eliminated the side carrier shims and the heavy duty main caps are fitted with adjuster nuts. The adjuster nuts allow the backlash and preload to be adjusted by a turn of a wrench. This in turn greatly reduces the time and effort to change a gear or differential.

The 9.750 inch ring gear can withstand a large amount of abuse. Equal to that of a 9 inch Ford gear, at a fraction of the price. It also happens to be more efficient, using less power to drive the ring and pinion. Comparing the weight to a similar 9 inch rear end the Strange S60 weights just 15 lbs more. If you compared it to an aftermarket 12 bolt it is around 20lbs more.

This S60 Rear End is equipped with a Strange Spool, Standard gear set, 35 spline Alloy axles, 12mm or 1/2” wheel studs, HD 1350 series yoke, u-bolt kit, and steel rear cover. Upgrades include 5/8” wheel studs, Pro Gear, chrome moly 1350 series yoke and satin black powder coated housing. The steel cover would also be powder coated when this option is ordered.

Additional information

Weight 0.01 lbs
