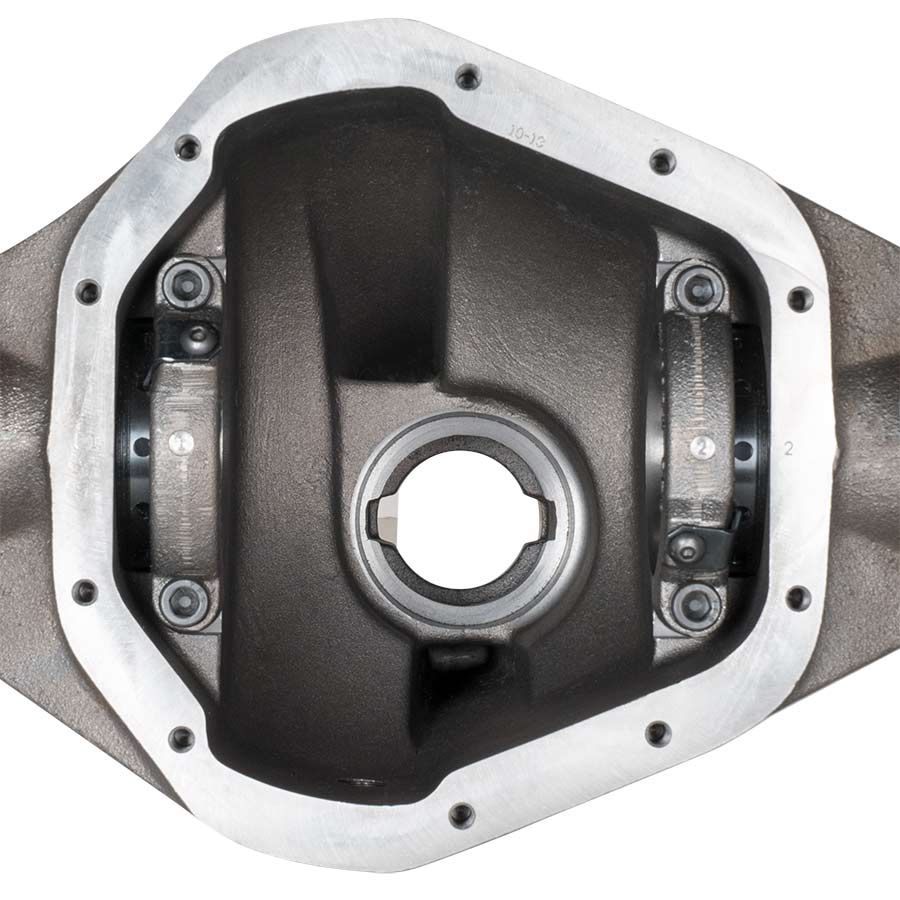

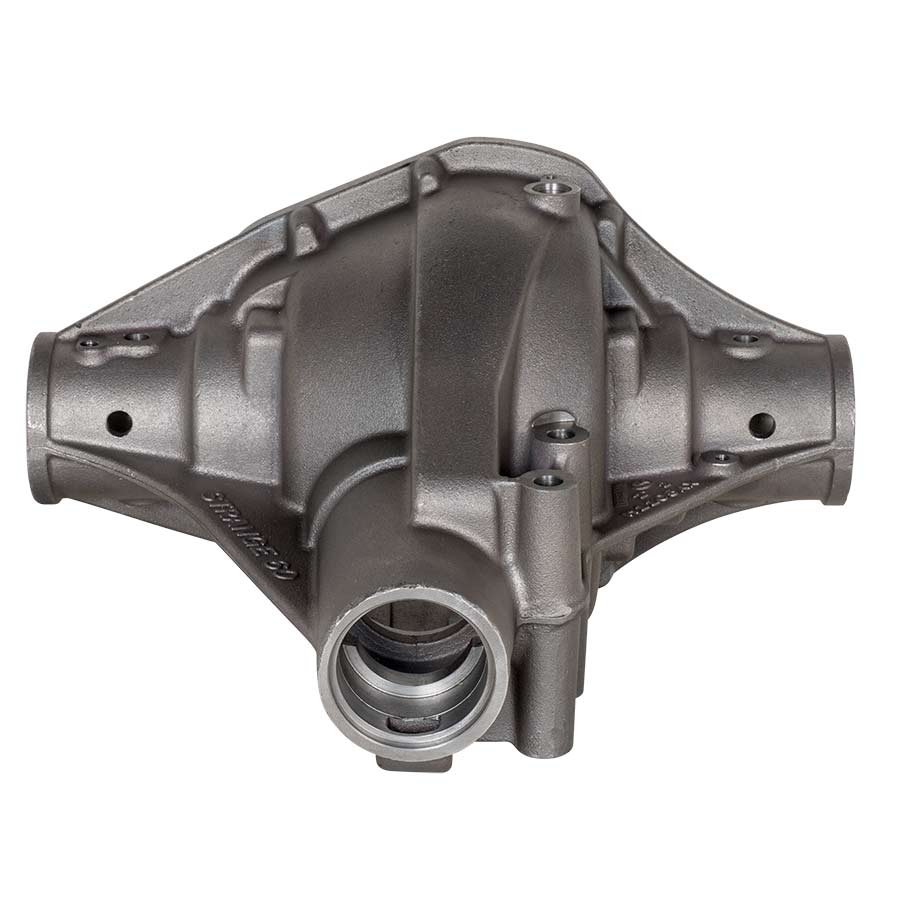

S60 F-Body Bare Casting                                                                                   With Torque Arm Provision

/, Drag Race, Housings / Components, S60 Housings, Street / Track, Street / Track, Housings / Components, S60 Housings, GM, GM/

S60 F-Body Bare Casting                                                                                   With Torque Arm Provision

S60 F-Body Bare Casting                                                                                   With Torque Arm Provision

$550.00

Part Number: H1105A

Out of stock

Application
S60 F-Body housing fabrication
Designed to accept 3″ OD housing tubing

• Premium Nodular iron
• Torque arm provision
• 3 channel pick-up sensor hole
• Nodular iron main caps

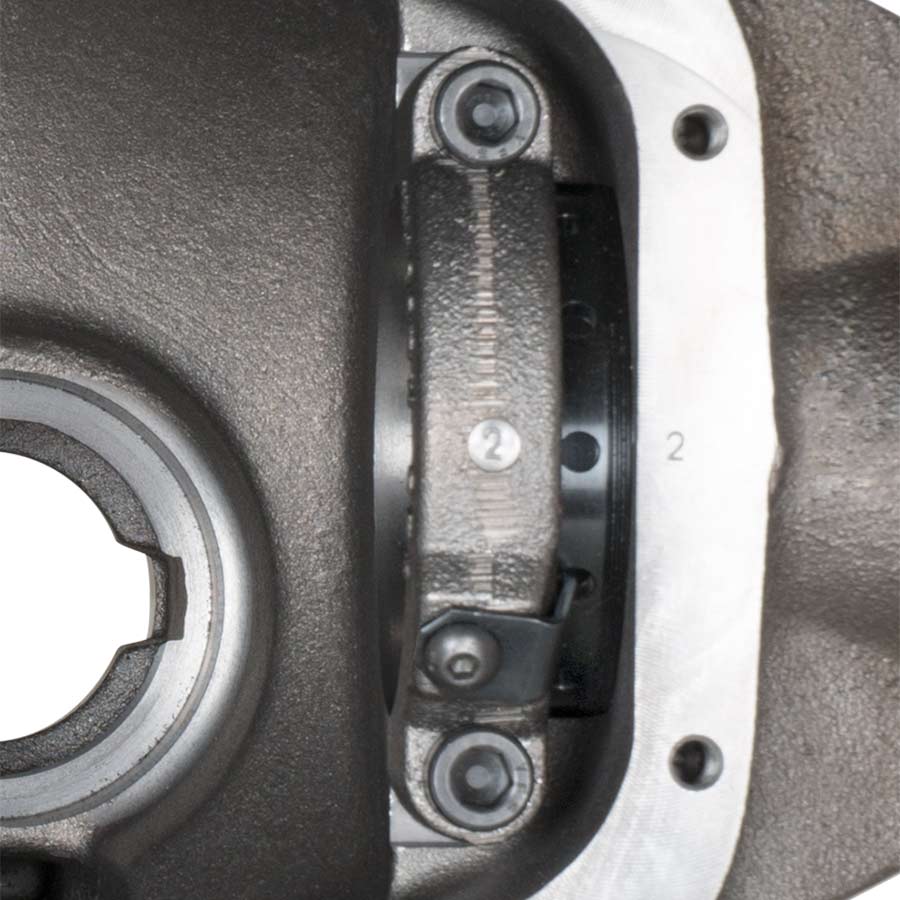

• Adjuster nuts eliminate side bearing shims
• Greatly simplifies gear changes
• Accepts Dana 60 internal components *
• Designed & machined by Strange
• Cast in USA

* Uses different side bearing races

Notes

3 Channel ABS
Will accept OEM sensor

4 Channel ABS or Without ABS
Requires plug, retainer ring, & o-ring



Related Components

Adjuster Nut wrench……….. H1109D
Plug…………………………………. H1105X
Retainer ring……………………. H1105Y
O-ring………………………………. H1105Z
3″ housing tubing……………… H1139
GM 3.150″ housing ends…… H1143
GM 3.150″ 4 channel ends… H1144

This product is only available from an Authorized Strange Dealer or Factory Direct Call - 847.663.1701 or Email Us

Description

S60 F-Body bare casting with torque arm provision

Additional information

Weight 0.01 lbs
