Strange S60 F-Body Housing – No Mounts
• Factory .520″ pinion offset to passenger side
• Custom widths available at no additional charge
1982-2002 Camaro / Trans Am
Additional Welding Should Only Be Performed By An Experienced Welder
Housing end alignment can be compromised causing serious issues

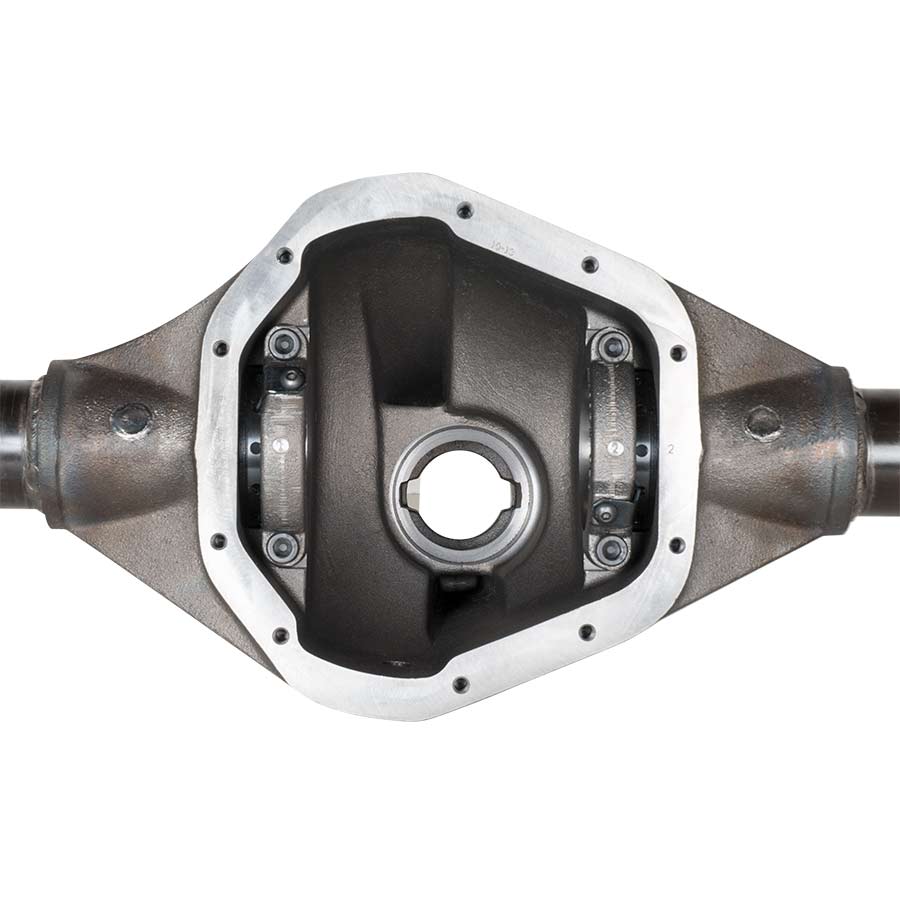

Nodular Iron Center – H1105A
• Integral torque arm provision
• Nodular iron main caps
• Adjuster nuts eliminate side bearing shims
• Greatly simplifies gear changes
• Three channel sensor hole
• Accepts Dana 60 internal components *
* Uses different side bearing races
Tubing
• Mild steel
• 3″ OD x .250″ wall

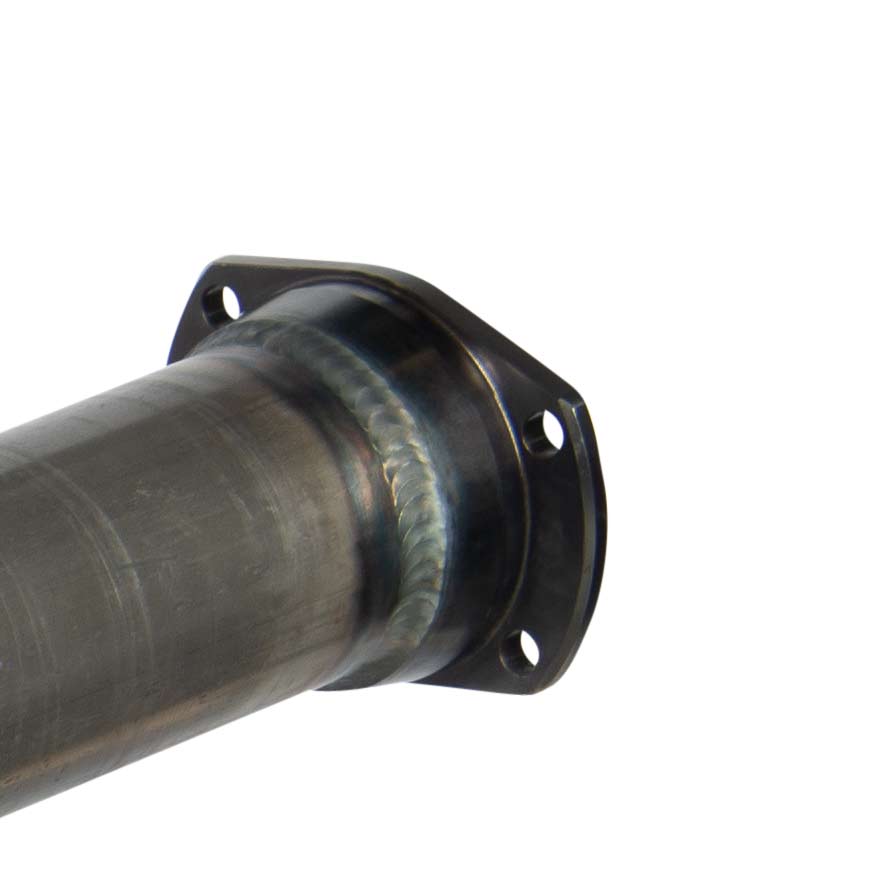

Housing Ends
• Forged chrome moly
• 3.150″ ends accept tapered or ball bearings
• Housing ends determined by the brakes
Professionally Welded
• Jig welded to ensure proper alignment
• Tubes plug & 360° welded to casting
• Eliminates tube rotation issues
• Exceptional weld quality
Aluminum Covers Will Not Clear Vehicle Obstructions
Related
Steel cover – D3505
Cover gasket – D3508
Installation kit – D3512
Adjuster nut wrench – H1109D
Alloy axle package – P3502 / P3504
Pro Race axle package – P1007 / P1008 / P1014 / P1016
Street brakes – B2708WC / B2709WC
Drag brakes – B1718WC / B1718WC2
