Strange Ultra Case Installation Kit                                                                   Using Ball Bearing Support & 28 Spline Pinion Gear                                         Front Pinion Race Is Not Included

/, Drag Race, 9" Center Sections & Parts, 9" Center Sections & Parts, Installation Kits, Ford, Ford, 9" Center Sections & Parts, 9" Center Sections & Parts, Installation Parts & Kits/

Strange Ultra Case Installation Kit                                                                   Using Ball Bearing Support & 28 Spline Pinion Gear                                         Front Pinion Race Is Not Included

Strange Ultra Case Installation Kit                                                                   Using Ball Bearing Support & 28 Spline Pinion Gear                                         Front Pinion Race Is Not Included

$275.00

Part Number: R5237UCB

Application
For Ultra Case ball bearing support – N1952A / N1953A
Installing 28 spline pinion gear

Front Pinion Race Is Not Included

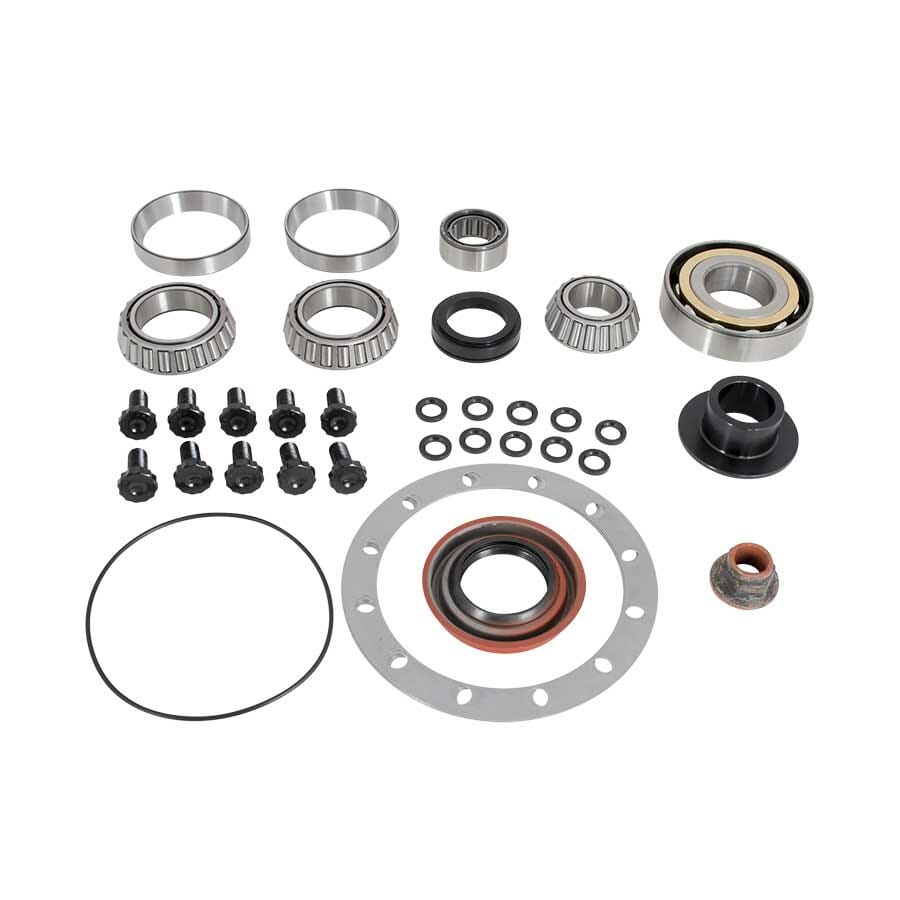

Kit Includes

Timken® tapered front pinion bearing
Rear angular contact ball bearing assembly – N1920B
Adapter / spacer sleeve – N1920G
Timken® side bearings and races – D1590 or D1592
Tail bearing – N1943
Pinion seal – N1960L
Pinion support o-ring – N1950B
Flanged pinion nut – N1922A
Adjustable pinion preload spacer – N1920HK
Pinion depth shim kit – N1962UC
ARP 7/16″ ring gear bolt kit – N1975 or N1973

Information Required

Case Bore Size
3.250″ / 3.812″

Note
For 4.00″ bore – Please call

For Strange Spool
Steel or Aluminum

For Other Spools
The ring gear bolts supplied are designed for a flange thickness of .375″ to .447″
If your spool exceeds .447″, the ring gear bolts may be be too short
Specify if using an aluminum spool


Related Components

Kit with front pinion race………. R5237UCBR
Kit for 35 spline pinion…. R5238UCB / R5238UCBR
Fel Pro gasket…………………………… H1112G
Fel Pro Teflon® gasket……………… H1111
Lube Locker gasket…………………… H1111S

Description

Ultra Case installation kit for ball bearing pinion support & 28 spline pinion- No front race

Additional information

Weight 6.15 lbs
