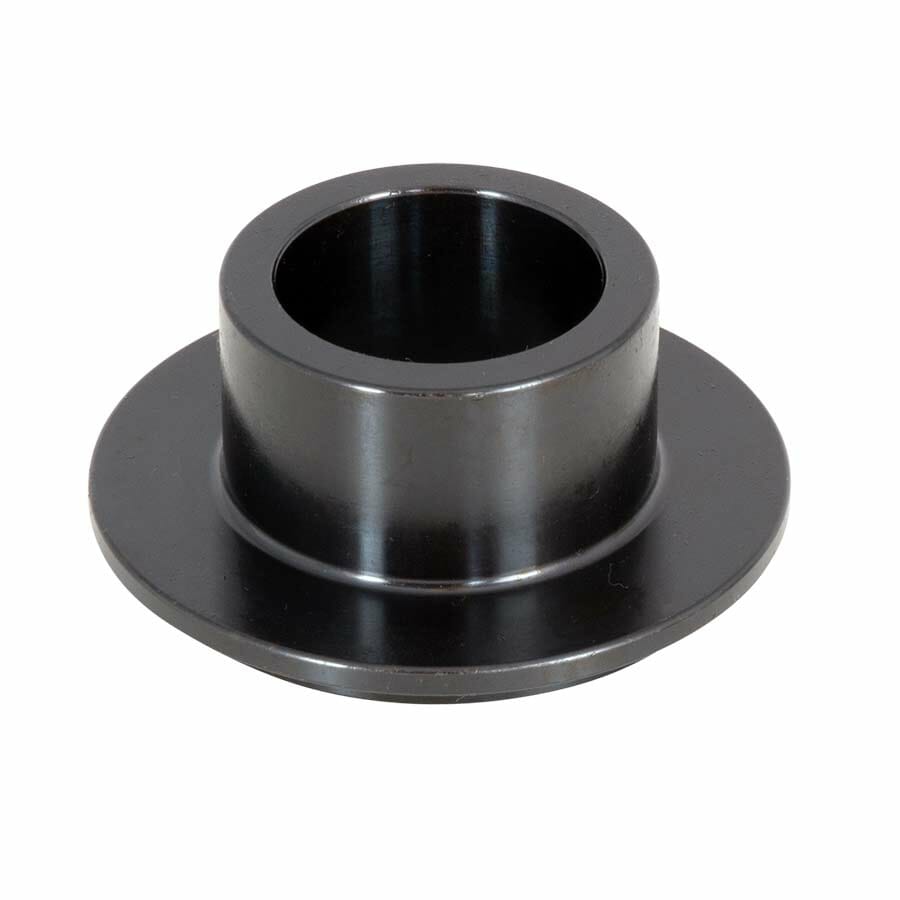

Rear Pinion Bearing Adapter Sleeve                                                                   For Ball Bearing Supports & 28 Spline Pinion Gear

/, Installation Parts & Kits/

Rear Pinion Bearing Adapter Sleeve                                                                   For Ball Bearing Supports & 28 Spline Pinion Gear

Rear Pinion Bearing Adapter Sleeve                                                                   For Ball Bearing Supports & 28 Spline Pinion Gear

$25.00

Part Number: N1920G

Application
Ball bearing pinion support
Using 28 spline pinion gear

Specifications
1.772″ OD x 1.3125″ ID sleeve area
2.875″ OD x .125″ thick flange
1.250″ over all length
Black oxide finish

Backside
2.50″ OD x 2.00″ ID x .145″ HT step


Related Components

Ball bearing………… N1920B
Pinion nut…………… N1922A
Pinion seal………….. N1960L
Preload spacer……. N1920HK

Description

Rear Pinion Bearing Adapter / Spacer Sleeve
