Strange Evolution Dynamic Drive Mount Rear Brake Kit
For Strange H1147 Housing Ends
Evolution S Rotors, 4 Piston Billet Evolution 4 Calipers
With DTC-30 Semi Metallic Pads

Original price was: $1,145.00.Current price is: $1,030.50.

Part Number: B1705WCE


Designed Specifically For Drag Racing

Evolution Rear Brake Kit

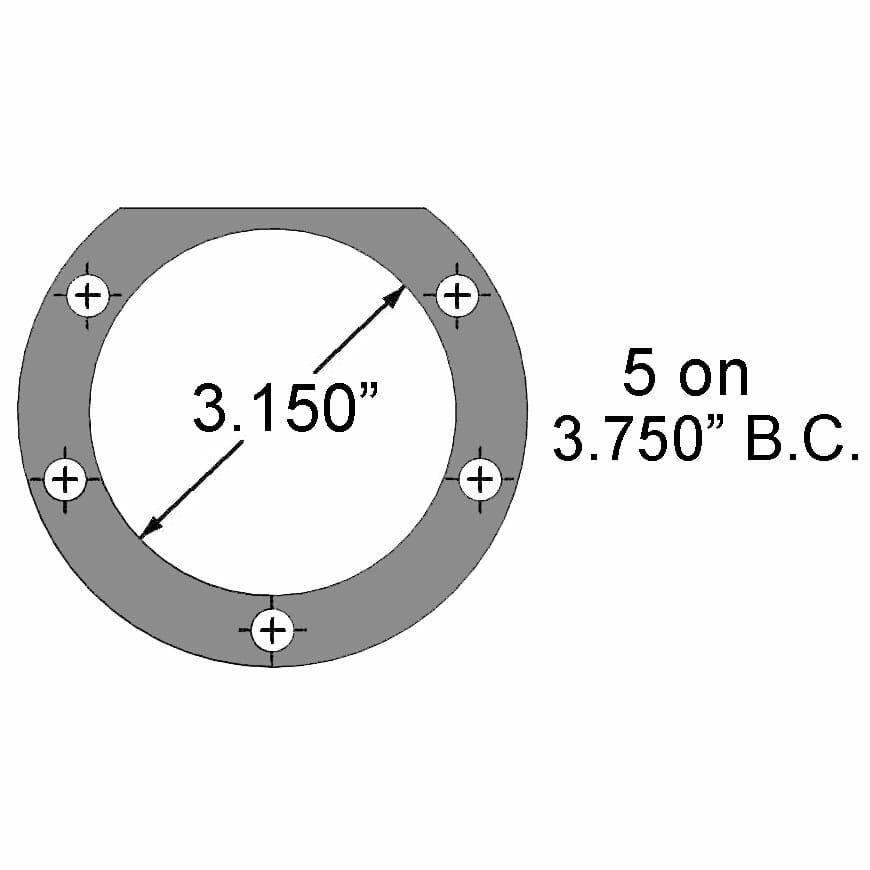

For Strange 3.150″ Mopar Housing Ends

Requires
• Strange ends – H1147
• 2.500″ brake offset
• Ball style axle bearings *

* Caliper mount relief isn’t correct for tapered bearings

Evolution S Dynamic Drive Mount (DDM) Stainless Steel RotorsB2798L / B2798R
• Evolution S Rotor mounts to Billet Aluminum DDM Hat – reducing rotating weight
• DDM system secures the rotor and allows for rotor thermal expansion – drastically reducing warping, coning, and cracking which are common with bolt retention designs
• DDM system design is secured by an internal Spirolox, eliminating heavy bolts and hardware- further reducing rotating weight
• Evolution S rotors are machined and fully ground from Stainless Steel that exhibits 48% greater yield strength at 1,000° F compared to carbon steel- further maintaining rotor integrity
• Stainless steel Evolution S rotors are highly resistant to heat and corrosion
• Unique Aero Slot design reduces rotating weight and promotes even heat dissipation- compared to common round drilled holes
• Scalloped design further reduces rotating weight
• 11.250″ OD / .355″ thickness

Four Piston Billet Evolution 4 CalipersB1900
• Computer finite element analysis (FEA) optimized and field-tested caliper
• Evolution 4 design improves piston retraction, pedal feel, and stiffness
• High retraction piston and O-ring design to eliminate drag during acceleration
• Results in improved pad wear and exemplary braking efficiency
• Stainless steel pistons mitigate heat transfer to brake fluid
• All 1.750″ pistons provide maximum clamping force
• Two bleeder screws ensure complete air evacuation
• Type II Black anodized finish resists corrision, heat & brake fluid

DTC-30 Semi Metallic Brake PadsB5010
• Provides the best starting-line cold holding power
• Recommended for vehicles going 150 MPH or less in the 1/4 mile

Aluminum Caliper Mounts
• Billet one piece design
• Eliminates bolts, spacers & nuts that require periodic maintenance

Housing End Stud KitH1133STKIT
• Provides additional components not supplied in most aftermarket kits

Need More Wheel Clearance?
Low Profile Caliper Option – OPRB12

Brake Hoses and Lines Are Not Included
Calipers are tapped 1/8″ NPT and supplied with a straight male 3 AN fitting

Use Teflon® tape or liquid on the pipe threads of the fitting
Leave a few threads from the tip uncoated
This will avoid depositing material inside the caliper
Torque fitting to 25 ft lbs

Related
With DRM-35 metallic pads – B1705WCEM


  • Total

Description

Strange Evolution Rear Brake Kit for Strange H1147 Mopar ends with dtc-30 semi metallic pads

Parts List and Installation Guide
