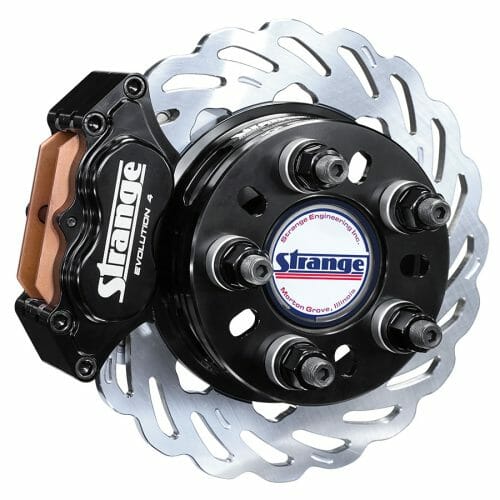

Strange Evolution Dynamic Drive Mount Front Brake Kit
'67-'69 Camaro, '67-'72 Chevelle, ... 4 3/4" B.C.
Evolution S Rotors, 4 Piston Billet Evolution 4 Calipers
With DTC-30 Semi Metallic Pads

$1,295.00

Part Number: B4110WCE


Designed Specifically For Drag Racing

Evolution Front Brake Kit
1973-1974 Apollo
1967-1969 Camaro / Firebird
1967-1972 Chevelle / Malibu / El Camino
1966-1974 Chevy II / Nova
1970-1972 Monte Carlo
1967-1972 Cutlass
1973-1974 Omega
1971-1974 Ventura

All Above With Drum Brake Spindles

Evolution S Dynamic Drive Mount (DDM) Stainless Steel RotorsB2798L / B2798R
• Evolution S Rotor mounts to Billet Aluminum DDM Hat – reducing rotating weight
• DDM system secures the rotor and allows for rotor thermal expansion – drastically reducing warping, coning, and cracking which are common with bolt retention designs
• DDM system design is secured by an internal Spirolox, eliminating heavy bolts and hardware- further reducing rotating weight
• Evolution S rotors are machined and fully ground from Stainless Steel that exhibits 48% greater yield strength at 1,000° F compared to carbon steel- further maintaining rotor integrity
• Stainless steel Evolution S rotors are highly resistant to heat and corrosion
• Unique Aero Slot design reduces rotating weight and promotes even heat dissipation- compared to common round drilled holes
• Scalloped design further reduces rotating weight
• 11.250″ OD / .355″ thickness

Four Piston Billet Evolution 4 CalipersB1900
• Computer finite element analysis (FEA) optimized and field-tested caliper
• Evolution 4 design improves piston retraction, pedal feel, and stiffness
• High retraction piston and O-ring design to eliminate drag during acceleration
• Results in improved pad wear and exemplary braking efficiency
• Stainless steel pistons mitigate heat transfer to brake fluid
• All 1.750″ pistons provide maximum clamping force
• Two bleeder screws ensure complete air evacuation
• Type II Black anodized finish resists corrision, heat & brake fluid

Aluminum Caliper Mounts
• Billet one piece design
• Eliminates bolts, spacers & nuts that require periodic maintenance

DTC-30 Semi Metallic Brake PadsB5010
• Best compound suited for front application
• Excellent cold holding capabilities

Billet Aluminum Hubs
• Strong lightweight material
• Lightening holes for enhanced weight reduction
• Billet hub caps with O-rings
• Bearings, races and seals

Screw-in Wheel StudsA1028
• Tapered allen 1/2″-20 x 2 1/2″
• Standard allen in 3″ available on request

All Necessary Mounting Hardware

Need More Wheel Clearance?
Low Profile Caliper Option – OPRB12

Brake Hoses and Lines Are Not Included
Calipers are tapped 1/8″ NPT and supplied with a straight male 3 AN fitting

Use Teflon® tape or liquid on the pipe threads of the fitting
Leave a few threads from the tip uncoated
This will avoid depositing material inside the caliper
Torque fitting to 25 ft lbs


  • Total

Description

Strange Evolution Front Brake Kit 4 3/4″ BC for ’67-’69 Camaro, ’67-’72 Chevelle, …
