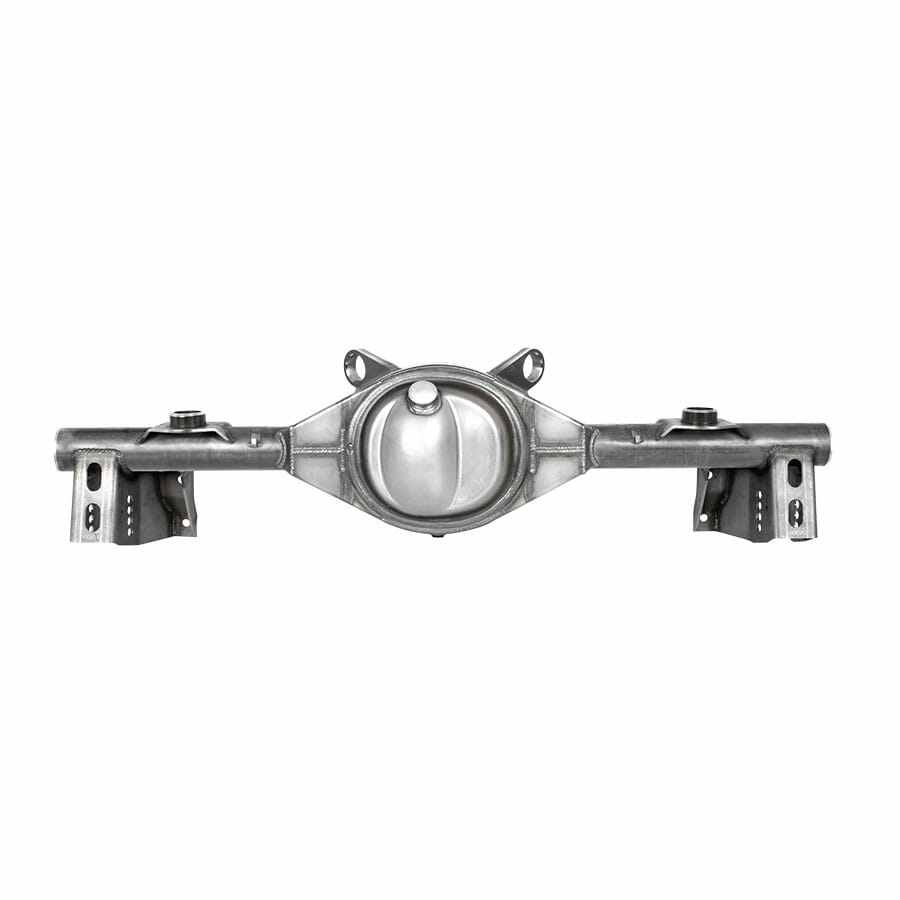

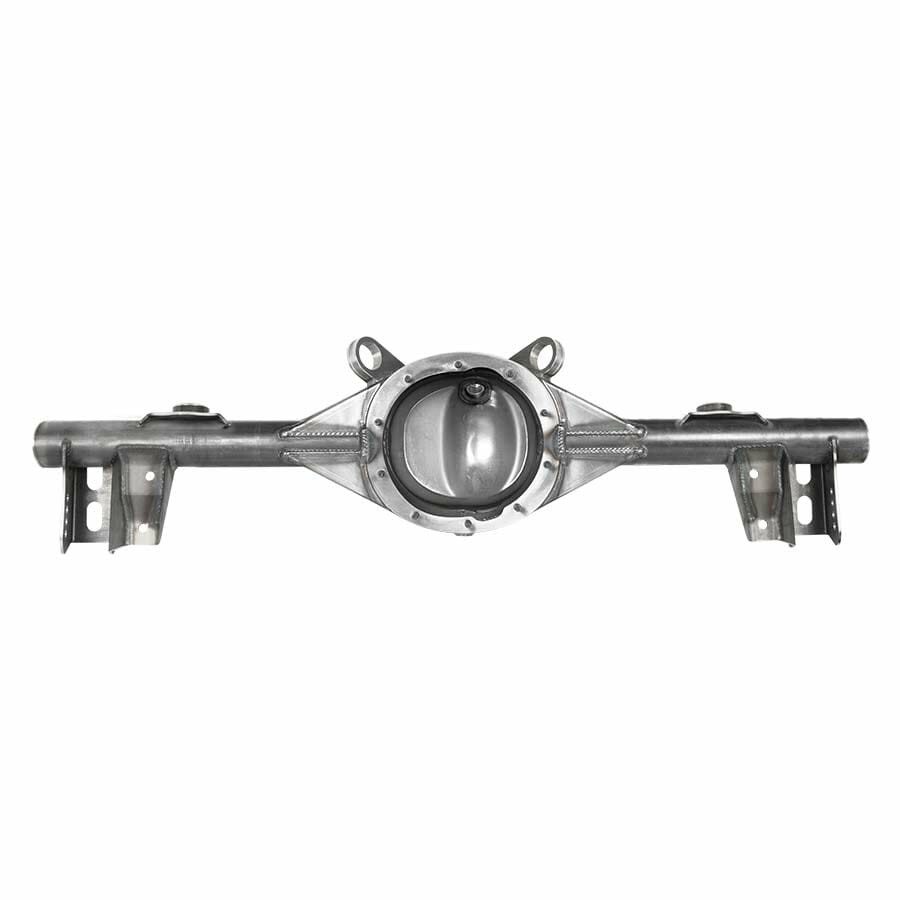

Strange HD Ford 9" Housing '77-'90 GM B-Body with Mounts - No Ends


Part Number: HF9GB77M

Construction of Housing for 1977-1990 GM B-Body Vehicles
Impala & Caprice
(Except Station Wagons)

Strange HD Ford 9″ Bolt-in Housing
Perfect base for creating Pro Touring floater housing

Information Required
Housing tube to tube width

Center Housing – H1110
• Constructed from .141″ mild steel
• Heavy duty .282″ thick face plate
• Internal gussets provide rigidity and support axle tubes
• Slots allow exceptional weld contact of housing to tubes

Fill & Drain plugs H1116 / H1117D
• Facilitate fluid changes

Tubing – H1139
• Mild steel
• 3″ OD x .250″ wall
• Brake line tabs

Vent – H1112B
• Prevents build-up of internal pressure
• Ensures sealing integrity

GM B-Body Mounts
• Heavy duty upper & lower control arm mounts

Professionally Welded
• Jig welded to ensure proper alignment
• Exceptional weld quality

Related Components
Gasket…………………………. H1111S
Pro Touring floater kit…………. F5010

See Our Full Line of Center Sections
Available for Drag Race Only, Street / Track, and Performance Street Vehicles

This product is only available from an Authorized Strange Dealer or Factory Direct Call - 800-646-6718 or Email Us


Ford 9″ housing / ’77-’90 GM B-Body / with mounts (no ends)
