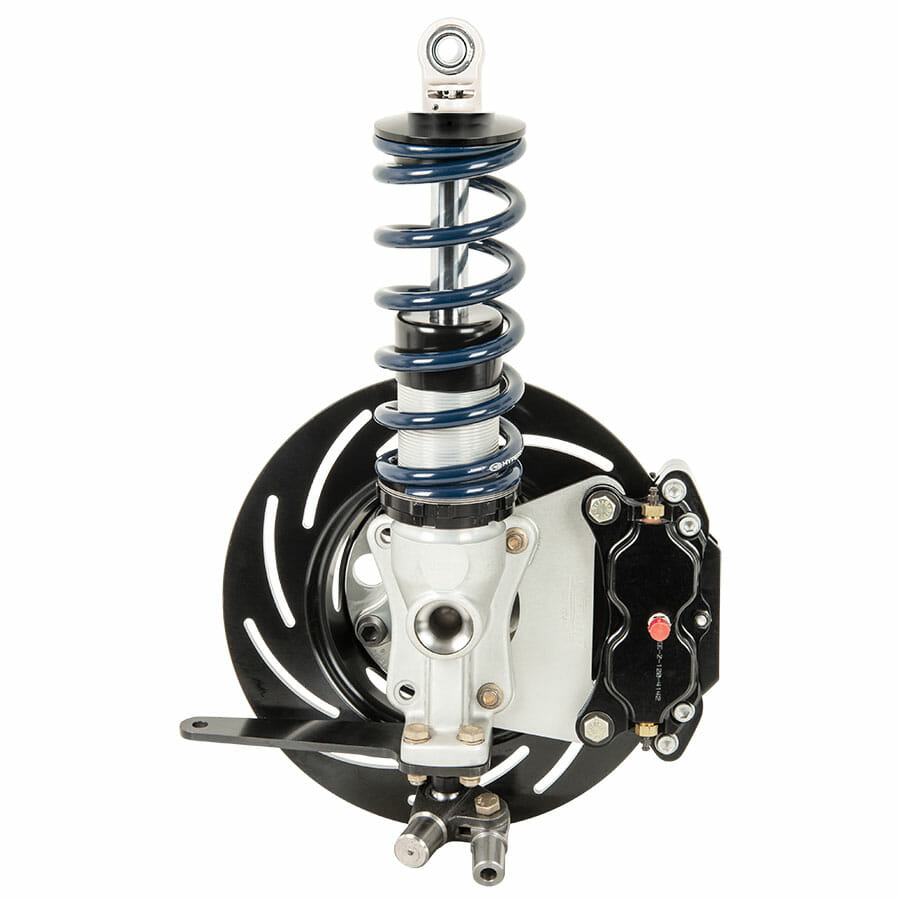

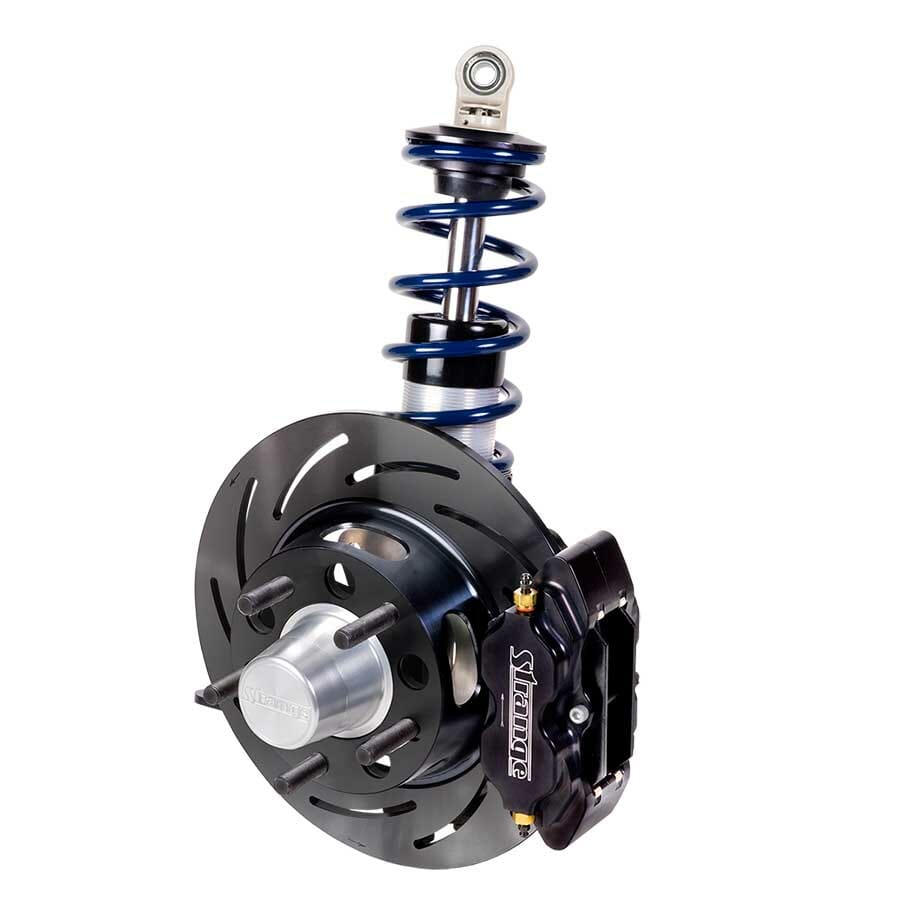

Strange Aluminum Strut Package
Eye Mount - Externally Adjustable
Heavy Duty Brake Kit For Hub Mount Wheels

$2,060.00

Part Number: PSS120

Drag Race Use Only

For Hub Mount Wheels
Choice of 4 1/2″ or 4 3/4″ bolt circle

Features

Compact lightweight design sheds front end weight
Externally adjustable for rate of extension
Allows fine tuning of front suspension

Strut Package Includes

Eye Mount Struts
• Forged 2014-T4 aluminum bodies
• Stainless steel spindles
• 2 1/2″ stroke (with bumper installed)
• Externally adjustable for extension rate
• Valved specifically for Drag Racing
• Custom valving available on request
• Forged in the USA
• Designed, machined, & assembled by Strange Engineering

Lower Control Arm Ends – S3750
• 4130 steel A-Arm ends with clevises
• Teflon® lined spherical ball LCA bearings
• Grade 8 bolts, flanged locking ESNA nuts, & 3AN washers

Control Arm Tubing Kit – S3420 / S3421
• 4130 seamless tubing
• Tubing adapters
• Choice of 7/16″ or 1/2″ Teflon® lined chrome moly rod ends

Premium Hyperco Springs
• Chrome silicone steel
• Magnaflux inspected
• Dark blue powder coated
• Choice of spring rate

Spring Seat Bearing Kit – S1409
• Allows smooth height adjustment
• Eliminates spring bind during turns

Strange 4 Piston Caliper Brake Kit – B4153WC / B4154WC
• One piece forged slotted steel rotors
• Four piston aluminum directional calipers
• Soft metallic brake pads
• Billet aluminum caliper mounts
• Forged aluminum hubs with lightening holes
• Choice of 4 1/2″ or 4 3/4″ bolt pattern
• Timken bearings and races
• Oil seals
• 1/2″ -20 screw-in wheel studs
• All necessary mounting hardware

Note
Brake hoses and lines are not included
Calipers are tapped 1/8″ NPT and supplied with male 3 AN fittings

Recommended Spring Rates

Front Weight – Spring Rate
1,100 lbs    – 200 lbs
1,200 lbs    – 200 to 225 lbs
1,300 lbs    – 225 to 250 lbs
1,400 lbs    – 250 to 275 lbs
1,500 lbs    – 275 to 300 lbs
1,600 lbs    – 300 to 325 lbs

Consult your chassis builder for their suggestion

For any questions regarding this package
Please contact a Strange Sales Associate to discuss your vehicle

Parts List and Installation Guide pdf File

Description

Strange Forged Aluminum Drag Race Strut Front Suspension With Heavy Duty Brake Kit.

This kit provides the basis for a lightweight front suspension. Frame construction is much simpler, suspension geometry is more easily established, and header clearance is improved over conventional A-frame suspension. Every Strange strut is externally adjustable for extension (rebound) for more convenient tuning. Strange double adjustable strut packages provide an additional external adjustment for compression (bump). Strange aluminum strut bodies are forged from 2000 series aluminum alloy to provide high strength at a minimal weight. Heat treated 17-4 stainless steel spindles provide an exceptionally strong wheel mounting surface.

Fatigue resistant steel steering arms can be formed easily to obtain proper steering geometry. Brake mounting bosses are an integral part of the forged housing, providing simplicity for brake kit mounting on either side of the strut. Every Strange strut package features integral designed components ensuring proper fit, ease of assembly, maximum performance and an unsurpassed regard for safety.

All Strange forged aluminum struts are for Drag Racing only.

Additional information

Weight 71.00 lbs
