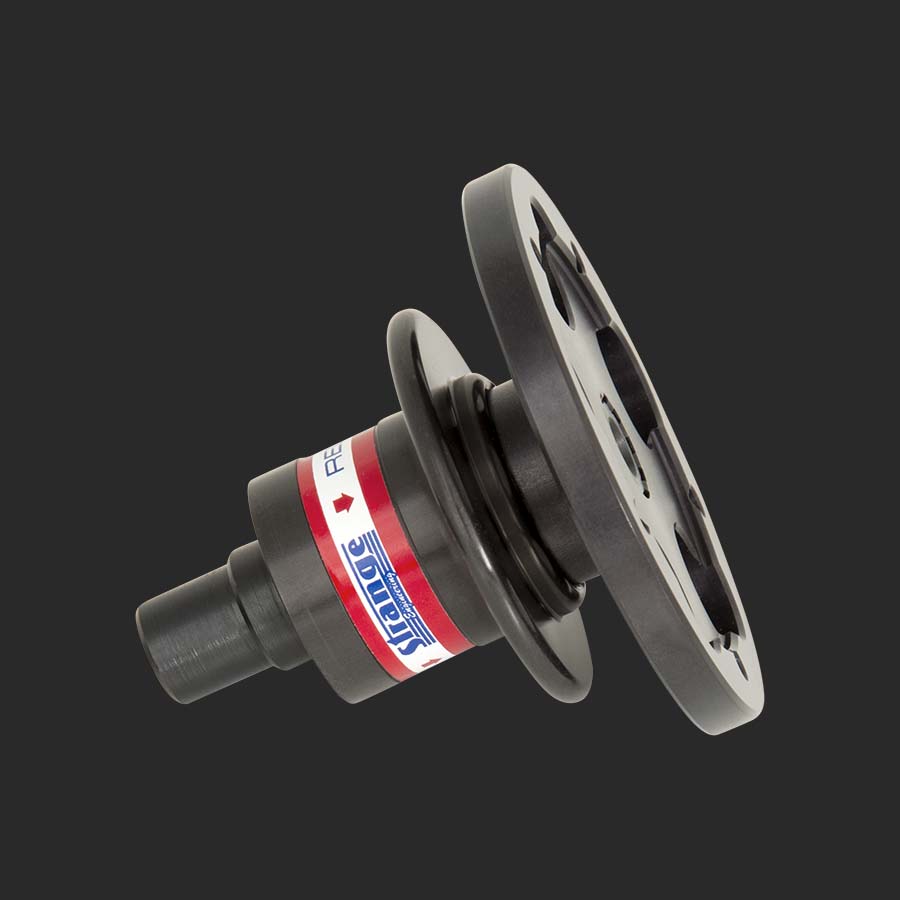

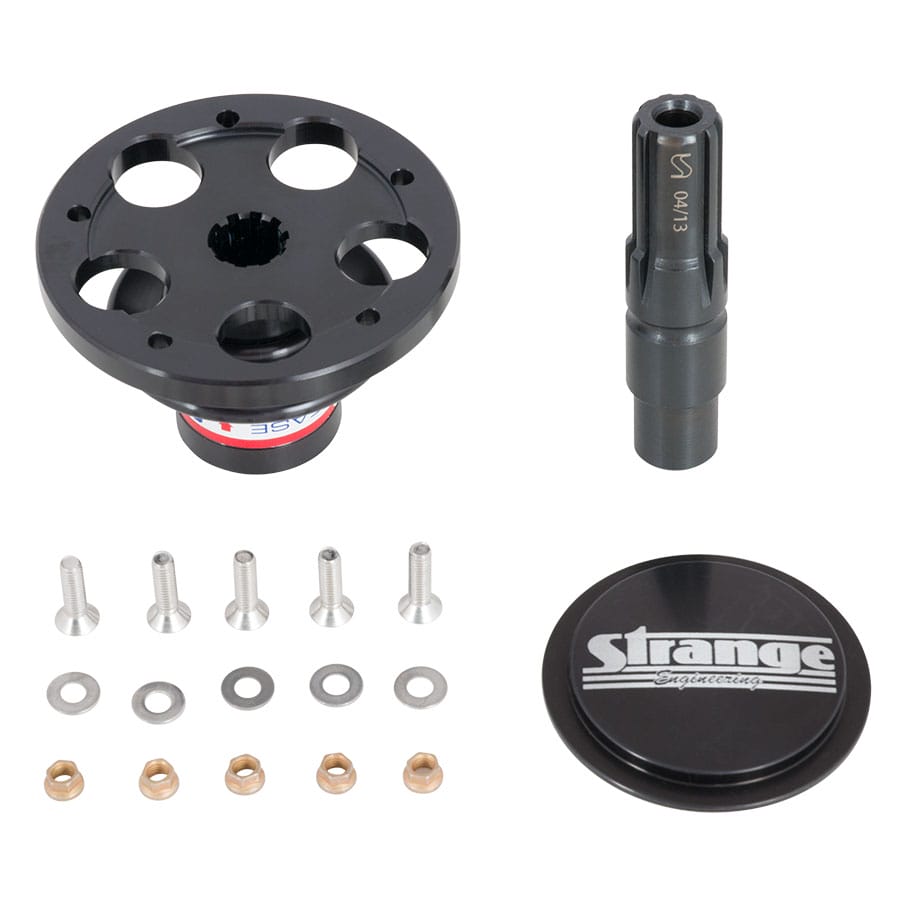

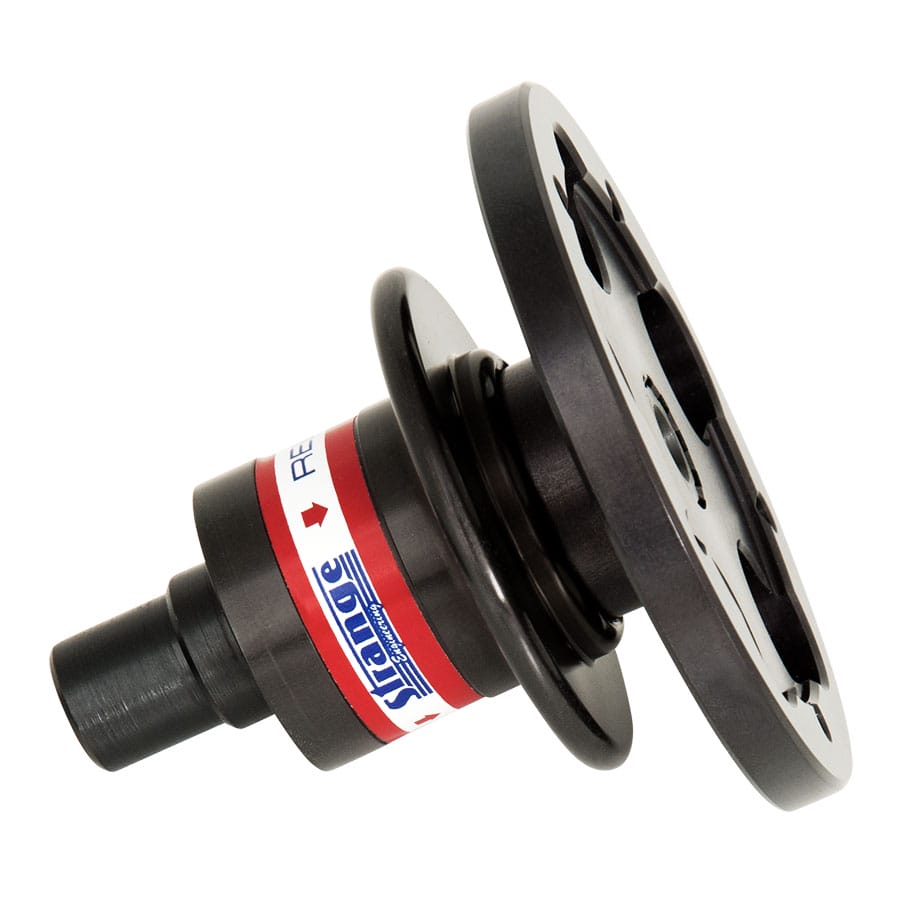

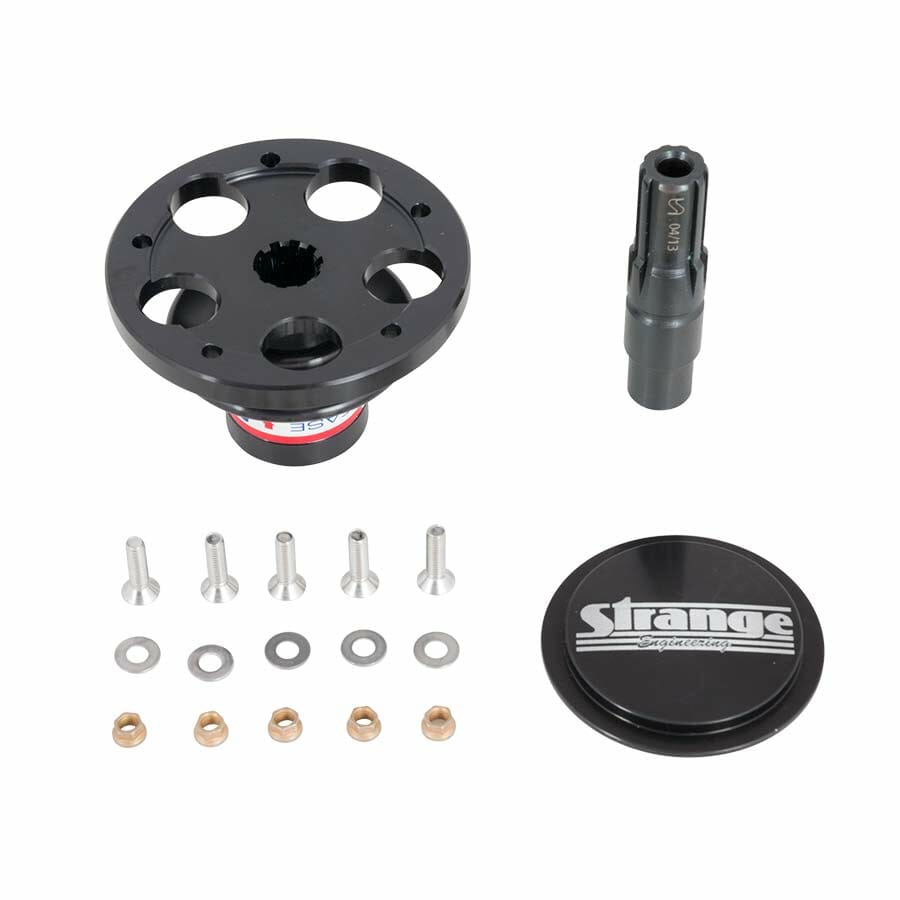

Strange Quick Release Hub                                                                                     Designed For Grant Steering Wheels

/, Drag Race, Steering Components, Quick Release Couplers/

Strange Quick Release Hub                                                                                     Designed For Grant Steering Wheels

Strange Quick Release Hub                                                                                     Designed For Grant Steering Wheels

$116.00

Part Number: Q1200

Application

Grant steering wheels
With five bolt hole pattern


Features

• Provides quick removal of steering wheel
• Integral flange eliminates loose components
• Spring loaded with positive locking system
• Coarse spline simplifies engagement
• One wide tooth ensures proper steering wheel alignment

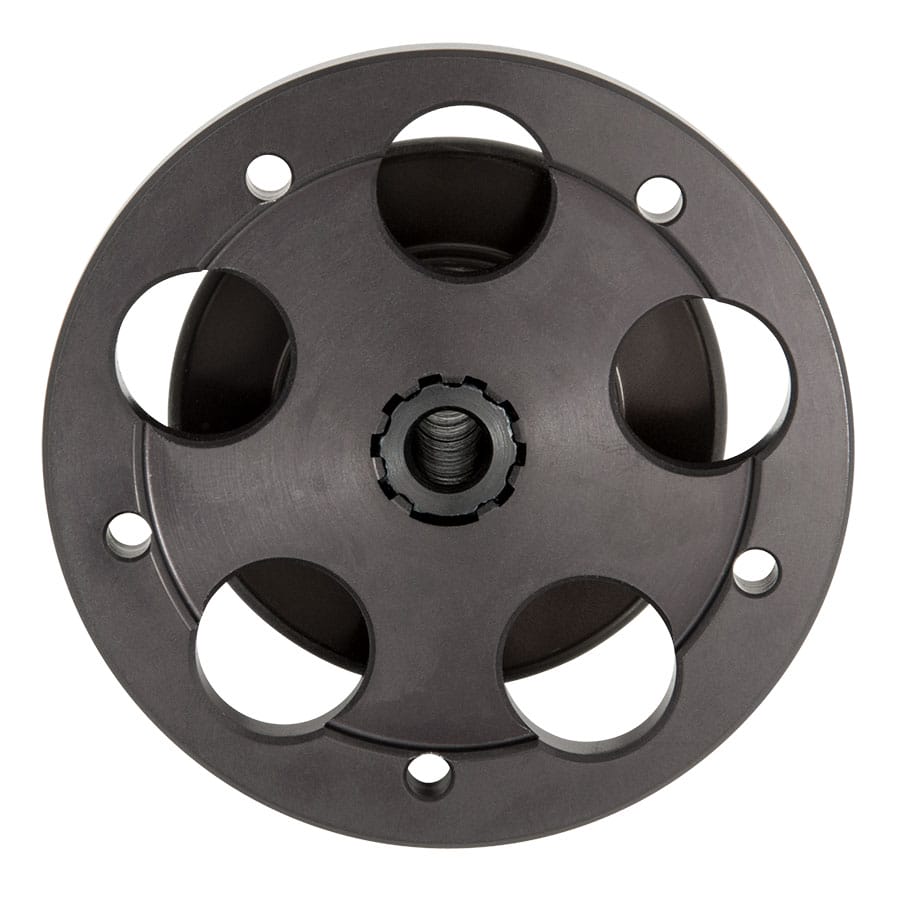

Hub
2024-T351 billet aluminum
3.500″ OD
5 on 2.834″ bolt circle .192″ holes
.750″ lightening holes
Broach 10 spline with one tooth removed
Black hard anodized finish

Release Collar
6061-T6511 billet aluminum
2.480″ OD
Black hard anodized finish

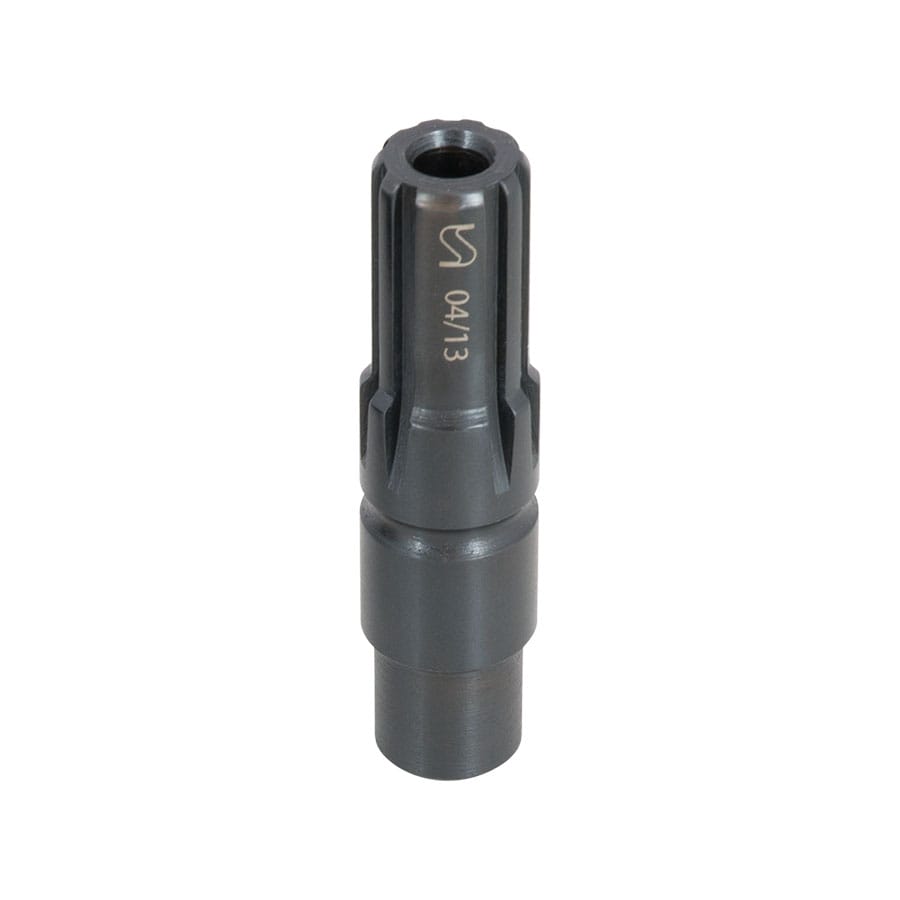

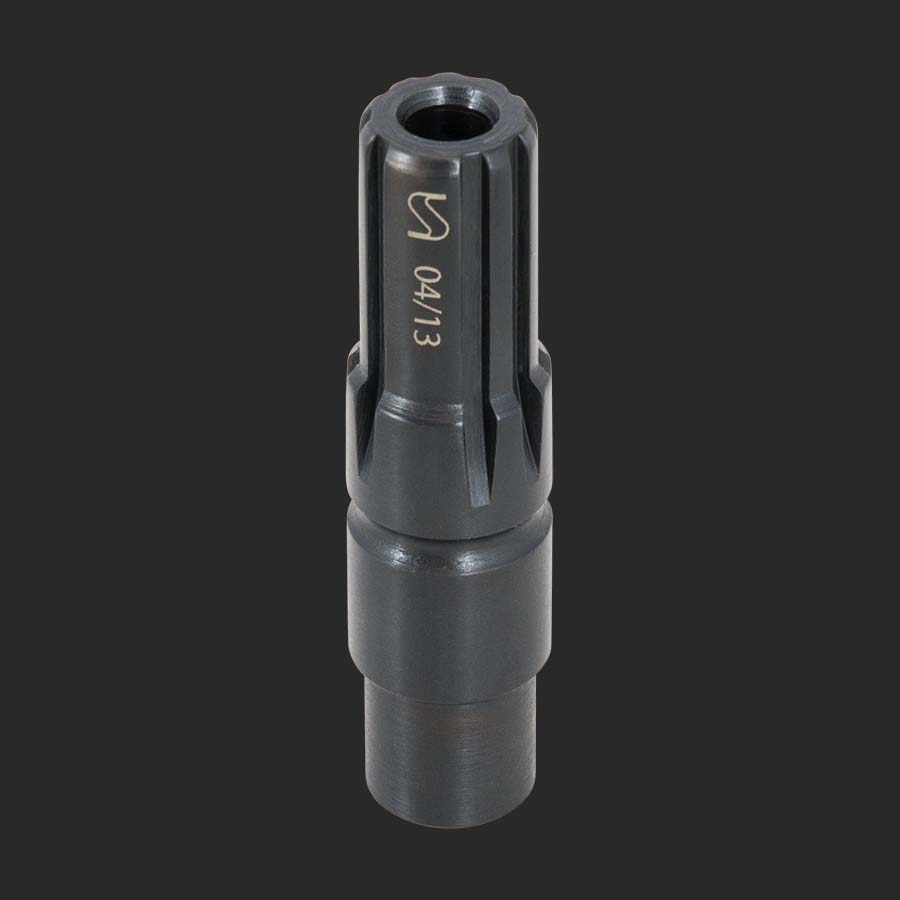

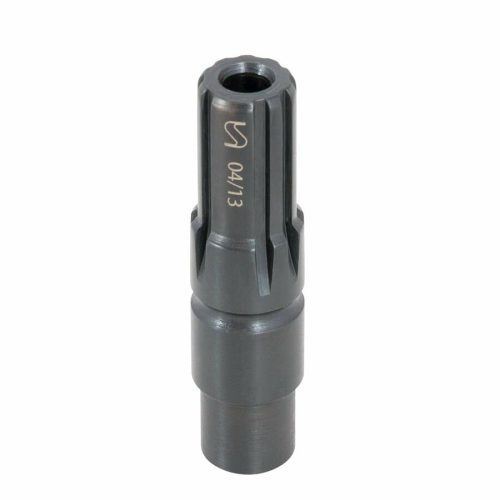

Weld End
4130 chrome moly
9 spline with one wide tooth
.650″ OD tube end
.312″ bore lightening hole
Black oxide finish



Related Components

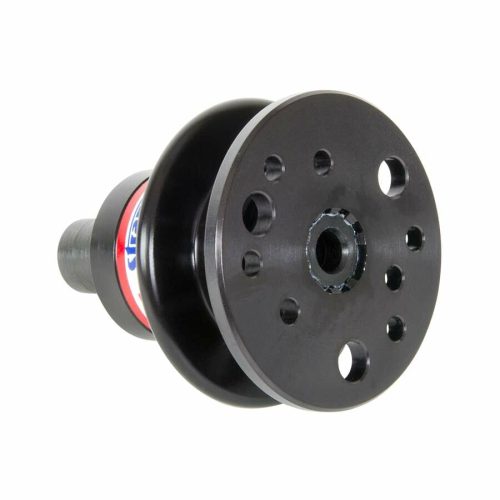

Dragster quick release hub……………… Q1000

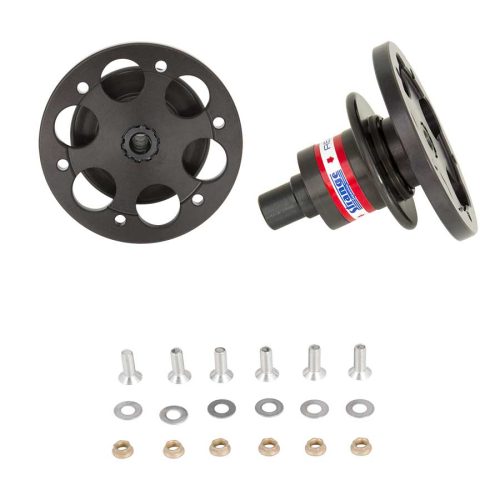

Sparco wheel quick release hub….. Q1200SPAR

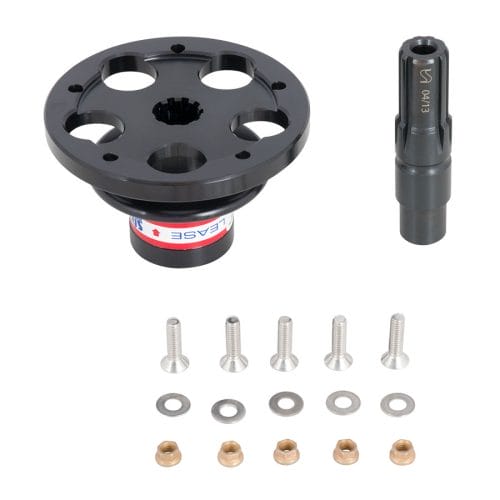

Parts List and Installation Guide pdf File

Description

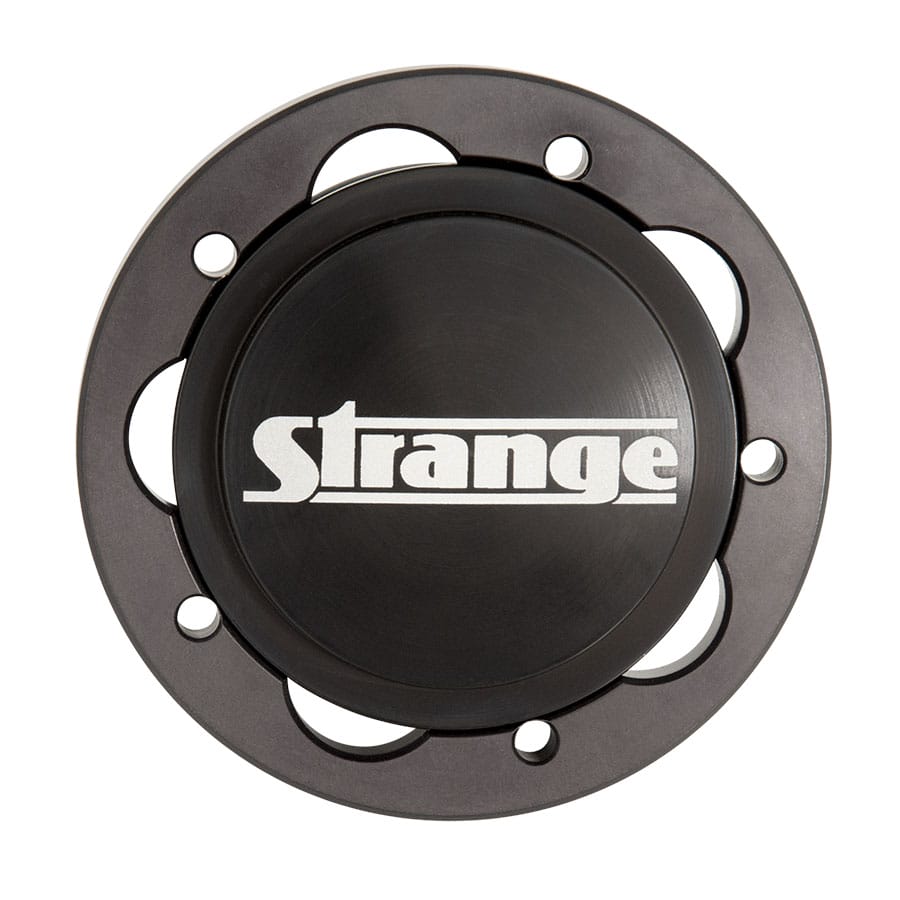

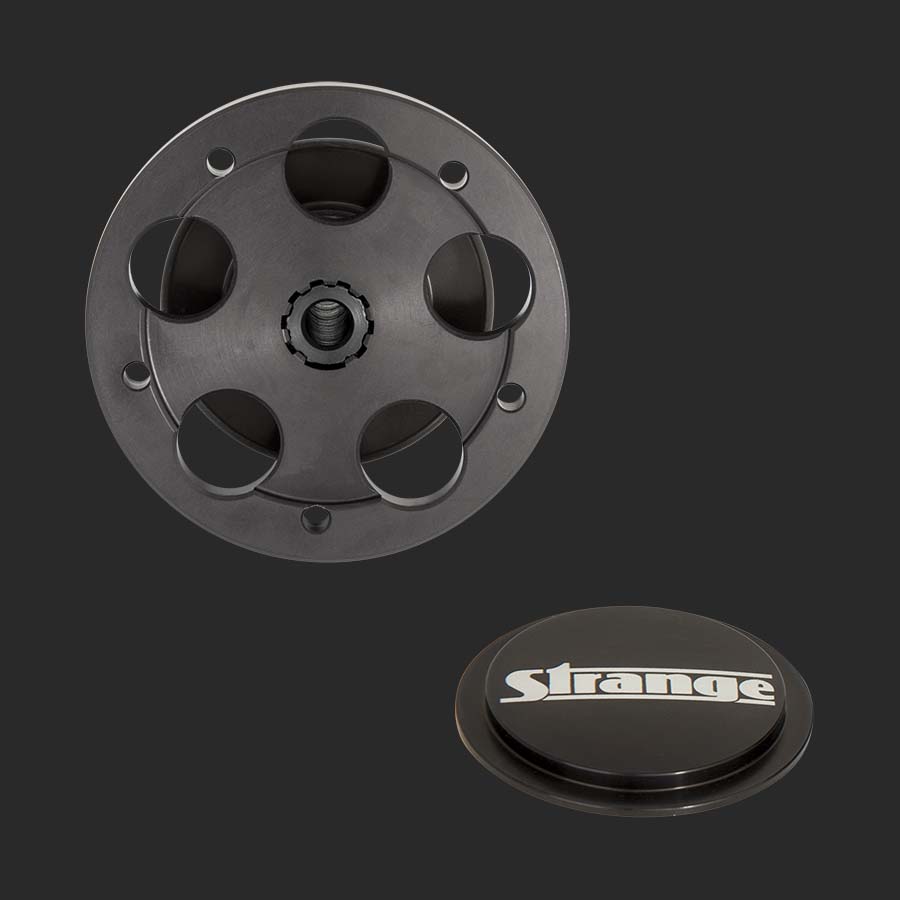

Strange quick release hub – with Strange Horn Button -door car

Additional information

Weight 0.90 lbs
