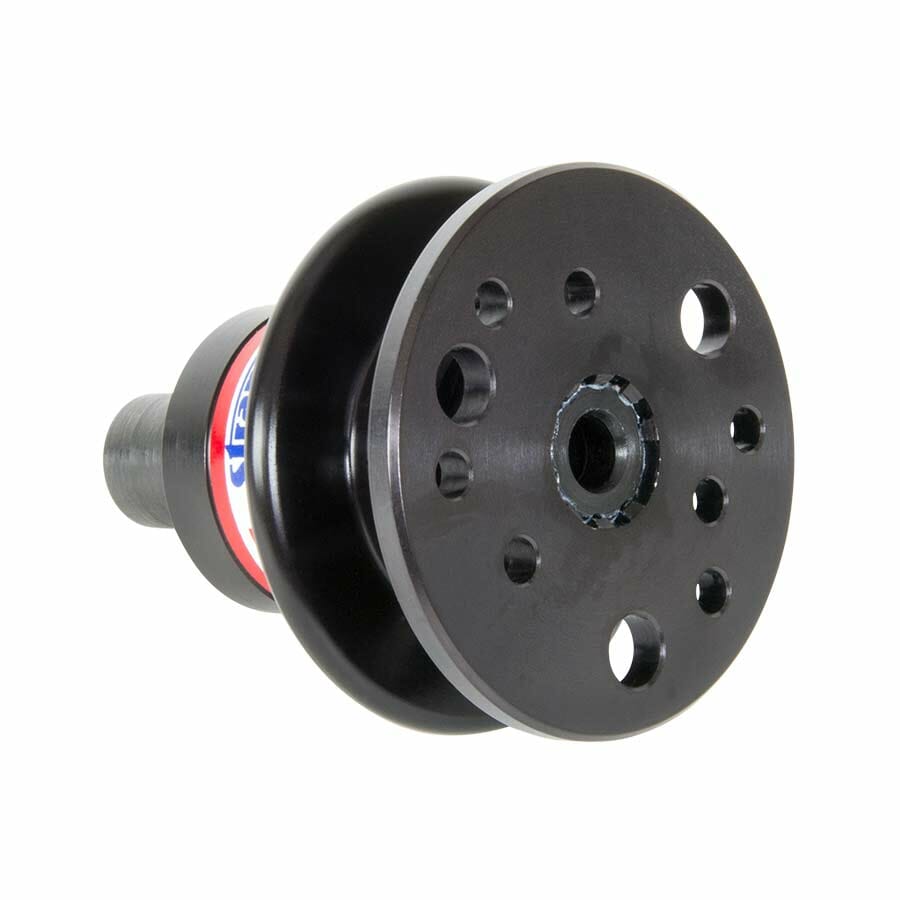

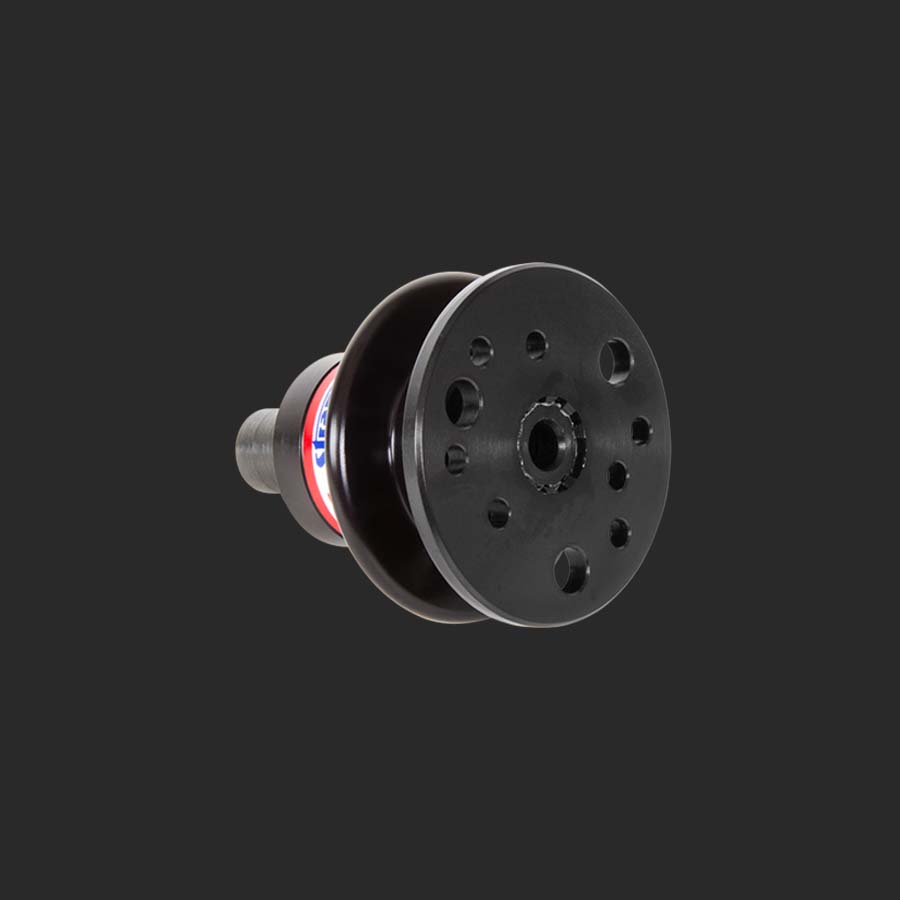

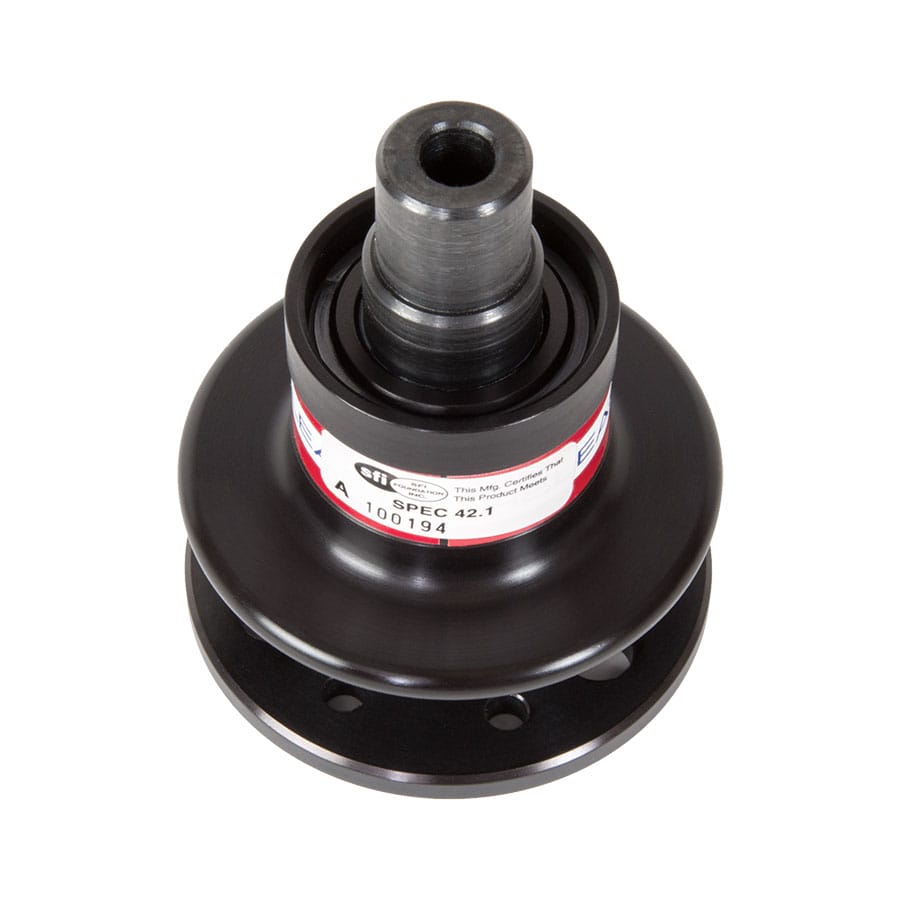

Strange Quick Release Hub                                                                                     Designed For 3 & 4 Bolt Dragster Steering Wheels

/, Drag Race, Steering Components, Quick Release Couplers/

Strange Quick Release Hub                                                                                     Designed For 3 & 4 Bolt Dragster Steering Wheels

Strange Quick Release Hub                                                                                     Designed For 3 & 4 Bolt Dragster Steering Wheels

$83.00

Part Number: Q1000

Application

Dragster steering wheels
With three or 4 bolt hole pattern


Features

• Provides quick removal of steering wheel
• Integral flange eliminates loose components
• Spring loaded with positive locking system
• Coarse spline simplifies engagement
• One wide tooth ensures proper steering wheel alignment


Hub
2024-T351 billet aluminum
2.500″ OD
3 on 1.375″ bolt circle .193″ holes
3 on 1.750″ bolt circle .316″ holes
4 on .750″ x 1.650″ centers .193″ holes
Broach 10 spline with one tooth removed
Black hard anodized finish

Release Collar
6061-T6511 billet aluminum
2.480″ OD
Black hard anodized finish

Weld End
4130 chrome moly
9 spline with one wide tooth
.650″ OD tube end
.312″ bore lightening hole
Black oxide finish



Related Components

Grant wheel quick release hub……….. Q1200
Sparco wheel quick release hub….. Q1200SPAR

Parts List and Installation Guide pdf File

Description

Strange quick release hub – dragster

Additional information

Weight 0.75 lbs
