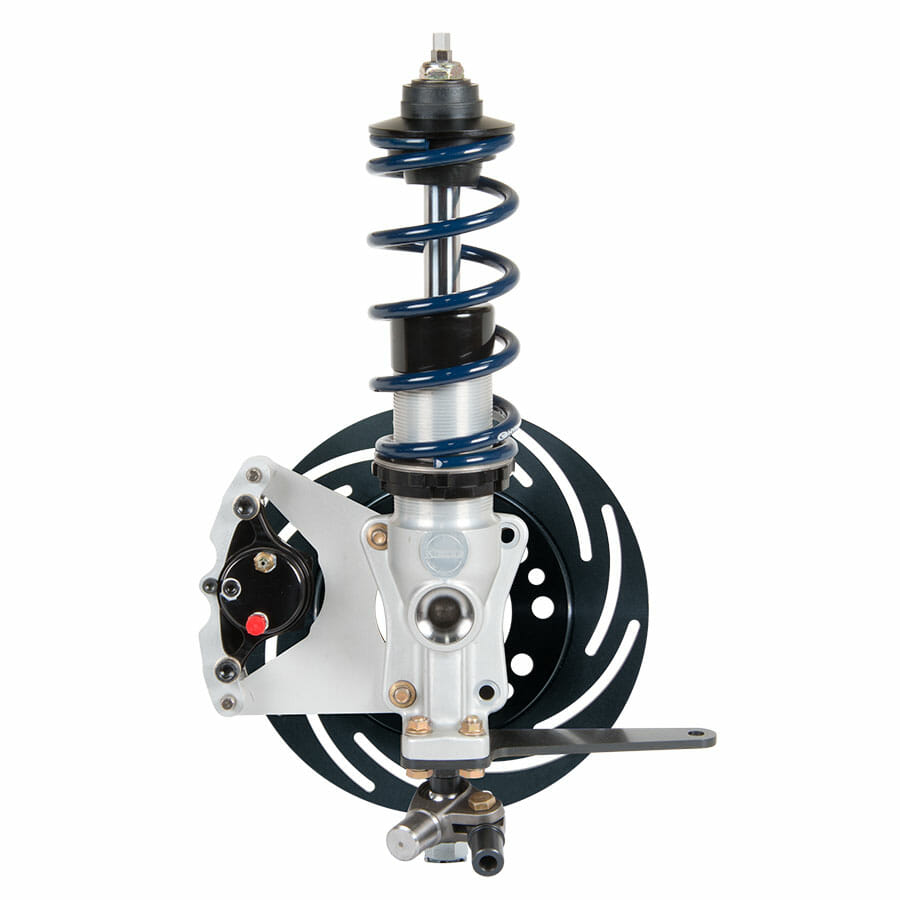

Strange Aluminum Strut Package Stud Mount - Externally Adjustable Lightweight Brake Kit For Spindle Mount Wheels

$1,970.00

Part Number: PSS105

Drag Race Use Only

For Spindle Mount Wheels

Require wheels designed for Strange spindles
These are not the same as Anglia spindles

Features

Compact lightweight design sheds front end weight
Externally adjustable for rate of extension
Allows fine tuning of front suspension

Strut Package Includes

Stud Mount Struts
• Forged 2014-T4 aluminum bodies
• Stainless steel spindles
• 2 1/2″ stroke (with bumper installed)
• Externally adjustable for extension rate
• Valved specifically for Drag Racing
• Custom valving available on request
• Forged in the USA
• Designed, machined, & assembled by Strange Engineering

Lightweight Fabricated Lower Control Arms – S3420-WAK / S3421-WAK
• Constructed from 4130 chromoly components and tubing
• Modifications to tube length and welding of tube adapters is required
• Chromoly tube adapters supplied loose
• Choice of 7/16″ or 1/2″ Teflon® lined chrome moly rod ends
• Teflon® lined spherical ball LCA bearings
• Grade 8 bolts, flanged locking Jet nuts, & 3AN washers

Premium Hyperco Springs
• Chrome silicone steel
• Magnaflux inspected
• Dark blue powder coated
• Choice of spring rate

Spring Seat Bearing Kit – S1409
• Allows smooth height adjustment
• Eliminates spring bind during turns

Spindle Mount Brake Kit – B4597WC / B4598WC
• One piece forged slotted steel rotors
• Choice of 1″ or 1 1/2″ offset rotors
• Single 1 3/4″ piston billet aluminum calipers
• Slider assemblies featuring Garlock bearings
• Soft metallic brake pads
• Billet aluminum caliper mounts

Note
Brake hoses and lines are not included
Calipers are tapped 1/8″ NPT and supplied with male 3 AN fittings

Upgrade
To 2 piece rotors………..OPRB01 *

* Available Only When Using 1 Piece Billet or Forged Aluminum Wheels

Recommended Spring Rates

Front Weight – Spring Rate
1,100 lbs    – 200 lbs
1,200 lbs    – 200 to 225 lbs
1,300 lbs    – 225 to 250 lbs
1,400 lbs    – 250 to 275 lbs
1,500 lbs    – 275 to 300 lbs
1,600 lbs    – 300 to 325 lbs

Consult your chassis builder for their suggestion

For any questions regarding this package
Please contact a Strange Sales Associate to discuss your vehicle

Description

Alum. Strut pkg. / External adj. stud mount / L.W. brake kit

Parts List and Installation Guide pdf File
