Application
9″ / 9 1/2″ Live Axle – 2012 and older
9″ / 9 1/2″ Live Axle was re-designed in late 2012
2012 & older shared fewer parts between steel and carbon brakes
If unsure of the year, please contact us for more information
For 2013 & Newer – L7050WC
The Ultimate in Drag Race Braking Performance
• Maximum rotational weight reduction
• Impervious to brake fade
• Extremely rigid billet aluminum calipers
• Two piece air gap piston design limits heat transfer
• Inner piston machined from billet stainless steel
• More resistant to deflection than stamped stainless steel
• Outer piston composed of hard anodized aluminum
• Provides exceptional wear characteristics
• Insulates brake fluid from extreme temperatures
• Eliminates heat shields & shims
• 1 3/4″ diameter pistons ensure proper clamping force
• Provides consistent braking with a firm pedal feel

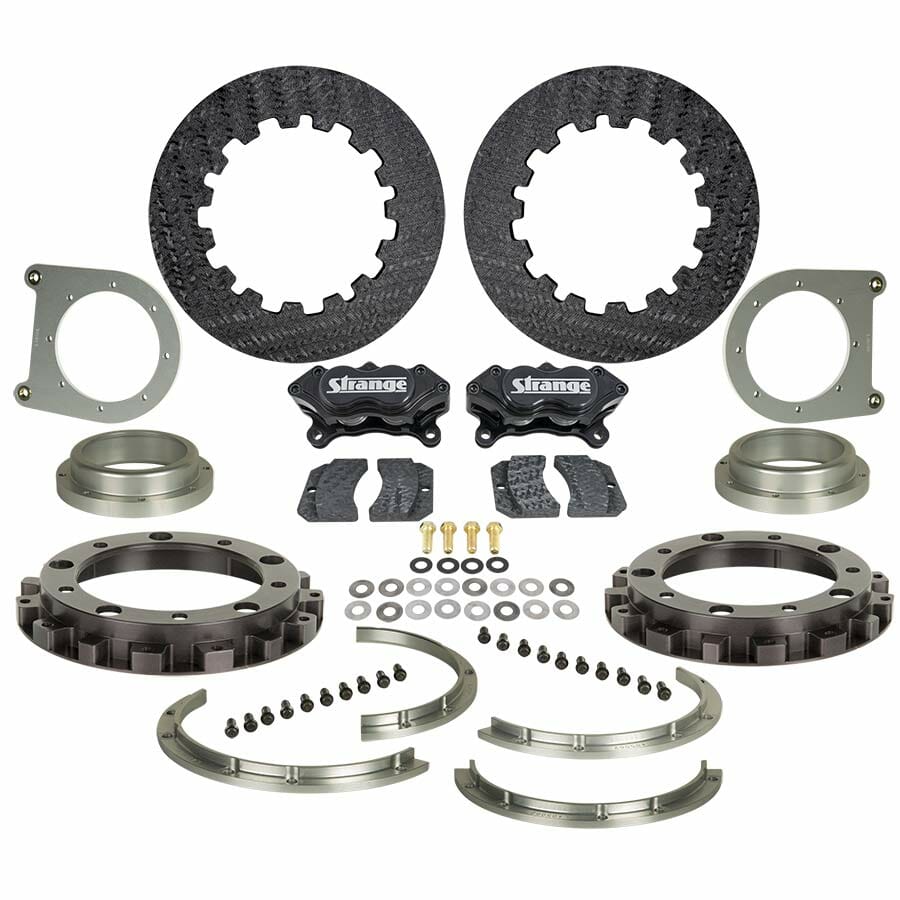

Kit Includes
11.5″ carbon rotors – L4050B
5 1/2″ bolt circle aluminum hub adapters
Retaining rings & screws
Billet carbon calipers – B5040
Carbon brake pads – L4050H
Aluminum caliper mounts & bearing retainers
Mounting hardware & shims
Brake hoses and lines are not included
Calipers are tapped 1/8″ NPT and supplied with male 3 AN fittings
