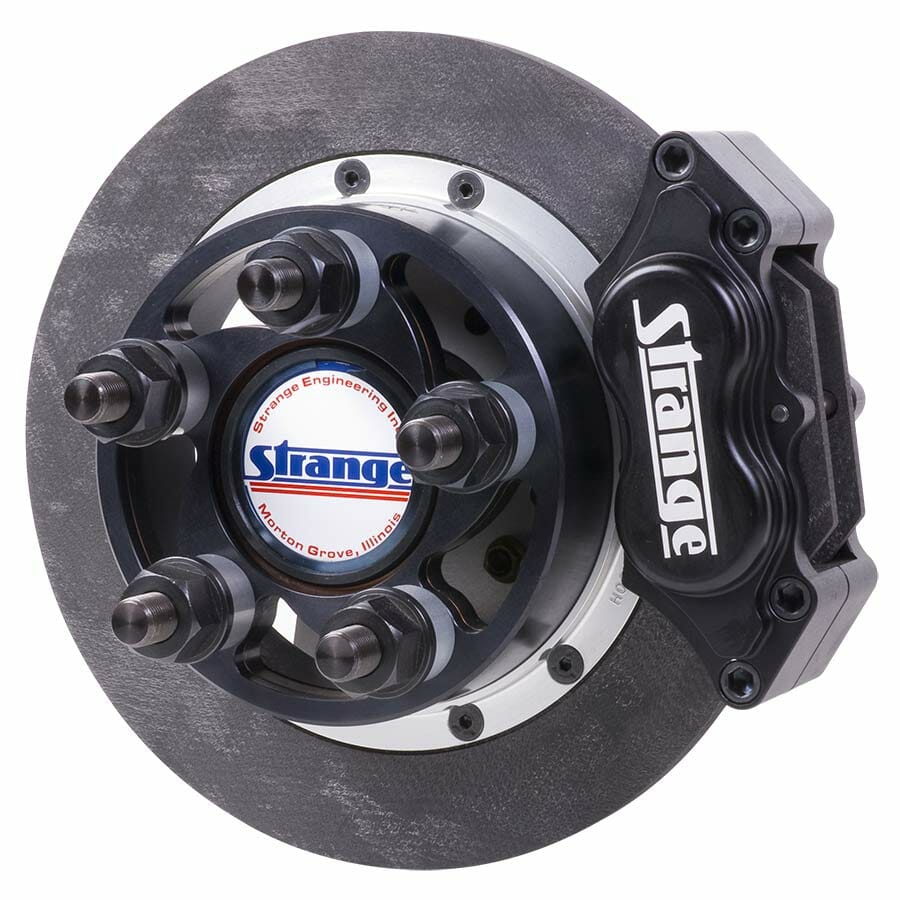

Strange Pro Carbon Rear Brake Kit
For 5" Bolt Circle Using 5/8" Studs
Fits 3.350" Symmetrical Ends


Part Number: C18105DBUC

Symmetrical 3.350″ Housing Ends – H1136
For axles with 2.832″ brake offset

The Ultimate in Drag Race Braking Performance
• Maximum rotational weight reduction
• Impervious to brake fade
• Extremely rigid billet aluminum calipers
• Two piece air gap piston design limits heat transfer
• Inner piston machined from billet stainless steel
• More resistant to deflection than stamped stainless steel
• Outer piston composed of hard anodized aluminum
• Provides exceptional wear characteristics
• Insulates brake fluid from extreme temperatures
• 1 3/4″ diameter pistons ensure proper clamping force
• Eliminates heat shields & shims
• Provides consistent braking with a firm pedal feel

Kit Includes

11″ carbon rotors – C1790
Ultra Lite billet aluminum rotor hats *
Aluminum retaining rings with FHSCS screws
Billet carbon calipers – B5042
Carbon brake pads – L4050H1 / L4050H2

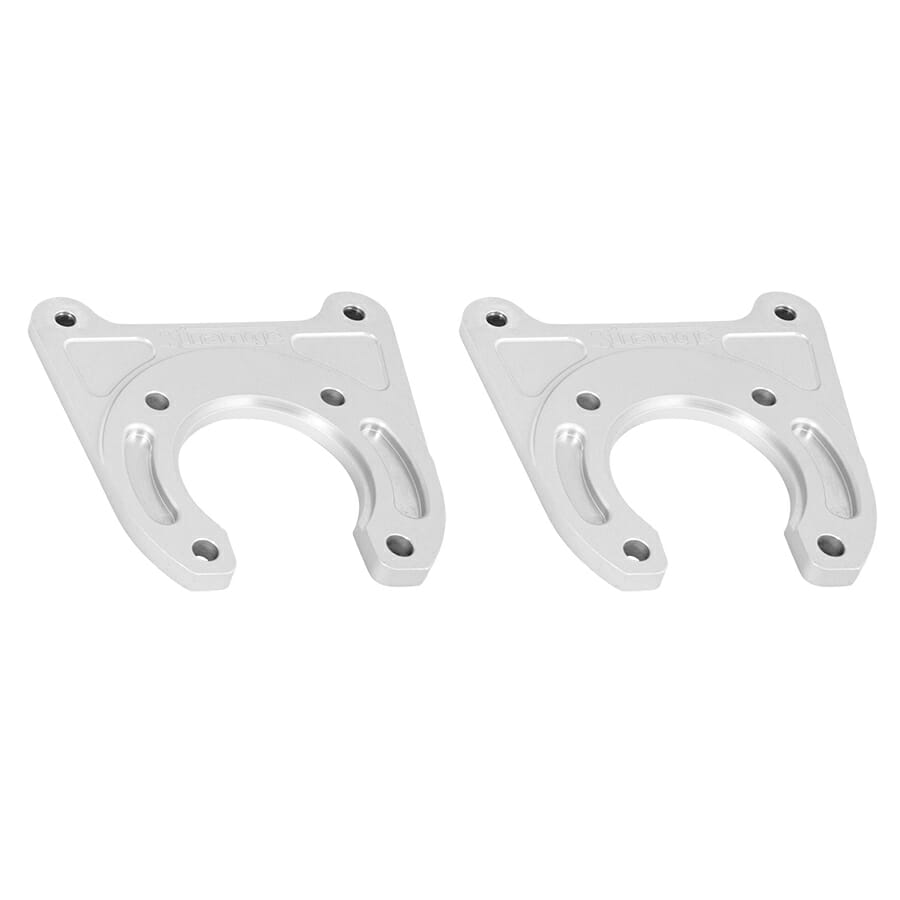

One piece billet aluminum caliper mounts
Caliper mounting bolts, washers & alignment shims
Housing end bolts and washers

* Ultra Lite milling has been redesigned to remove additional weight

Brake Hoses & Lines Are Not Included
Calipers are tapped 1/8″ NPT and supplied with male 3 AN fittings


Pro carbon rear brake kit / H1136 (3.350″) end / 5″ bc / 2.832 offset

Parts List and Installation Guide pdf File
