Designed Specifically For Drag Racing
Application
2 Pc Pro Stock Axles – P1020
9″ / 9 1/2″ Live Axle – L4101

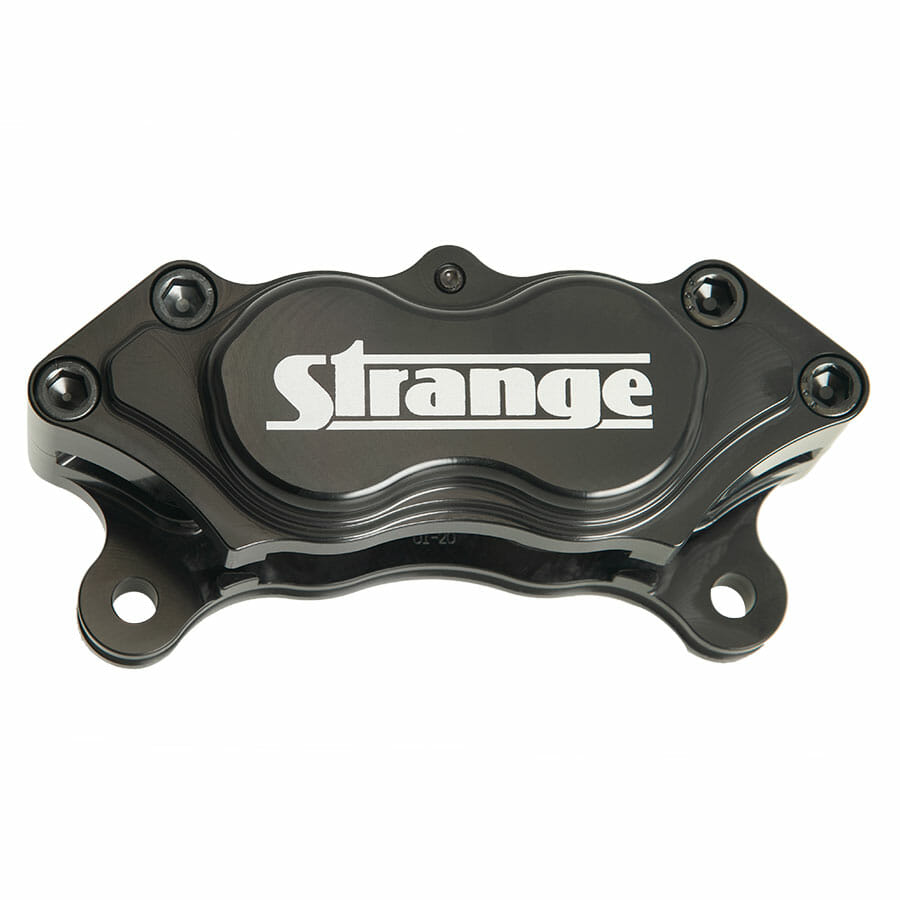

Four Piston Carbon Caliper
• Extremely rigid billet aluminum calipers
• Two piece air gap piston design limits heat transfer
• Inner piston machined from billet stainless steel
• More resistant to deflection than stamped stainless steel
• Outer piston composed of hard anodized aluminum
• Provides exceptional wear characteristics
• Insulates brake fluid from extreme temperatures
• Eliminates heat shields & shims
• 1 3/4″ diameter pistons ensure proper clamping force
• Provides consistent braking with a firm pedal feel
• Mounting bolt holes are on 5.250″ centers
Brake Fitting, Hose and Line Are Not Included
Caliper is tapped 1/8″ NPT – Fitting available separately
Use Teflon® tape or liquid on the pipe threads of the fitting
Leave a few threads from the tip uncoated
This will avoid depositing material inside the caliper
Torque to 25 ft lbs
1/8″ NPT x 3 AN Fittings
Straight……………P2316
45° angle………..P2323
90° angle………..P2322
For Floater kits, Pro Mod Rear,
10 1/2″, 12″ & 12 1/4″ Live Axles – B5040
