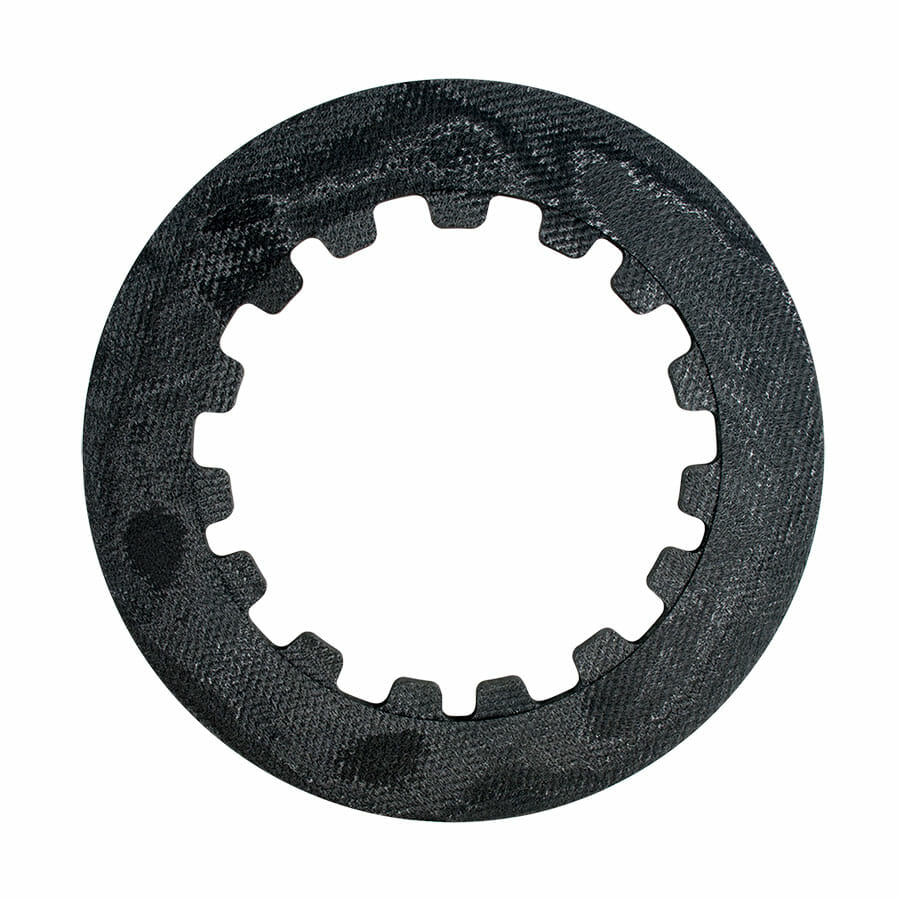

11 1/2″ Carbon Brake Rotor                                                                               For Strange 9 1/2″, 10 1/2″, 12″, and 12 1/4″ Live Axles

/, Drag Race, Brake Kits / Components, Rotors/

11 1/2″ Carbon Brake Rotor                                                                               For Strange 9 1/2″, 10 1/2″, 12″, and 12 1/4″ Live Axles

11 1/2″ Carbon Brake Rotor                                                                               For Strange 9 1/2″, 10 1/2″, 12″, and 12 1/4″ Live Axles

$1,150.00

Part Number: L4050B

Application

Strange Live Axles
9 1/2″, 10 1/2″, 12″, & 12 1/4″

Chrisman Live Axle
Equipped with Strange carbon brakes

Note
For Strange Drop-Out Live Axle – See C1790

Specifications
New – .470″
Discard – .325″

Contamination
Material is easily contaminated by fluids
Keep sprays away from pads and rotors
Once affected, rotors & pads must be baked to remove impurities
Rotors must be removed from any aluminum parts before baking
Bake at 500┬░ for 8 hours or 1000┬░ for 4 hours
Contaminated carbon will smoke or produce odors during this process

Notes
Sold as each
Not Compatible With Other Manufacturer's Carbon Kits



Related Components

Carbon pad… L4050H

Description

11.5″ carbon rotor- ea.

Additional information

Weight 3.20 lbs
