Strange Pro Carbon Rear Brake Kit
For 4 3/4" Bolt Circle Using 5/8" Studs
Fits Late Big Ford Housing Ends


Part Number: C18064UC

Designed Specifically For Drag Racing

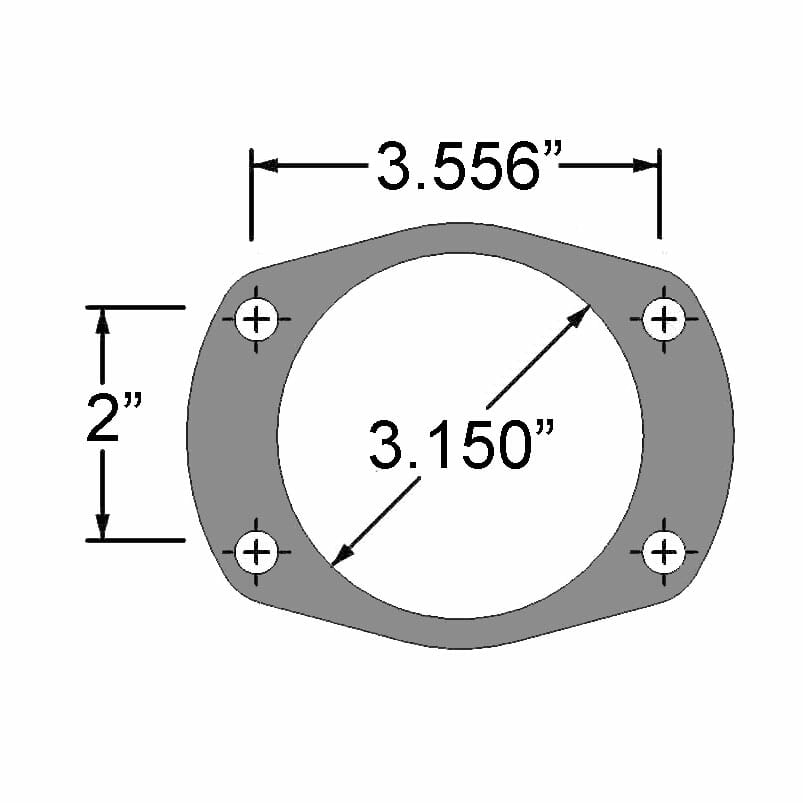

Late Big Ford Housing Ends – H1137
For axles with 2 1/2″ brake offset

The Ultimate in Drag Race Braking Performance
• Maximum rotational weight reduction
• Impervious to brake fade
• Extremely rigid billet aluminum calipers
• Two piece air gap piston design limits heat transfer
• Inner piston machined from billet stainless steel
• More resistant to deflection than stamped stainless steel
• Outer piston composed of hard anodized aluminum
• Provides exceptional wear characteristics
• Insulates brake fluid from extreme temperatures
• Eliminates heat shields & shims
• 1 3/4″ diameter pistons ensure proper clamping force
• Provides consistent braking with a firm pedal feel

Kit Includes

11″ carbon rotors – C1790
Ultra Lite billet aluminum rotor hats *
Aluminum retaining rings with FHSCS screws
Billet aluminum 4 piston carbon brake calipers – B5042
Carbon brake pads – L4050H1 / L4050H2

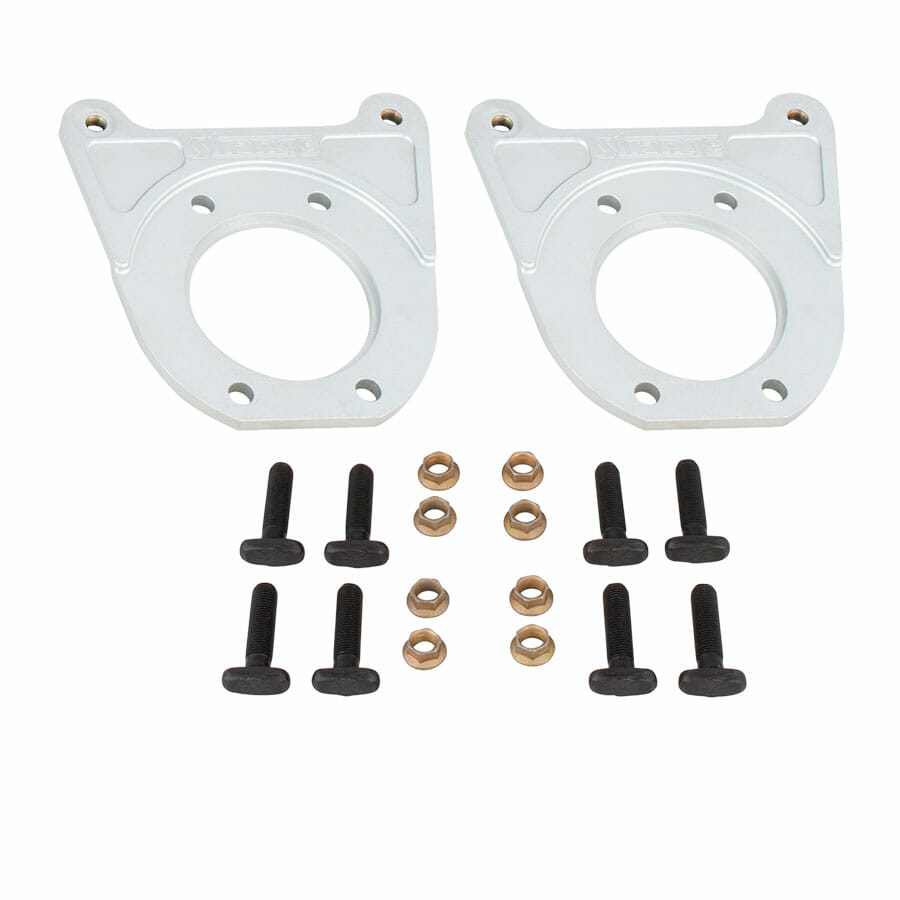

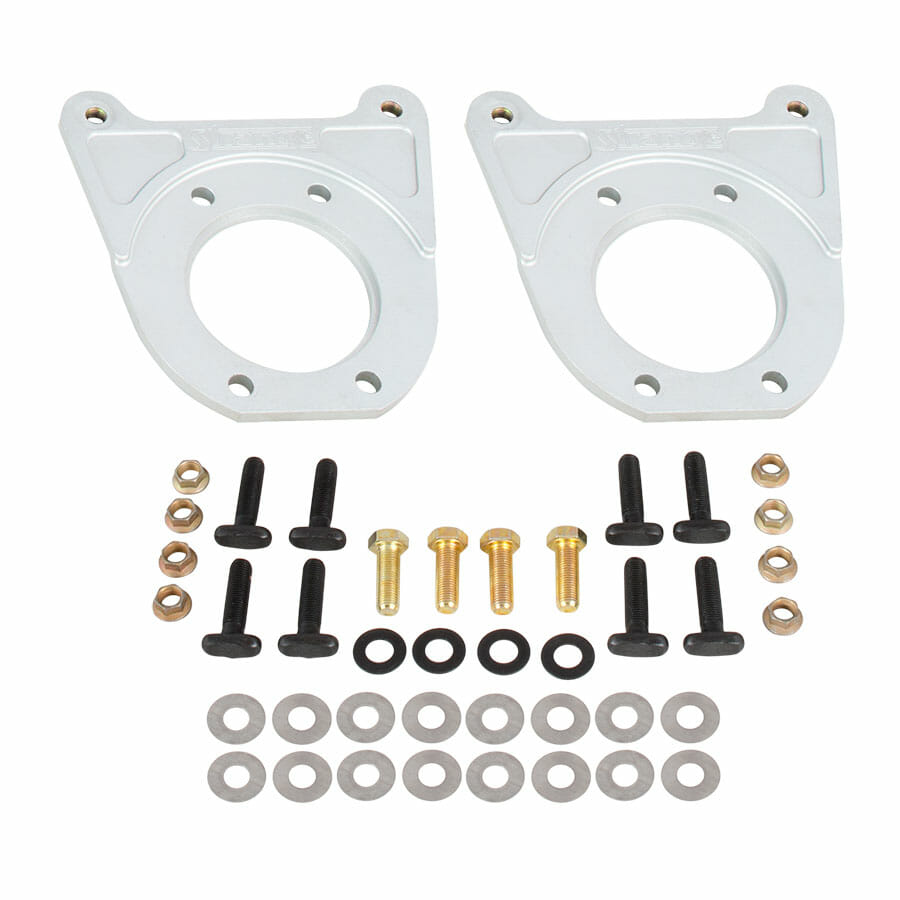

One piece billet aluminum caliper mounts
Caliper mounting bolts, washers & alignment shims
Housing end tee bolts, washers and flanged locking nuts

* Ultra Lite milling has been redesigned to remove additional weight

Brake hoses and lines are not included
Calipers are tapped 1/8″ NPT and supplied with male 3 AN fittings


Pro carbon rear brake kit / Late Big Ford ends / 4 3/4″ bc / 2.50 offset
