Strange Pro Carbon Rear Brake Kit
For 4 3/4" & 5" Bolt Circles
Fits 2012 and Earlier Strange Floater Kits


Part Number: C1209WC

Strange Floater Kits – 2012 & Older
Floater kits were re-designed in late 2012
If unsure of the year – Please contact us

The Ultimate in Drag Race Braking Performance
• Maximum rotational weight reduction
• Impervious to brake fade
• Extremely rigid billet aluminum calipers
• Two piece air gap piston design limits heat transfer
• Inner piston machined from billet stainless steel
• More resistant to deflection than stamped stainless steel
• Outer piston composed of hard anodized aluminum
• Provides exceptional wear characteristics
• Insulates brake fluid from extreme temperatures
• Eliminates heat shields & shims
• 1 3/4″ diameter pistons ensure proper clamping force
• Provides consistent braking with a firm pedal feel

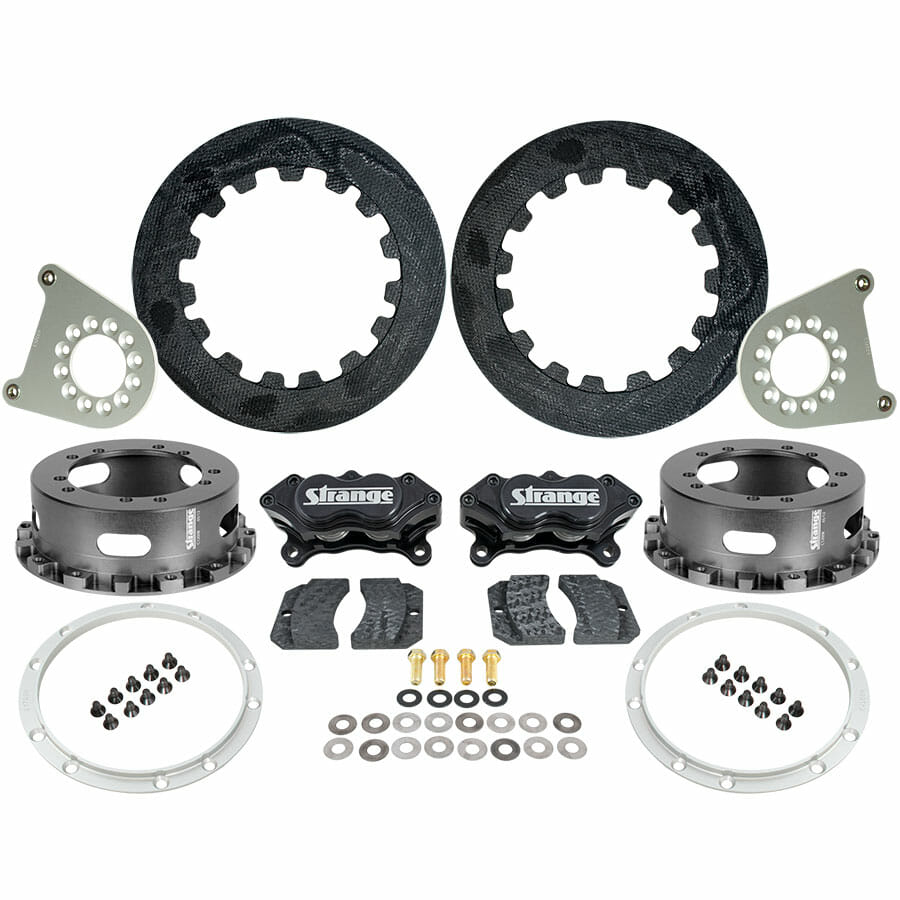

Kit Includes

11″ carbon rotors – C1790
4 3/4″ & 5″ bolt circle billet aluminum rotor hats
Retaining ring FHSCS screws
Billet aluminum 4 piston carbon brake calipers – B5040
Carbon brake pads – L4050H
One piece billet aluminum caliper mounts
Mounting hardware & shims

Brake hoses and lines are not included
Calipers are tapped 1/8″ NPT and supplied with male 3 AN fittings


Carbon brake kit for Strange 2012 and earlier 4 3/4″ & 5″ B.C. floater kit
