Application
Symmetrical Housing Ends
H1131 or equivalent
For axles with 2.832″ brake offset
The Ultimate in Drag Race Braking Performance
• Maximum rotational weight reduction
• Impervious to brake fade
• Extremely rigid billet aluminum calipers
• Two piece air gap piston design limits heat transfer
• Inner piston machined from billet stainless steel
• More resistant to deflection than stamped stainless steel
• Outer piston composed of hard anodized aluminum
• Provides exceptional wear characteristics
• Insulates brake fluid from extreme temperatures
• Eliminates heat shields & shims
• 1 3/4″ diameter pistons ensure proper clamping force
• Provides consistent braking with a firm pedal feel
Kit Includes
11″ carbon rotors – C1790
Ultra Lite billet aluminum rotor hats *
Aluminum retaining rings with FHSCS screws
Billet carbon calipers – B5042
Carbon brake pads – L4050H1 / L4050H2

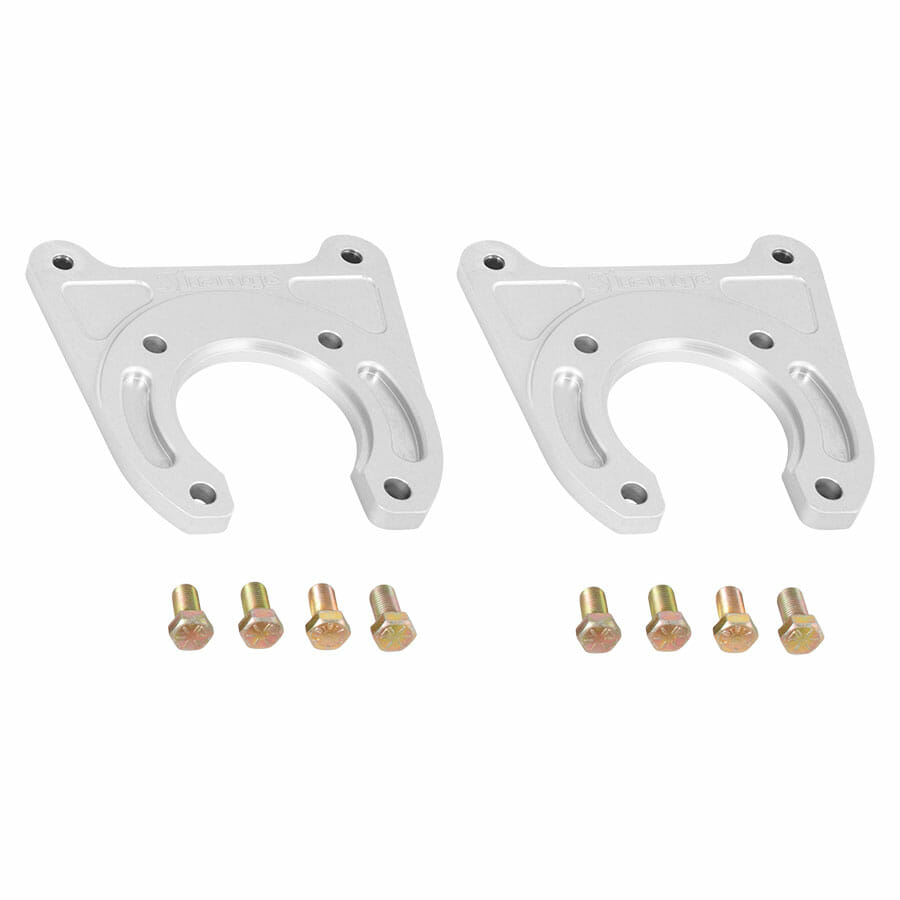

One piece billet aluminum caliper mounts
Caliper mounting bolts, washers & alignment shims
Housing end bolts and washers
* Ultra Lite milling has been redesigned to remove additional weight
Brake Hoses & Lines Are Not Included
Calipers are tapped 1/8″ NPT and supplied with male 3 AN fittings
